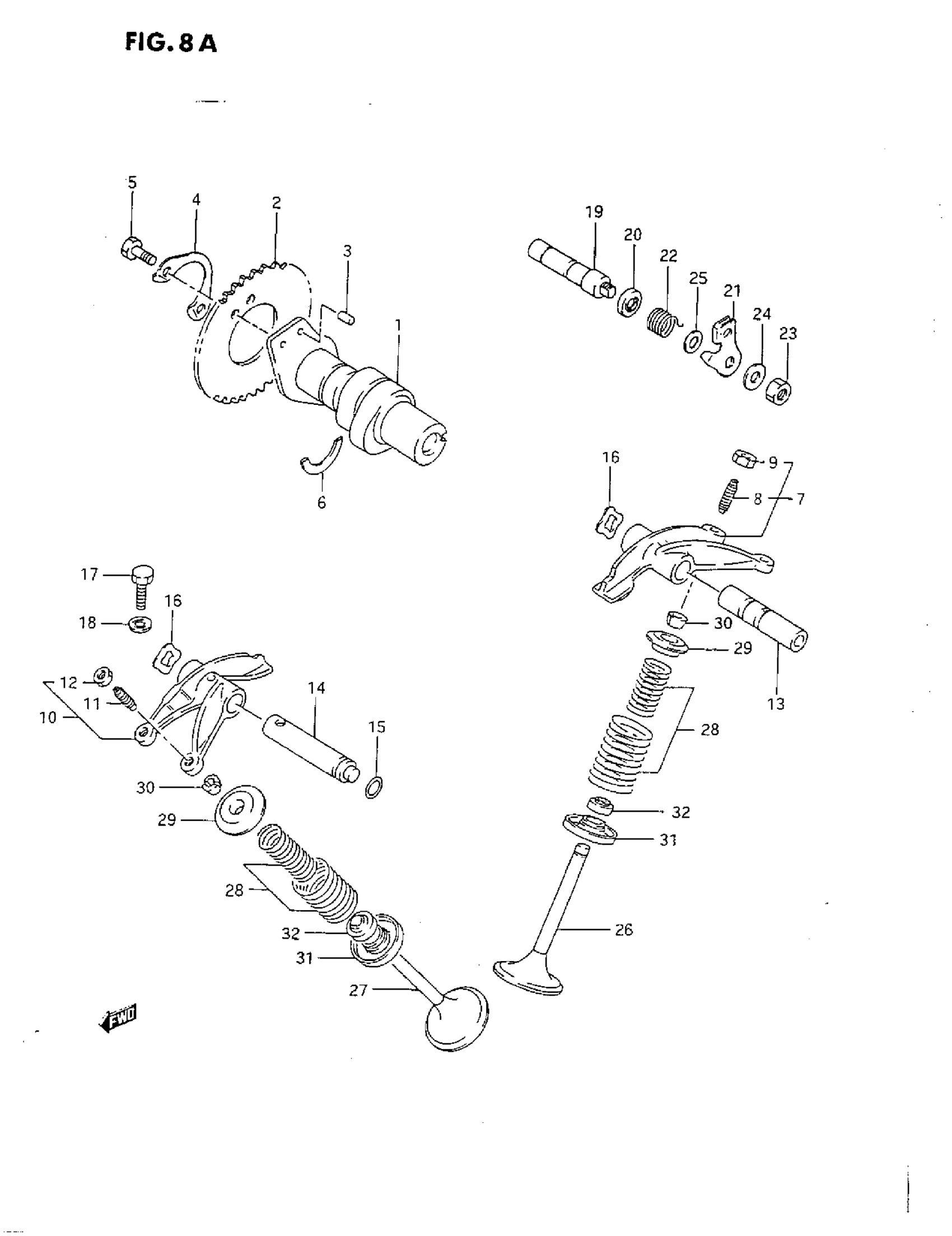

Suzuki DR650S (1993) CAM SHAFT-VALVE.(R) Diagram

#

Description
Price

1

CAM SHAFT

12711-12D00

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

BOLT (6X12.5)

09111-06027

$1.72

6

C RING

09390-25003

$2.48

7

ARM, VALVE ROCKER INTAKE

12840-12D00

$105.82

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM, VALVE ROCKER EXHAUST

12850-37401

$98.40

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, ROCKER ARM IN | L:73

12861-12D00

$29.25

14

SHAFT, ROCKER ARM EX | L:78.5

12871-14A00

$24.87

15

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

16

WASHER

09164-12018

$1.49

17

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

18

GASKET

09168-06023

$2.35

19

SHAFT, DECOMP

12941-12D10

Unavailable

20

OIL SEAL

09282-10014

$6.70

21

LEVER, DECOMP SHAFT

12942-12D11

Unavailable

22

SPRING This part replaces 09448-17029.

09448-17029-XC0

$6.53

23

NUT This part replaces 08310-00083.

08310-0008A

$1.84

24

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

25

WASHER

09160-08074

Unavailable

26

VALVE, INTAKE

12911-12D00

Unavailable

27

VALVE, EXHAUST

12912-37400

$82.02

28

SPRING SET, VALVE

12920-37402

$18.02

29

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

30

COTTER, VALVE

12932-45010

$2.37

31

SEAT,VALVE SPRI This part replaces 12933-37400.

12933-37401

$3.60

32

OIL SEAL

09289-07002

$7.98
