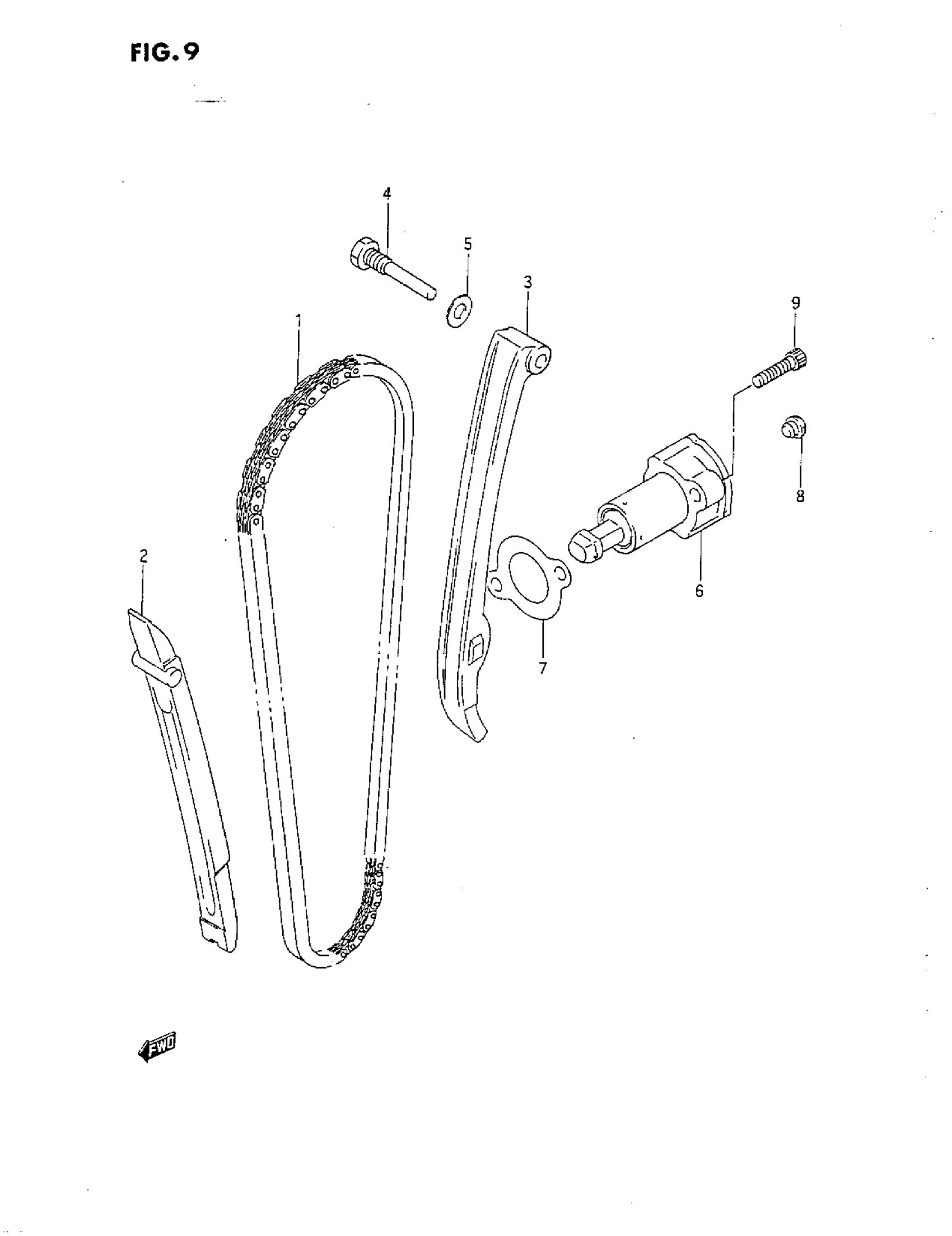

Suzuki DR650S (1993) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE | 1241F

12760-37400

Unavailable

2

GUIDE, CAM CHAIN

12771-37400

$59.07

3

TENSIONER,CAM C This part replaces 12811-37401.

12811-37402

$49.38

4

BOLT

12812-32410

$4.52

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-33C10

$140.97

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

8

PLUG

12839-38200

$2.08

9

BOLT | MODEL N/P This part replaces 07110-06255.

07130-0625B

$3.04

9

BOLT | MODEL R This part replaces 07130-06253.

07130-0625B

$3.04
