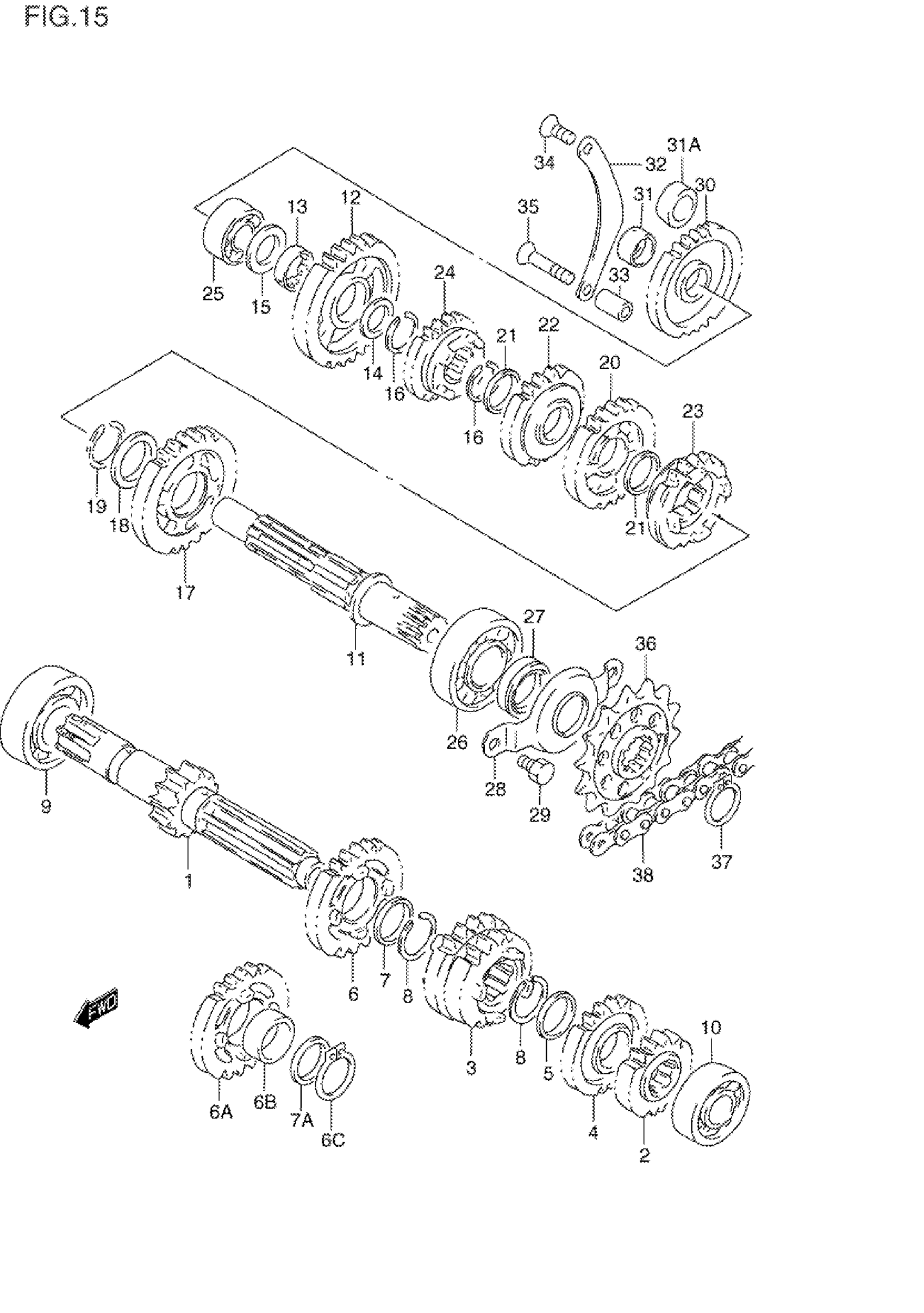

Suzuki DR350SET (1996) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT (NT:12) | MODEL L/M This part replaces 24120-14D01.

24120-14D03

Unavailable

1

COUNTERSHAFT (NT:12) | MODEL N/P/R/S/T

24120-14D03

Unavailable

2

GEAR, 2ND DRIVE (NT:15) This part replaces 24221-14D00.

24221-14D01

Unavailable

3

GEAR, 3/4TH DRIVE (NT:18/18)

24231-14D00

Unavailable

4

GEAR, 5TH DRIVE (NT:21)

24251-14D00

Unavailable

5

SHIM This part replaces 08211-22261.

09181-22111

$3.75

6

GEAR, 6TH DRIVE (NT:23) | MODEL L/M

24260-14D00

Unavailable

6A

GEAR, 6TH DRIVE (NT:23) | MODEL N/P/R/S/T

24261-14D02

Unavailable

6B

BUSH, 6TH DRIVE GEAR | MODEL N/P/R/S/T

09300-22008

$14.82

6C

CIRCLIP | MODEL N/P/R/S/T This part replaces 08331-31226.

08331-31229

$2.48

7

WASHER (22X28X1.0) | MODEL L/M This part replaces 08211-22281.

09181-22139

$3.48

7A

WASHER, 6TH DRIVE | MODEL N/P/R/S/T This part replaces 08211-22301.

09181-22167

$2.96

8

CIRCLIP | MODEL L/MMODEL N/P/R/S/T

09380-22006

$3.10

9

BEARING (20X52X15) | MODEL L/M/N/P This part replaces 09262-20065.

09262-20145

$37.70

9

BEARING (20X52X15) | MODEL R/S/T This part replaces 09262-20116.

09262-20145

$37.70

10

BEARING (17X40X12) | MODEL L/M/N This part replaces 09262-17018.

09262-17027

$35.28

10

BEARING, LH | MODEL P

09262-17027

$35.28

10

BEARING (17X40X12) | MODEL R/S/T This part replaces 09262-17018.

09262-17027

$35.28

11

DRIVESHAFT | MODEL L/M This part replaces 24130-14D11.

24130-14D14

$216.72

11

DRIVESHAFT | MODEL N/P/R/S This part replaces 24130-14D13.

24130-14D14

$216.72

11

DRIVESHAFT | MODEL T

24130-14D14

$216.72

12

GEAR, 1ST DRIVEN (NT:29) | MODEL L/M/N/P/R/S This part replaces 24311-14D00.

24311-14D01

Unavailable

12

GEAR, 1ST DRIVEN (NT:30) | MODEL T

24311-15D00

Unavailable

13

BUSH

24312-14D00

$21.77

14

WASHER, LH

08211-17322

$3.15

15

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.96

16

CIRCLIP

09380-22006

$3.10

17

GEAR, 2ND DRIVEN (NT:26)

24320-14D00

Unavailable

18

WASHER, 5TH DRIVE This part replaces 08211-25341.

09181-25167

$3.12

19

CIRCLIP

09380-25010

$2.91

20

GEAR, 3RD DRIVEN CNT:24) | MODEL L/M/N This part replaces 24331-14D00.

24331-14D01

Unavailable

20

GEAR, 3RD DRIVEN (NT:24) | MODEL P/R/S/T

24331-14D01

Unavailable

21

WASHER (22X28X1.0) This part replaces 08211-22281.

09181-22139

$3.48

22

GEAR, 4TH DRIVEN (NT:20)

24341-14D00

Unavailable

23

GEAR, 5TH DRIVEN (NT:20) This part replaces 24351-14D00.

24351-14D01

Unavailable

24

GEAR, 6TH DRIVEN (NT:19) | MODEL L/M/N This part replaces 24361-14D00.

24361-14D01

Unavailable

24

GEAR, 6TH DRIVEN (NT:19) | MODEL P/R/S/T

24361-14D01

Unavailable

25

BEARING, RH

09267-17003

$90.35

26

BEARING, LH

09262-22024

$70.13

27

OIL SEAL

09283-22025

$13.87

28

HOLDER, OIL SEAL

24751-14D00

$8.83

29

BOLT | MODEL L/M/N/P This part replaces 01107-06126.

01500-0612A

$1.78

29

BOLT | MODEL R/S/T This part replaces 01500-06123.

01500-0612A

$1.78

30

GEAR, KICK IDLE (NT:27) | MODEL L/M/N/P

26261-14D10

$73.80

31

BUSH, KICK STARTER IDLE GEAR | MODEL L/M/N/P

26262-14D00

$12.10

31A

SPACER, KICK (17X25X10.5) | MODEL R/S/T

09180-17004

$6.63

32

RETAINER, KICK IDLE GEAR

26264-14D00

$13.05

33

.SPACER (6.5X12X21) This part replaces 09180-06229.

09180-06314

$4.25

34

SCREW | MODEL L/M/N/P/R

02122-06167

$1.49

34

SCREW | MODEL S/T This part replaces 02122-06163.

02122-0616A

$1.49

35

SCREW | MODEL L/M/N/P/R This part replaces 02122-06356.

02122-0635B

$3.33

35

SCREW | MODEL S/T This part replaces 02122-06353.

02122-0635B

$3.33

36

SPROCKET, ENGINE (NT:14) | MODEL L/M/N/P This part replaces 27511-14300.

27511-47D00

$30.15

36

SPROCKET (NT:15) | MODEL R/S/T

27511-14320

Unavailable

37

CIRCLIP

09380-22012

$2.84

38

CHAIN, DRIVE (DID520V7x108LE) | MODEL L/M/N/P/R/S This part replaces 27600-05C10-108.

27600-01C10-108

Unavailable

38

CHAIN, DRIVE (DID520V7X108LE) | MODEL T

27600-01C10-108

Unavailable
