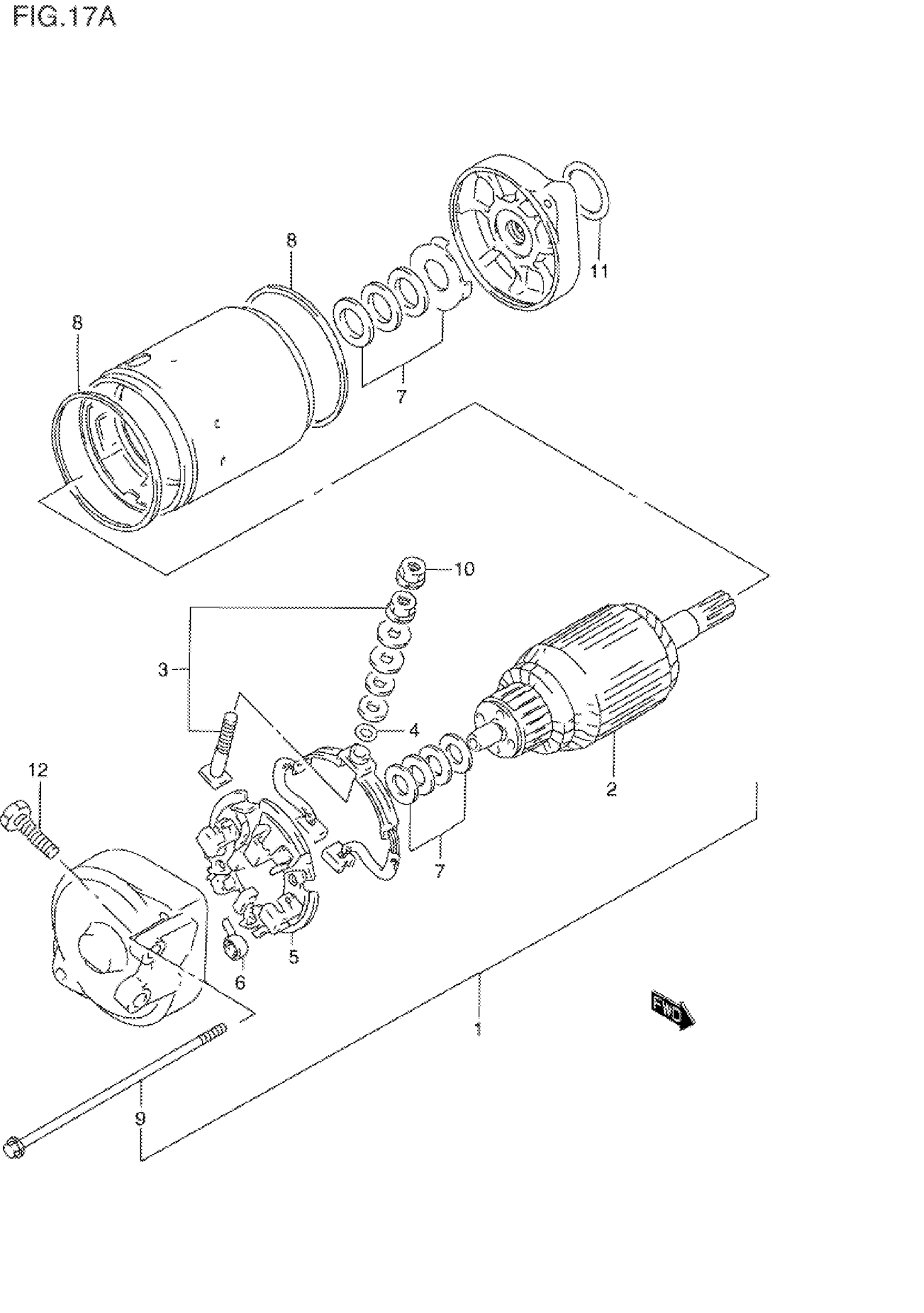

Suzuki DR350SET (1996) STARTING MOTOR (MODEL R/S) Diagram

#

Description

Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 9

31100-47D01

Unavailable

2

ARMATURE

31310-15D00

Unavailable

3

TERMINAL SET, BRUSH

31130-38B00

$69.35

4

O RING

31143-49040

$3.71

5

HOLDER SET, BRUSH

31132-38B00

$69.35

6

SPRING, BRUSH

31135-38B00

$5.40

7

WASHER SET

31170-19B10

$12.57

8

O RING This part replaces 31264-31300.

31264-32E00

$6.68

9

BOLT

31280-26D00

$20.45

10

NUT This part replaces 08361-35066.

08361-3506A

$1.80

11

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

12

BOLT, FRONT BRG HOUSING This part replaces 07130-06203.

07130-0620B

$3.05

13

REFER TO FIG.17B(D-9) FOR

SPECIAL NOTE

Unavailable
