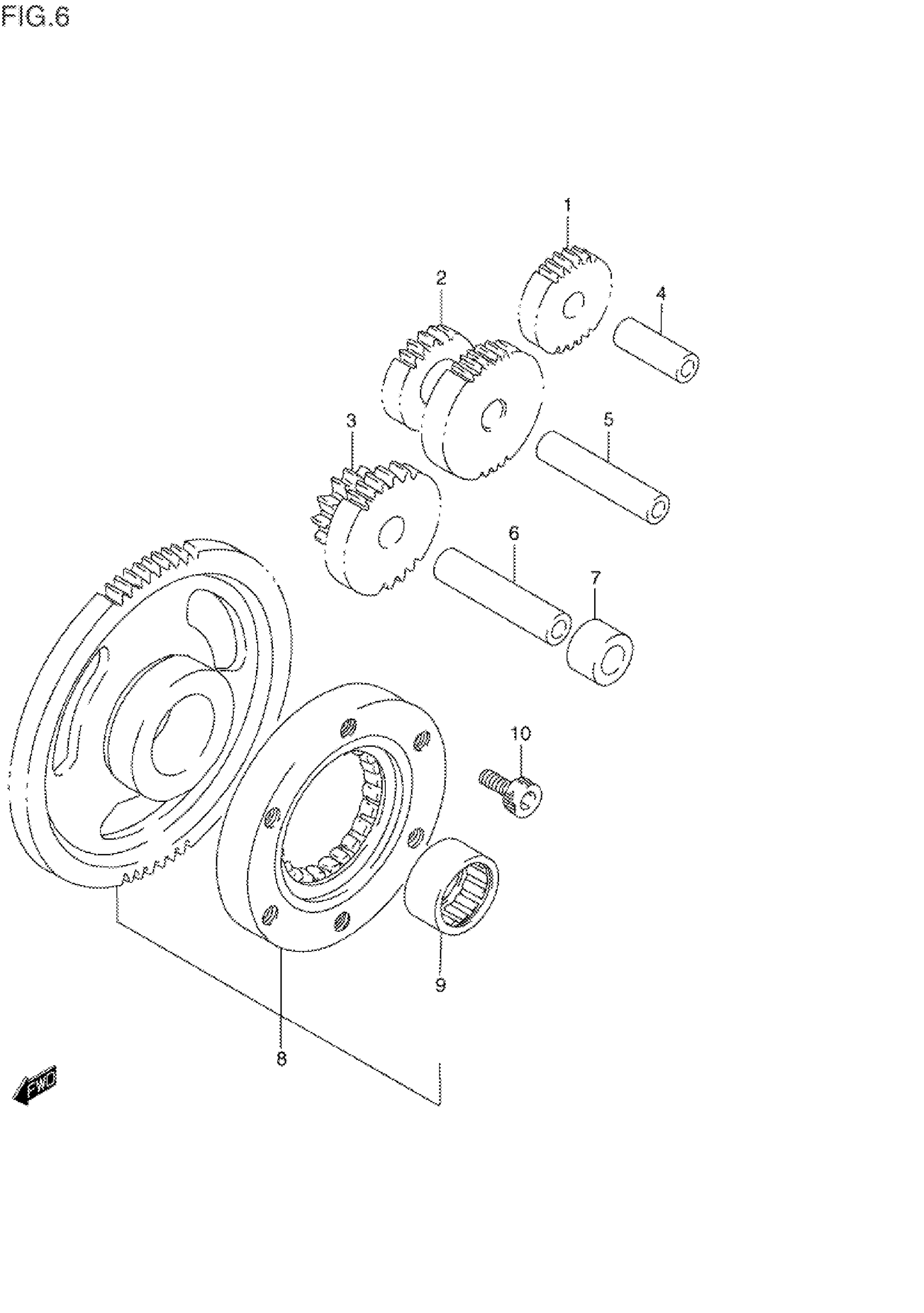

Suzuki DR350SET (1996) STARTER CLUTCH (MODEL R/S/T) Diagram

#

Description

Price

1

GEAR, STARTER IDLE NO.1

12611-15D01

Unavailable

2

GEAR, STARTER IDLE NO.2

12612-15D00

Unavailable

3

GEAR, STARTER IDLE NO.3

12613-15D00

Unavailable

4

PIN (10x32)

09206-10012

Unavailable

5

PIN (10x55.5)

09206-10011

Unavailable

6

PIN (12x55.5)

09206-12003

$16.00

7

SPACER This part replaces 09180-12066.

09180-12139

$8.07

8

CLUTCH SET,STAR | Includes Item(s) 9 This part replaces 12600-47820.

12600-47821

$360.90

9

BEARING (27x32x18)

09263-29008

$47.88

10

BOLT This part replaces 07130-08163.

07130-0816A

$3.16
