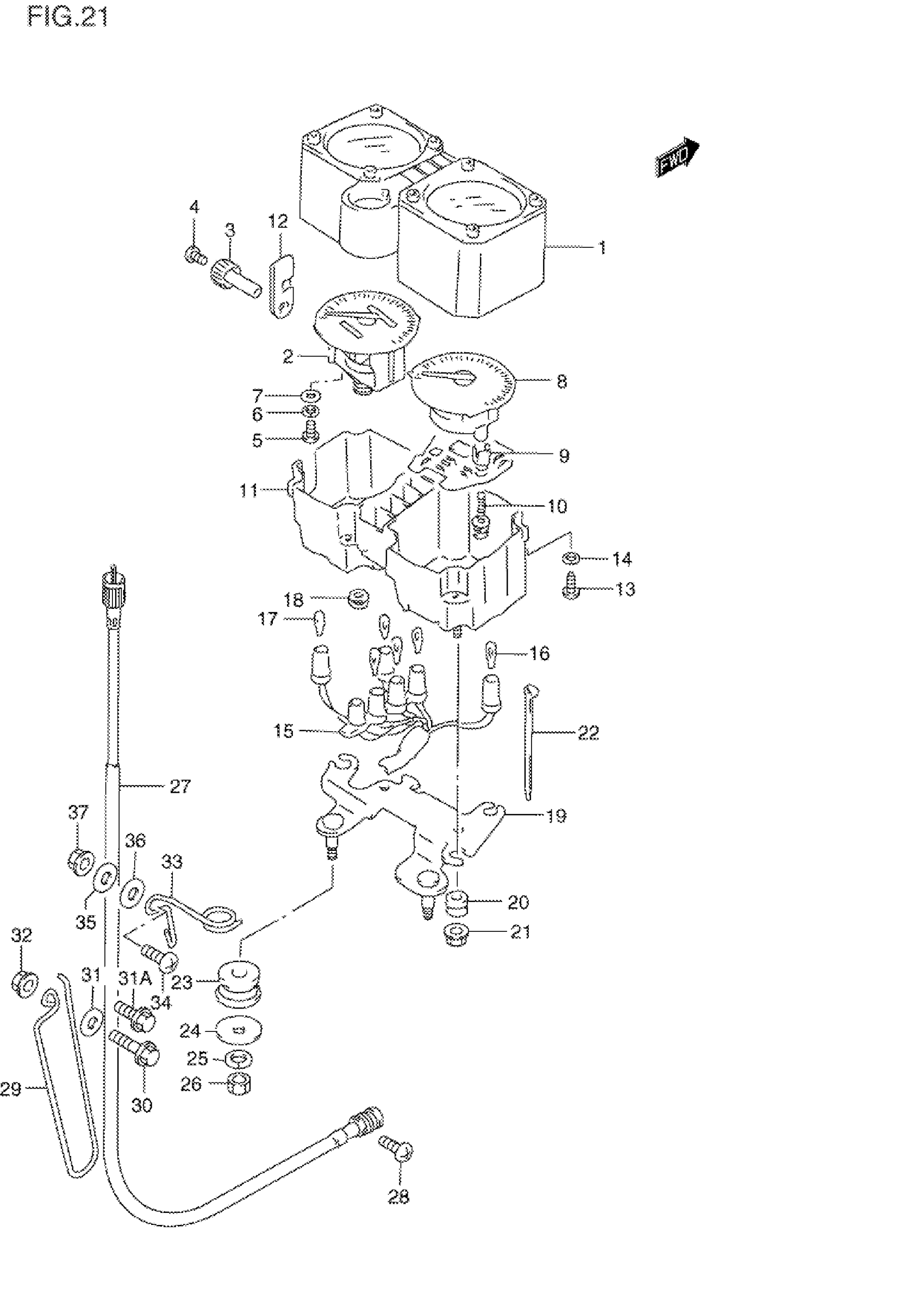

Suzuki DR350SET (1996) SPEEDOMETER Diagram

#

Description
Price

1

HOOD, METER This part replaces 34150-44B40.

34150-14D20

Unavailable

2

SPEEDOMETER (MILE/KILO)

34110-14D00

Unavailable

3

KNOB, TRIP

34124-44B30

$10.80

4

SCREW

34184-12D00

$2.93

5

SCREW This part replaces 02112-03103.

02112-0310B

$2.72

6

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

7

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

8

TACHOMETER

34210-14D00

Unavailable

9

SPACER

34187-14A00

Unavailable

10

SCREW This part replaces 34283-14A00.

02112-74253

Unavailable

11

CASE, METER

34111-44B10

Unavailable

12

GROMMET

34196-14A00

Unavailable

13

SCREW | MODEL L/M/N/P This part replaces 03112-05129.

03111-0512A

$1.49

13

SCREW | MODEL R/S/T This part replaces 03112-05123.

03111-0512A

$1.49

14

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

15

SOCKET, METER This part replaces 34170-14D00.

34170-44B11

Unavailable

16

BULB (12V,3W)

09471-12085

$5.01

17

BULB (12V,1.7W)

09471-12100

$4.13

18

CAP

34194-14A00

Unavailable

19

BRACKET, METER

34950-14D00

Unavailable

20

.CUSHION

34996-43410

$4.35

21

NUT | MODEL L/M/N/P/R/S This part replaces 34185-14A00.

08310-0005A

$1.84

21

NUT | MODEL T This part replaces 08310-00053.

08310-0005A

$1.84

22

CLAMP | MODEL L/M/N/P/R This part replaces 34954-16730.

09404-10417

$2.72

22

CLAMP | MODEL S/T

09404-10417

$2.72

23

CUSHION

34956-31001

$4.37

24

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

25

LOCK WASHER | MODEL L/M/N/P This part replaces 08321-21084.

08321-0108A

$1.84

25

LOCK WASHER | MODEL R/S/T

09162-08008

$2.06

26

NUT | MODEL L/M/N/P This part replaces 08310-12085.

08310-0008A

$1.84

26

NUT | MODEL R/S/T This part replaces 08310-00083.

08310-0008A

$1.84

27

CABLE ASSY,SPEE | MODEL L/M/N/P This part replaces 34910-14D11.

34910-12E01

$48.67

27

CABLE ASSY,SPEE | MODEL R/S This part replaces 34910-14D12.

34910-12E01

$48.67

27

CABLE ASSY,SPEE | MODEL T This part replaces 34910-14D13.

34910-12E01

$48.67

28

SCREW | MODEL L/M/N/P

02112-05164

$2.63

28

.SCREW | MODEL R/S/T This part replaces 02112-05163.

02112-0516A

$1.49

29

GUIDE METER CABLE NO.2

34938-14D30

$10.63

30

BOLT | MODEL L/M/N/P

01550-06207

$2.30

30

BOLT | MODEL R/S This part replaces 01550-06203.

01550-0620A

$1.97

31

WASHER (6.5X20X1.6) | MODEL L/M/N/P This part replaces 09160-06020.

09160-06066

$1.89

31

WASHER (6.5X20X1.6) | MODEL R/S

09160-06066

$1.89

31A

BOLT | MODEL T

09116-06167

$2.19

32

NUT | MODEL L/M/N/P This part replaces 09159-06017.

08319-31067

$2.03

32

NUT | MODEL R/S/T This part replaces 08316-10063.

08316-1006B

$2.50

33

GUIDE, CABLE NO.1 This part replaces 34938-14D20.

34938-14D21

$8.65

34

SCREW | MODEL L/M/N/P

02142-06167

$1.49

34

SCREW | MODEL R/S/T This part replaces 02142-06163.

02142-0616A

$1.49

35

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

36

WASHER (6.3X16X1)

09169-06053

$1.49

37

.NUT | MODEL L/M/N/P

08310-00067

$2.13

37

NUT | MODEL R/S/T This part replaces 08310-00063.

08310-0006A

$1.84
