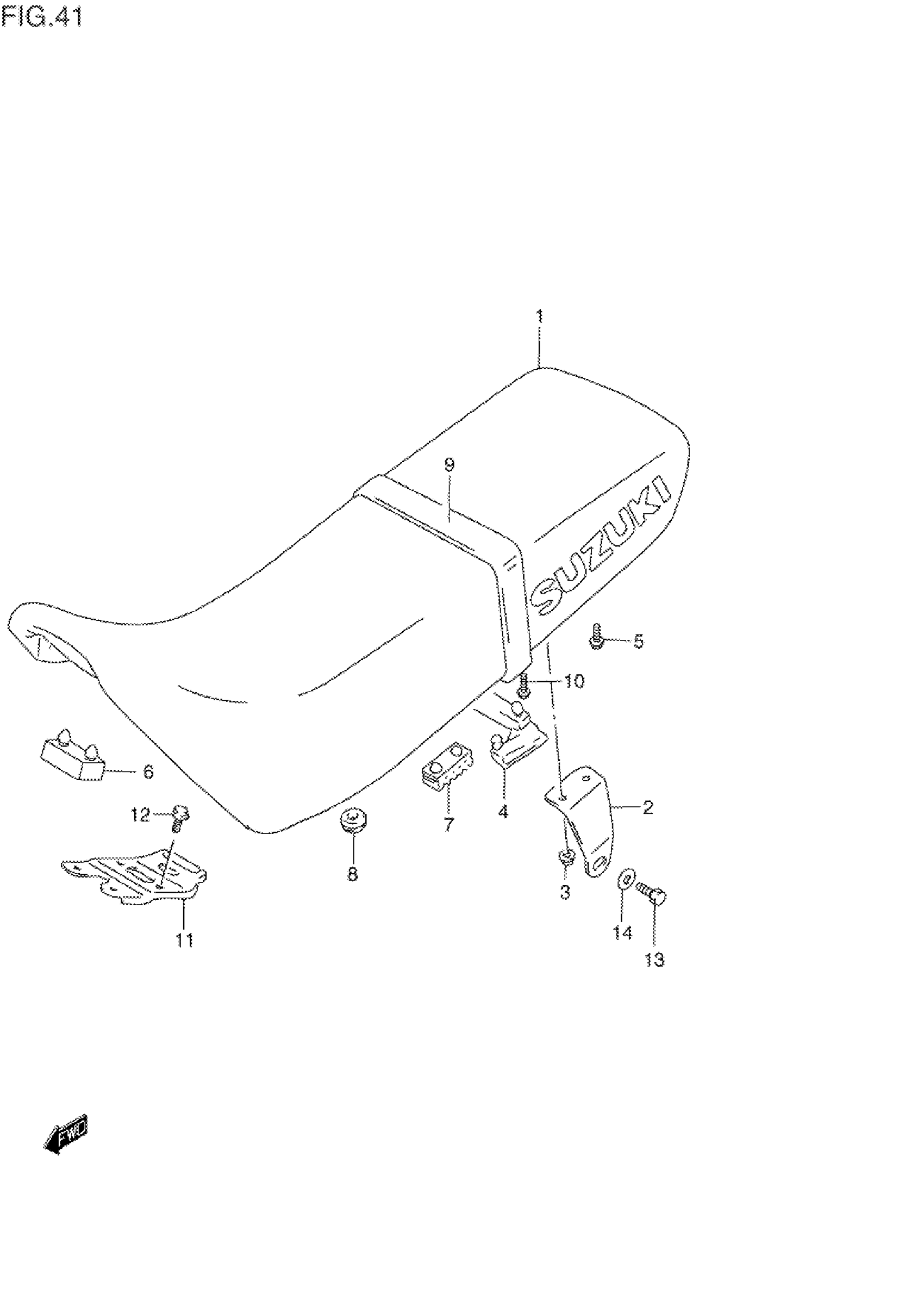

Suzuki DR350SET (1996) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE/WHITE) | MODEL L/M/N/P/R/S

45100-15D10-9DD

Unavailable

1

SEAT ASSY (PURPLE/WHITE) | MODEL T; Includes Item(s) 2 - 10

45100-15D10-E5J

Unavailable

2

BRACKET, RH

45116-14D00

Unavailable

2

BRACKET, LH

45117-14D00

Unavailable

3

NUT This part replaces 08316-10063.

08316-1006B

$2.50

4

CUSHION, BRACKET

45255-14D00

Unavailable

5

BOLT, PLUG | MODEL L/M/N/P

01550-06107

$2.80

5

BOLT | MODEL R/S/T This part replaces 01550-06103.

01550-0610A

$1.97

6

CUSHION, FRONT

09321-08006

$2.90

7

CUSHION, CENTER

45149-31300

$3.56

8

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

9

NO DESCRIPTION AVAILABLE | MODEL L/M/N/P/R/S This part replaces 45180-15D10-4UZ.

45180-15D10-S04

Unavailable

9

BAND, SEAT (PURPLE) | MODEL T

45180-15D10-R32

Unavailable

10

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

11

PLATE, SEAT SUPPORT FRONT | MODEL L/M This part replaces 45120-15D00.

45120-15D01

Unavailable

11

PLATE, SEAT SUPPORT FRONT | MODEL N/P/R/S/T

45120-15D01

Unavailable

12

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

13

BOLT | MODEL L/M/N/P This part replaces 01107-08125.

01500-0812A

$2.28

13

BOLT (8X12) | MODEL R/S/T This part replaces 01550-08123.

01550-0812A

$2.32

14

WASHER | MODEL L/M/N/P This part replaces 08322-11084.

08322-0108A

$1.92
