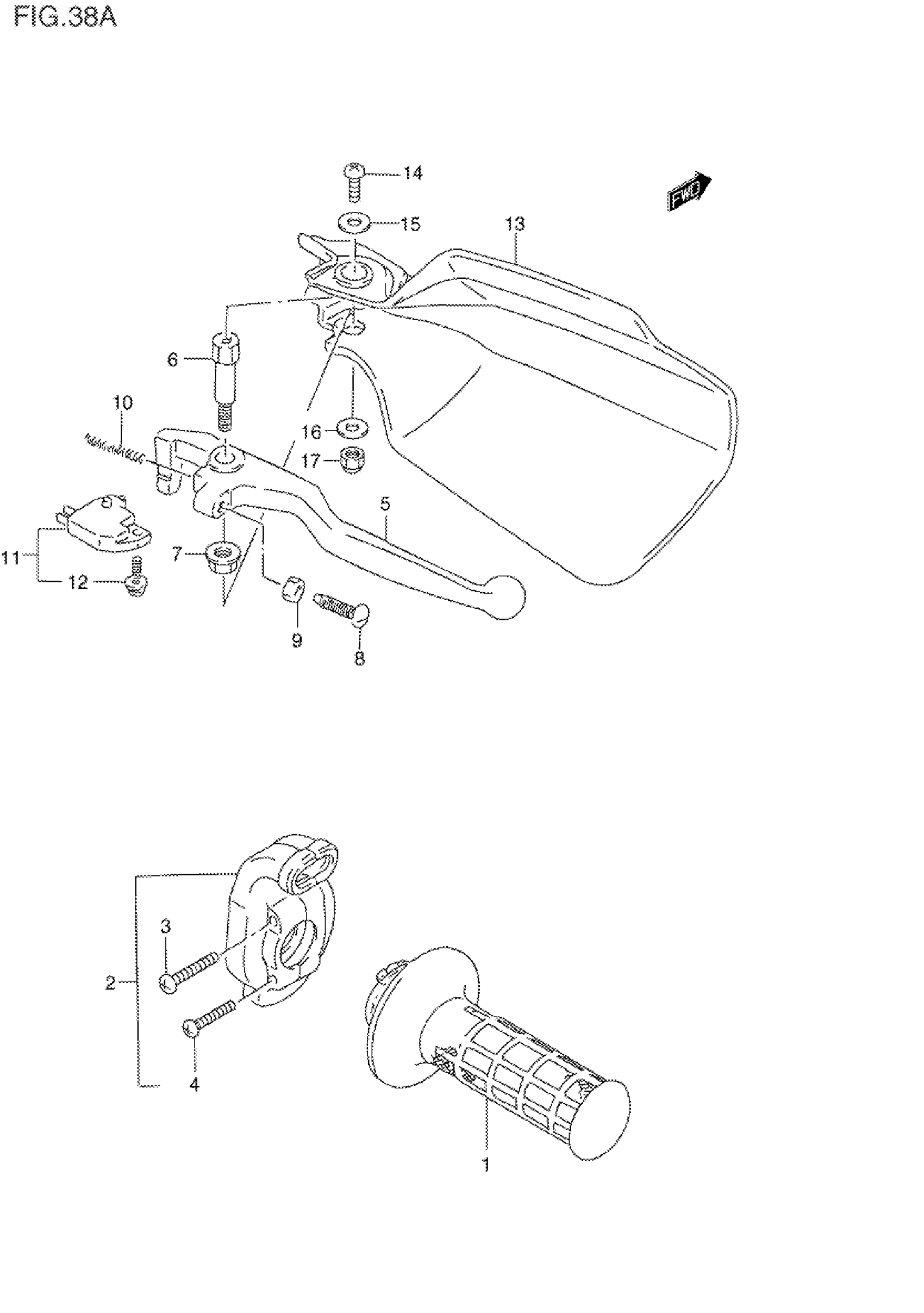

Suzuki DR350SET (1996) RIGHT HANDLE LEVER (MODEL N/P/R/S/T) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-14D11

$50.22

2

CASE ASSY THROTTLE | Includes Item(s) 3 - 4

57100-14D00

$93.58

3

SCREW (5X25)

09125-05066

$1.52

4

SCREW This part replaces 02112-05205.

02112-0520B

$1.94

5

LEVER, BRAKE

57421-03D00

$14.17

6

SCREW

57431-05D00

$14.50

7

.NUT This part replaces 08319-21068.

08319-2106A

$1.97

8

BOLT, ADJUST

57431-14511

$5.71

9

NUT This part replaces 08310-12055.

08310-0005A

$1.90

10

SPRING, RETURN

57318-14502

$4.28

11

SWITCH ASSY,FR BRAKE | Includes Item(s) 12 This part replaces 57460-17C00.

57460-14J02

$36.79

12

SCREW

57465-17C00

$2.37

13

COVER, KNUCKLE RH (BLUE) | MODEL N/P/R/S

57341-05D00-0NF

$45.43

13

COVER, KNUCKLE RH (PURPLE) | MODEL T

57341-05D00-Z16

$53.13

14

SCREW (5X10) | MODEL N/P

09125-05042

$2.04

14

SCREW (5X10) | MODEL R/S/T

02142-05107

$1.15

15

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.33

16

.WASHER (6.5X16X1.6) This part replaces 09160-06042.

09160-06130

$1.97

17

.NUT This part replaces 08319-21068.

08319-2106A

$1.97
