1996 Suzuki DR350SET Rear Wheel Diagram

← All diagrams

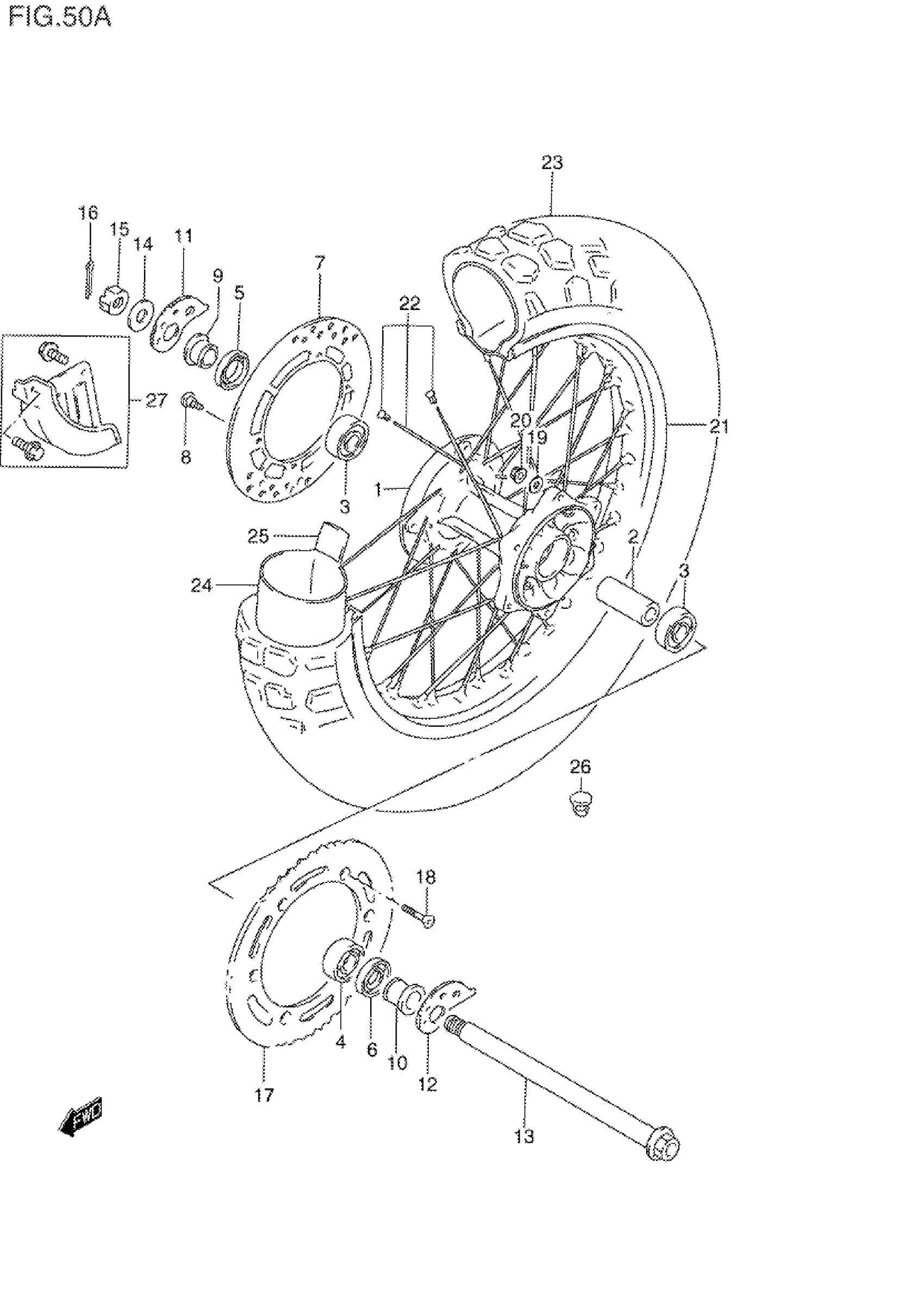

Find the part on the Rear Wheel diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki DR350SET Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL

64111-14D10

1
Out of stock

2

SPACER, BEARING

64731-14D00

1
Out of stock

3

BEARING, RH This part replaces 08123-60047.

08133-60047

2
Out of stock

4

BEARING This part replaces 08123-62047.

08123-6204B

1
Out of stock

5

SEAL, OIL,RH

09282-26001

1
Out of stock

6

OIL SEAL (26X47X5)

09283-26019

1
Out of stock

7

DISC, REAR BRAKE

69211-03D10

1
Out of stock

8

BOLT This part replaces 59421-03A10.

09106-08155

4
Out of stock

9

SPACER, AXLE RH

64741-14D00

1
Out of stock

10

SPACER, AXLE LH

64751-14D00

1
Out of stock

11

ADJUSTER, CHAIN RH (T:4.0)

61410-14D10

1
Out of stock

12

ADJUSTER, CHAIN LH (T:4.0)

61421-14D10

1
Out of stock

13

AXLE, REAR (L:283.5)

64711-15D50

1
Out of stock

14

WASHER

09160-19022

1

$4.74

In stock

15

NUT This part replaces 08314-40183.

08314-4018A

1
Out of stock

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

17

1

$81.47

In stock

18

SCREW

09120-08004

6
Out of stock

19

WASHER This part replaces 08322-01083.

08322-0108A

6
Out of stock

20

NUT

08319-31087

6
Out of stock

21

RIM, REAR WHEEL (2.15x18)

65311-08D00

1
Out of stock

22

SPOKE ASSY, REAR WHEEL

65320-03D10

1
Out of stock

23

TIRE, REAR (110/90-18)

65110-15D50

1
Out of stock

24

TUBE ASSY, WHEEL INNER This part replaces 65200-42AA0.

65200-42AA1

1
Out of stock

25

PROTECTOR, INNER TUBE

65261-15D00

1
Out of stock

26

CAP, BEAD STPPER

09250-08013

1

$2.92

In stock

27

1

$28.35

In stock
