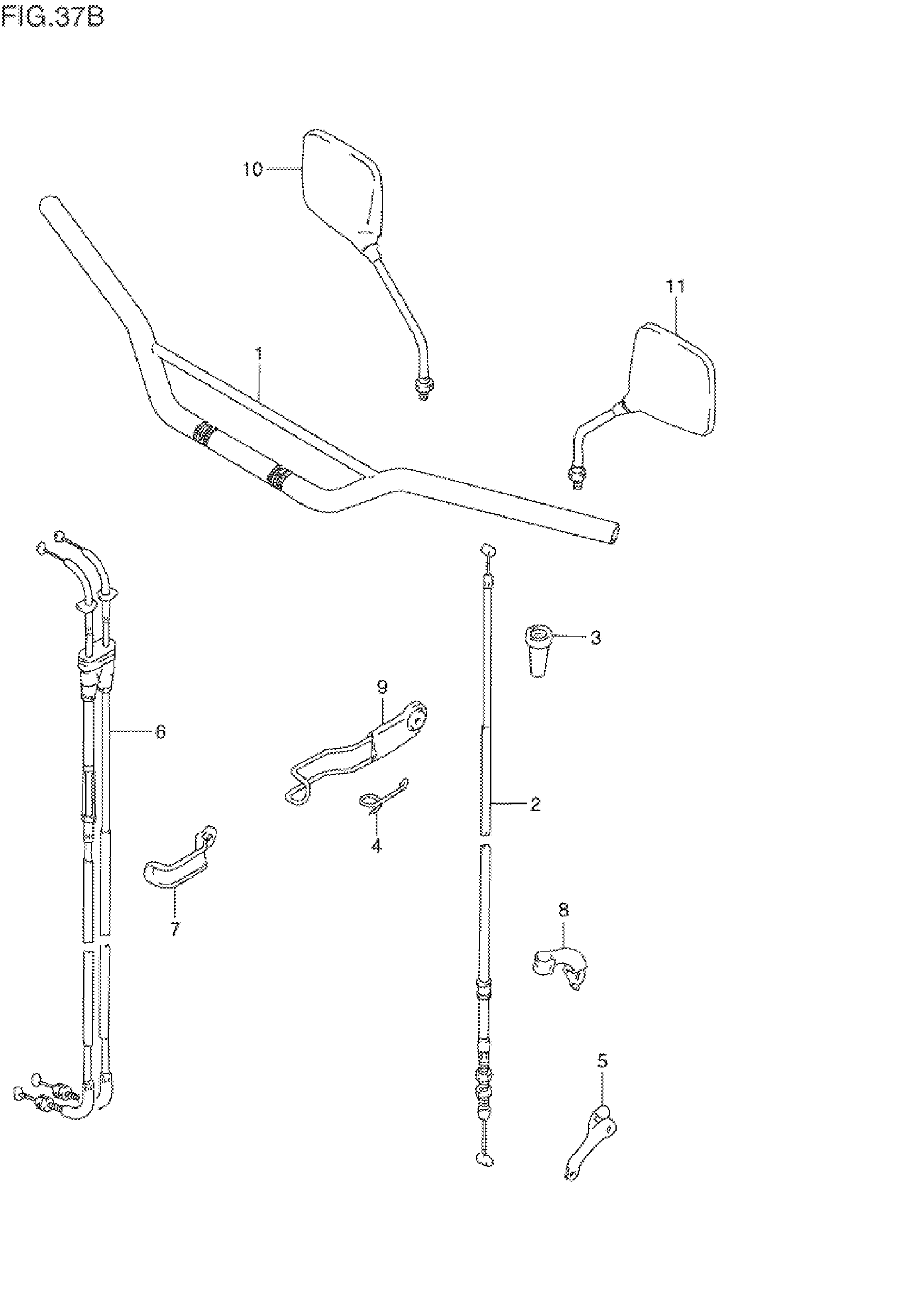

Suzuki DR350SET (1996) HANDLEBAR (MODEL R/S/T) Diagram

#

Description
Price

1

HANDLEBAR (BLACK)

56110-14D11-291

Unavailable

2

CABLE ASSY, CLUTCH

58200-14D21

$25.80

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

4

GUIDE, CLUTCH CABLE

58294-15D00

Unavailable

5

STOPPER, CLUTCH CABLE

58634-14D00

$14.73

6

CABLE ASSY, THROTTLE

58300-14E00

Unavailable

7

CLAMP This part replaces 09403-09307.

09403-09328

$1.97

8

CLAMP, CLUTCH CABLE

58285-14D01

Unavailable

9

GUIDE,CLUTCH CA This part replaces 58620-15D20.

58620-15D2V

Unavailable

10

MIRROR ASSY,REA | ->56500-13A10 This part replaces 56500-01A50.

56500-13A11

$202.35

10

MIRROR ASSY,REA This part replaces 56500-13A10.

56500-13A11

$202.35

11

MIRROR ASSY,REA | ->56600-13A10 This part replaces 56600-01A50.

56600-13A11

Unavailable

11

MIRROR ASSY,REA This part replaces 56600-13A10.

56600-13A11

Unavailable
