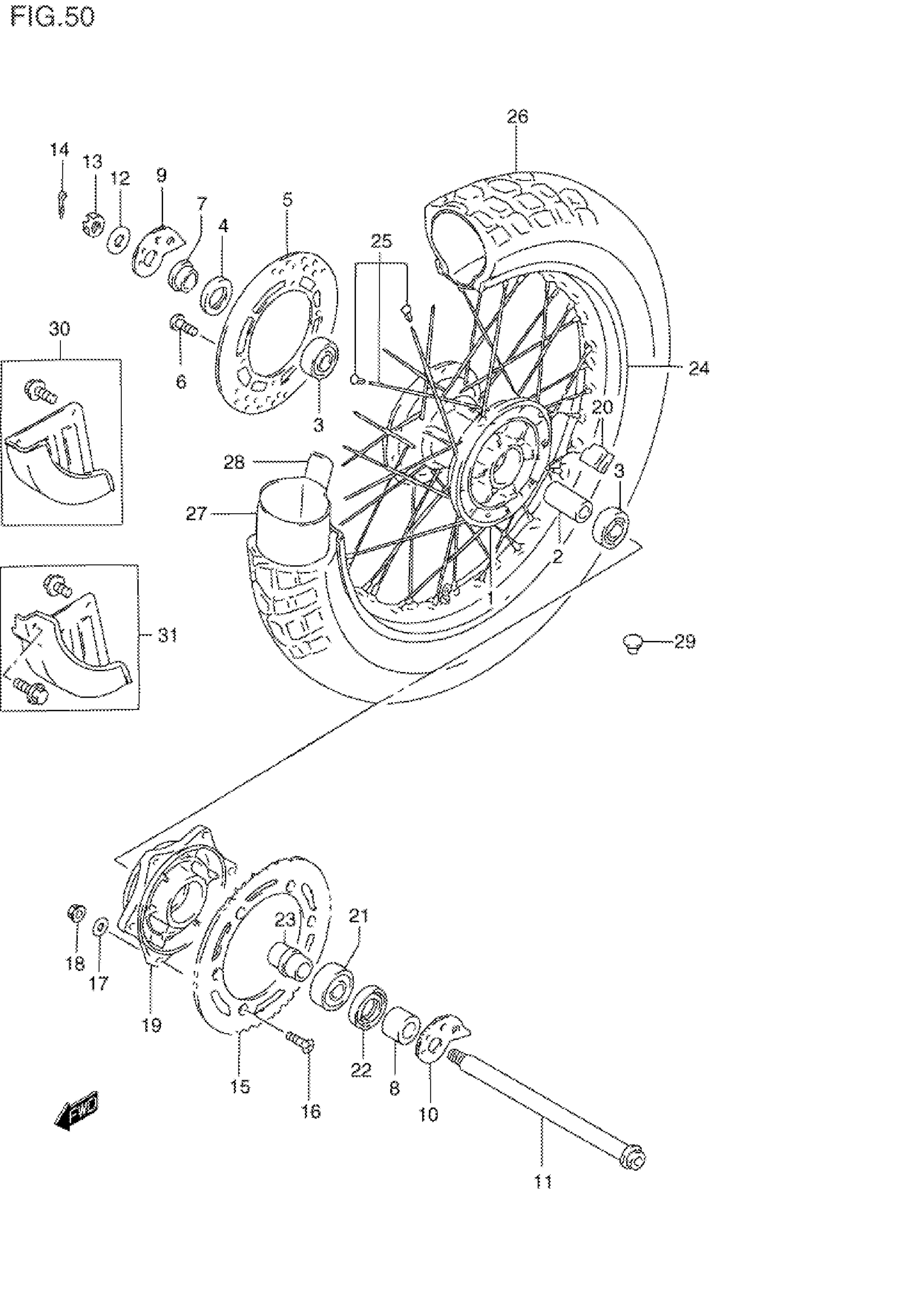

Suzuki DR350SET (1996) REAR WHEEL (MODEL L/M/N/P/R/S) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-15D00

Unavailable

2

SPACER, BEARING

64731-15D00

$22.30

3

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

4

OIL SEAL (26X47X5)

09283-26019

$11.61

5

DISC, REAR BRAKE

69211-03D01

Unavailable

6

BOLT | ->09106-08111 This part replaces 09106-08091.

09106-08128

$3.23

6

BOLT This part replaces 09106-08111.

09106-08128

$3.23

7

SPACER, AXLE RH

64741-05D00

$17.82

8

SPACER, AXLE LH

64751-15D00

$22.90

9

ADJUSTER, CHAIN, LH | MODEL L This part replaces 61410-14D00.

61420-05D00

Unavailable

9

ADJUSTER, CHAIN RH (T:4.0) | MODEL M/N/P/R/S

61410-14D10

Unavailable

10

ADJUSTER, CHAIN LH (T:3.2) | MODEL L

61421-14D00

Unavailable

10

ADJUSTER, CHAIN LH (T:4.0) | MODEL M/N/P/R/S

61421-14D10

Unavailable

11

AXLE, REAR (L:282) | MODEL L This part replaces 64711-15D01.

64710-14D20

Unavailable

11

AXLE, REAR (L:283.5) | MODEL M/N/P/R/S

64711-15D50

Unavailable

12

WASHER

09160-19022

$4.90

13

NUT | MODEL L/M/N/P This part replaces 08314-41188.

08314-40187

$5.64

13

NUT | MODEL R/S This part replaces 08314-40183.

08314-4018A

$4.64

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

15

SPROCKET,REAR,N | MODEL L/M/N->64511-22D10 This part replaces 64511-14D11.

64511-22D11

Unavailable

15

SPROCKET,REAR,N | MODEL P This part replaces 64511-22D10.

64511-22D11

Unavailable

15

SPROCKET, REAR (NT:41) | MODEL R/S

64511-15D50

Unavailable

16

SCREW

09120-08010

$2.36

17

WASHER | MODEL L/M/N/P This part replaces 08322-11088.

08322-01087

$2.13

17

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

18

NUT

08319-31087

$2.32

19

DRUM,REAR SPROCKET MOUNTING This part replaces 64611-15D00.

64611-15D01

$178.35

20

ABSORBER, HUB SHOCK

64651-15D00

$10.60

21

BEARING

09262-25061

$33.12

22

OIL SEAL (34X52X6)

09283-34003

$9.29

23

RETAINER, DRUM

64733-15D00

$30.10

24

RIM, REAR WHEEL (2.15X18)

65311-15D00

Unavailable

25

SPOKE ASSY, REAR WHEEL

65320-15D00

Unavailable

26

TIRE, REAR (110/90-18) | MODEL L/M This part replaces 65110-15D00.

65110-08D10

Unavailable

26

TIRE, REAR (110/90-18) | MODEL N

65110-08D10

Unavailable

26

TIRE, REAR (110/90-18) | MODEL P/R/S

65110-15D50

Unavailable

27

TUBE ASSY, WHEEL INNER This part replaces 65200-42AA0.

65200-42AA1

$65.62

28

PROTECTOR, TUBE

65261-15D00

Unavailable

29

CAP, BEAD STPPER

09250-08013

$2.68

30

COVER SET, REAR DISC | MODEL L/MFOR 69100-15D00OPT,OFF ROAD USE ONLY

69200-27C00

Unavailable

31

COVER SET, REAR DISC | MODEL N/P/R/SFOR 69100-15D10,69100-15D20OPT,OFF ROAD USE ONLY

69200-28C00

$28.44

32

REFER TO FIG.50A(I-4) FOR

SPECIAL NOTE

Unavailable
