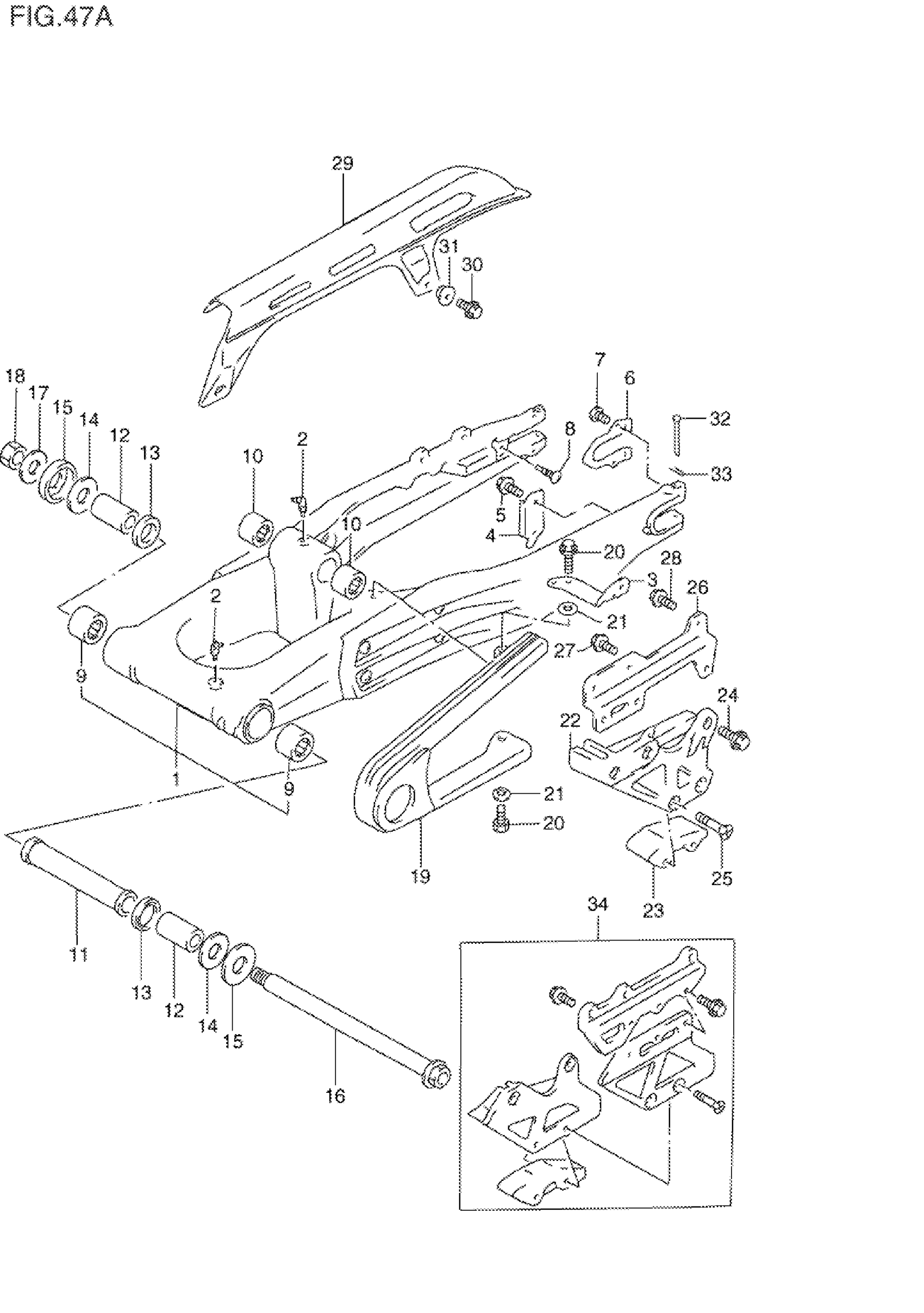

Suzuki DR350SET (1996) REAR SWINGING ARM (MODEL R/S/T) Diagram

SWINGING ARM ASSY, REAR | ->61000-14D50 This part replaces 61000-15D50.

61000-14D50

Unavailable

SWINGING ARM ASSY, REAR | Includes Item(s) 2 - 11

61000-14D50

Unavailable

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

PLATE, CHAIN CASE, FRONT

61140-15D10

Unavailable

PLATE, CHAIN CASE, REAR

61144-15D10

Unavailable

BOLT

09103-05013

Unavailable

PLATE, REAR

61128-14D00

Unavailable

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

SCREW (10x21)

09139-10001

Unavailable

BEARING (22X29X30)

09263-22017

$22.58

BEARING (22X27X23.5)

09263-20071

$25.92

SPACER, (17.3x24x126)

09180-17097

Unavailable

SPACER, PIVOT, BEARING

61251-14D00

$27.97

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

THRUST WASHER

08211-17341

$2.50

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

SHAFT, PIVOT

61211-14D00

Unavailable

WASHER This part replaces 08322-01163.

08322-0116A

$1.84

NUT

09159-16007

$12.61

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$41.37

BOLT This part replaces 01500-06163.

01500-0616A

$1.78

WASHER

09169-06057

$3.18

GUIDE, CHAIN

61340-15E00

$70.28

DEFENSE, CHAIN GUIDE

61348-15E00

$26.93

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

SCREW, LOWER This part replaces 02122-06503.

02122-0650B

$2.75

BRACKET, CHAIN GUIDE

61154-14D00

$63.80

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

CASE, CHAIN

61310-14A00

Unavailable

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

WASHER

09169-06026

$2.20

PIN

09200-06065

Unavailable

SNAP PIN

09385-06012

$1.89

GUIDE SET,CHAIN | OPT, OFF ROAD USE ONLY This part replaces 61300-14810.

61300-14811

Unavailable
