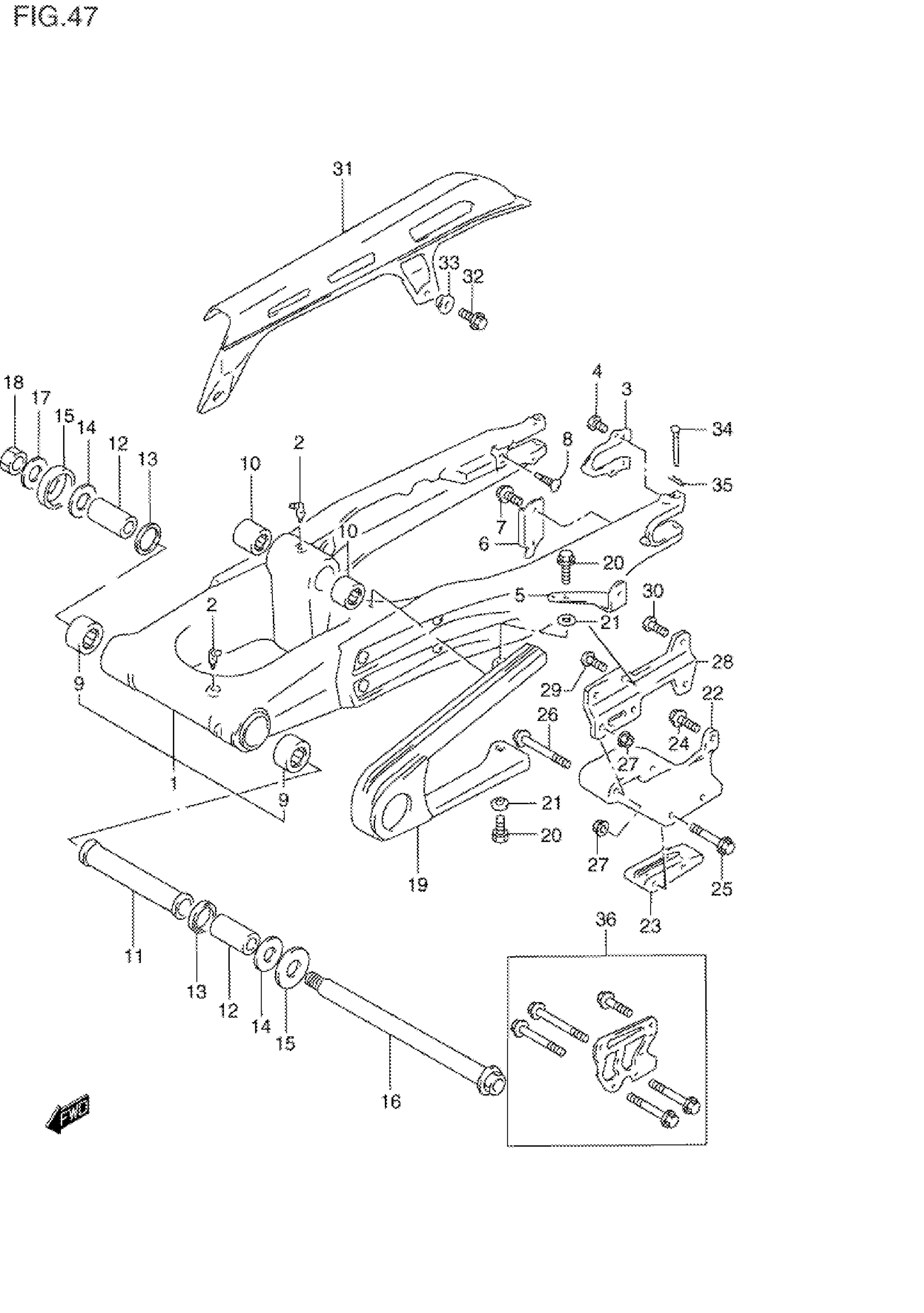

Suzuki DR350SET (1996) REAR SWINGING ARM (MODEL L/M/N/P) Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL L/M

61000-14D11

Unavailable

1

SWINGING ARM ASSY, REAR | MODEL N/P; Includes Item(s) 2 - 11

61000-14D20

Unavailable

2

NIPPLE, GREASE This part replaces 08351-31008.

08351-3100A

$4.45

3

PLATE, REAR

61128-14D00

Unavailable

4

SCREW,5X8 This part replaces 09125-05072.

09125-05072-XC0

$2.15

5

PLATE, FRONT

61142-15D00

Unavailable

6

PLATE, REAR | MODEL L/M

61144-15D00

Unavailable

6

PLATE, REAR | MODEL N/P

61144-15D10

Unavailable

7

BOLT

09103-05013

Unavailable

8

SCREW

09139-10001

Unavailable

9

BEARING, PIVOT

09263-22017

$22.58

10

BEARING

09263-20071

$25.92

11

SPACER, PIVOT CENTER

09180-17097

Unavailable

12

SPACER, BEARING

61251-14D00

$27.97

13

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

14

WASHER

08211-17341

$2.50

15

COVER,DUST This part replaces 61262-28C10.

61262-28C11

$7.01

16

SHAFT, PIVOT

61211-14D00

Unavailable

17

WASHER This part replaces 08322-11168.

08322-01167

$2.10

18

NUT

09159-16007

$12.61

19

BUFFER,CHAIN TO This part replaces 61273-14D00.

61273-14D01

$41.37

20

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

21

WASHER

09169-06057

$3.18

22

GUIDE, CHAIN

61341-27C00

Unavailable

23

DEFENSE, CHAIN GUIDE

61348-14D00

Unavailable

24

BOLT This part replaces 01517-06257.

01550-06257

$2.30

25

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

26

BOLT This part replaces 01517-06557.

01550-06557

$3.30

27

NUT

08319-31067

$2.03

28

BRACKET, CHAIN GUIDE

61154-14D00

$63.80

29

SCREW(6X16) | MODEL L/M/N This part replaces 09139-06024.

09139-06237

$2.38

29

BOLT | MODEL P This part replaces 01517-06167.

01550-06167

$2.30

30

SCREW, BRACKET REAR | MODEL L/M/N

09139-06062

$3.03

30

BOLT | MODEL P This part replaces 01517-06128.

01550-06127

$2.30

31

CASE, CHAIN

61310-14A00

Unavailable

32

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

33

WASHER

09169-06026

$2.20

34

PIN, REAR AXLE

09200-06065

Unavailable

35

PIN

09385-06012

$1.89

36

PLATE SET, CHAIN GUIDE | OPT,OFF ROAD USE ONLY

61300-14D00

Unavailable

37

REFER TO FIG.47A(H-9) FOR

SPECIAL NOTE

Unavailable
