1996 Suzuki DR350SET Rear Shock Absorber Diagram

← All diagrams

Find the part on the Rear Shock Absorber diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

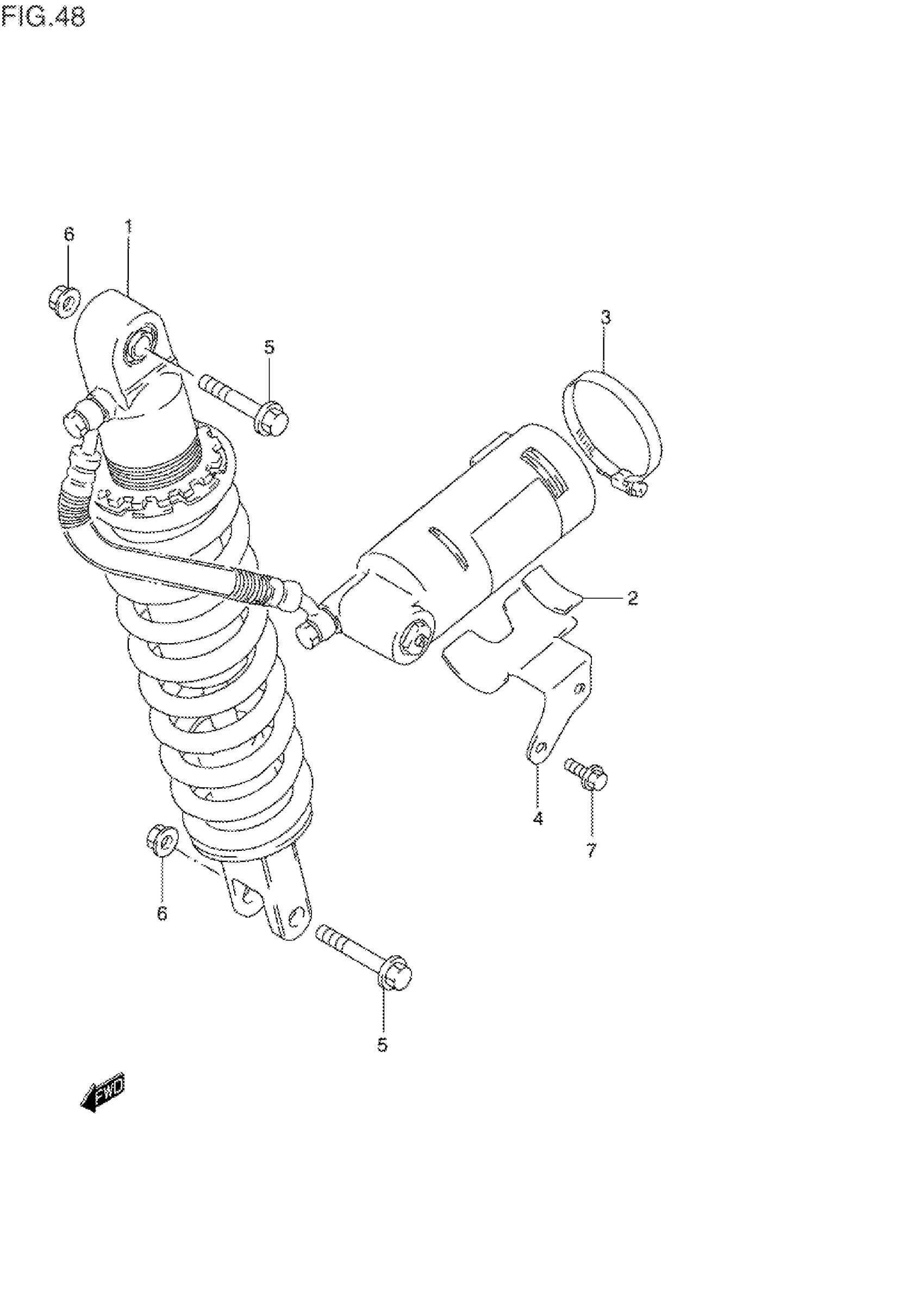

1996 Suzuki DR350SET Rear Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY,R | MODEL L This part replaces 62100-14D30-163.

62100-14D9V-1TS

1
Out of stock

1

ABSORBER ASSY,R | MODEL M This part replaces 62100-14D30-28W.

62100-14D9V-1TS

1
Out of stock

1

ABSORBER ASSY,R | MODEL N/P This part replaces 62100-14D70-28W.

62100-14D9V-1TS

1
Out of stock

1

ABSORBER ASSY, REAR SHOCK | MODEL R/S This part replaces 62100-14E60-1TS.

62100-14E61-1TS

1
Out of stock

1

ABSORBER ASSY, REAR SHOCK | MODEL T; Includes Item(s) 2 - 4

62100-14E61-1TS

1
Out of stock

2

CUSHION, TANK | MODEL L/M/N/P/R/S This part replaces 62423-01C00.

53146-20C00

2
Out of stock

2

CUSHION, TANK | MODEL T

53146-20C00

2
Out of stock

3

CLAMP, TANK

09402-60502

2
Out of stock

4

BRACKET, TANK

62420-14D10

1
Out of stock

5

BOLT, LOWER (10X54) | MODEL L/M/N/PMODEL R/S/TUPPER This part replaces 62311-28C00.

62311-28E00

2
Out of stock

5

BOLT (10X48) | MODEL R/S/TLOWER

62648-14500

1
Out of stock

6

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

2
Out of stock

7

BOLT | MODEL L/M/N/P This part replaces 01517-06108.

01550-06107

2
Out of stock

7

BOLT | MODEL R/S/T This part replaces 01550-06103.

01550-0610A

2
Out of stock
