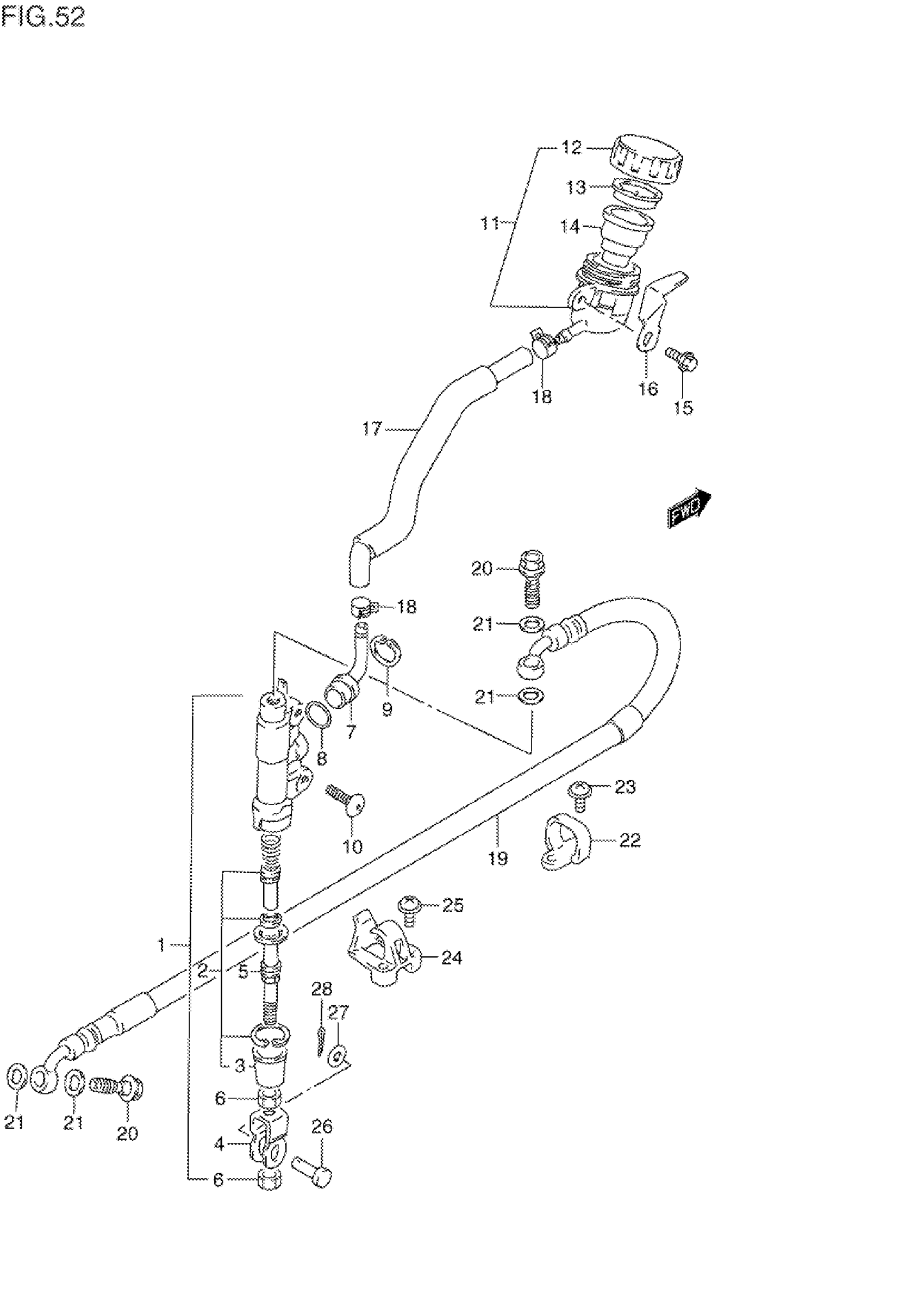

Suzuki DR350SET (1996) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 9 This part replaces 69600-14D00.

69600-14D01

Unavailable

2

.PISTON/CUP SET This part replaces 69600-04820.

69600-04821

$32.27

3

.BOOT

69691-00A00

$5.30

4

YOKE

69692-00B21

$17.02

5

ROD, PUSH

69670-48B00

$26.97

6

NUT

69693-05A00

$1.96

7

CONNECTOR

59672-17C00

$9.31

8

O RING

69686-34200

$2.93

9

CIRCLIP

69674-00B20

$3.97

10

SCREW(6X16) | ->09139-06067 This part replaces 09139-06024.

09139-06237

$2.38

10

SCREW(6X16) This part replaces 09139-06067.

09139-06237

$2.38

11

TANK ASSY, RESERVOIR | Includes Item(s) 12 - 14

69740-03D00

$75.90

12

CAP

69669-03D00

$22.65

13

PLATE

69668-00B20

$7.67

14

DIAPHRAGM

69667-00B20

$15.68

15

BOLT | MODEL L/M/N/P This part replaces 01517-06164.

01550-0616A

$1.97

15

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

$1.97

16

GUARD,RSVR TANK CAP

69743-14D10

$6.88

17

HOSE, RESERVOIR TANK

69730-14D00

Unavailable

18

CLIP | MODEL L/M/N/P This part replaces 09401-12402.

09401-12404

$2.34

18

CLIP | MODEL R/S/T

09401-12404

$2.34

19

HOSE, REAR BRAKE

69480-14D00

Unavailable

20

UNION BOLT (10X1.00X24) | MODEL L/M/N/P

09360-10017

$3.42

20

UNION | MODEL R/S/TREAR MASTER CYLINDER This part replaces 09360-10039.

09360-10061

$6.43

20

UNION | MODEL R/S/TREAR CALIPER This part replaces 09360-10040.

09360-10062

$6.43

21

WASHER (10X15X1.5)

09161-10009

$1.84

22

GUIDE, HOSE FRONT

61196-00B21

$6.79

23

SCREW (5X10) | MODEL L/M/N/P

09125-05042

$1.96

23

SCREW | MODEL R/S/T This part replaces 02142-05103.

02142-0510B

$1.78

24

GUIDE, HOSE REAR

61196-03D00

$4.54

25

SCREW, OUTER | MODEL L/M/N/P This part replaces 02112-35168.

02112-35167

$2.63

25

SCREW | MODEL R/S/T This part replaces 02112-35163.

02112-3516A

$2.43

26

PIN

09200-08048

$2.92

27

WASHER

09160-08074

Unavailable

28

PIN This part replaces 04111-25158.

04111-2515A

$1.49
