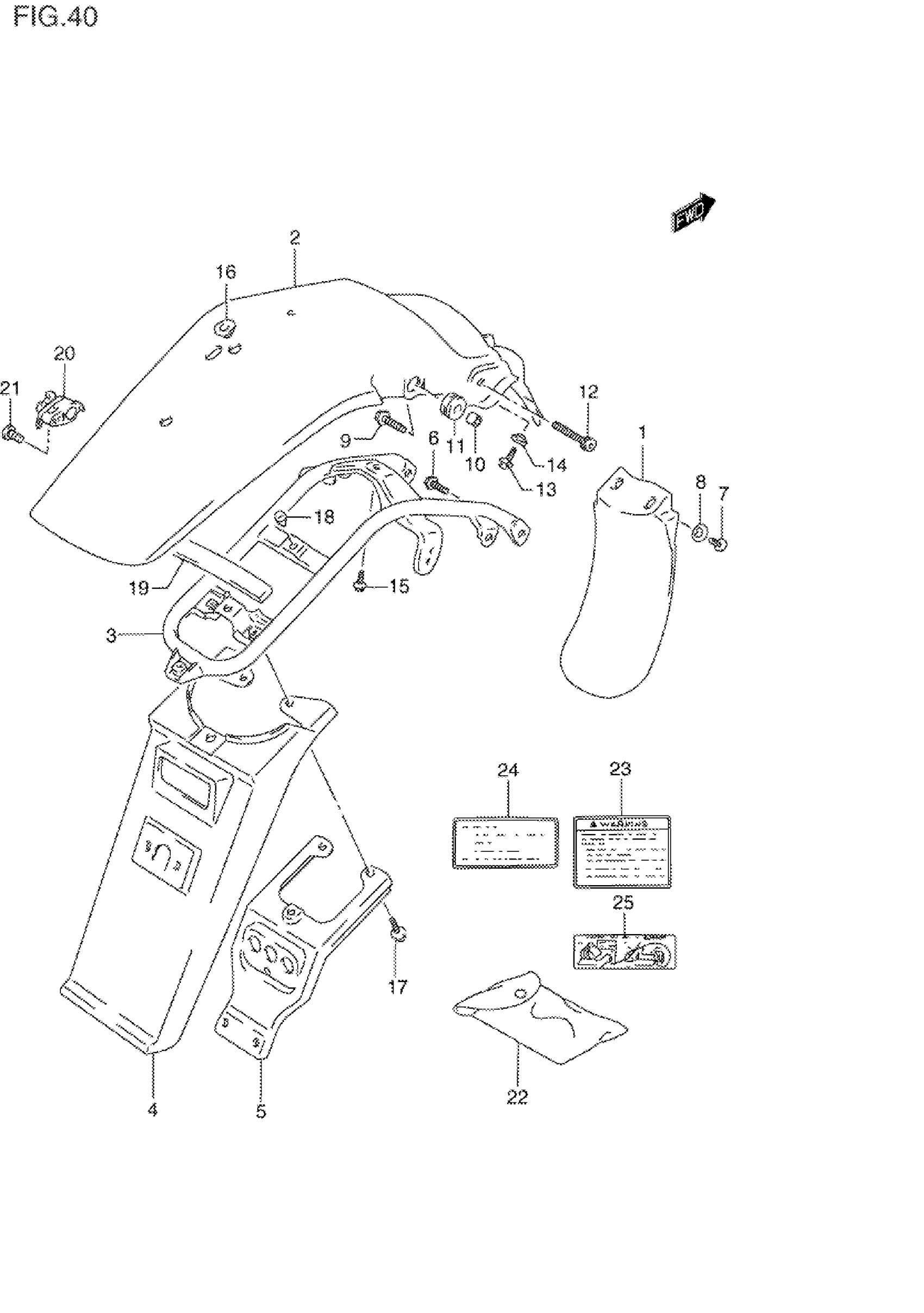

Suzuki DR350SET (1996) REAR FENDER (MODEL L/M/N/P) Diagram

#

Description
Price

1

BODY, REAR FENDER,FRONT

63112-14D00

Unavailable

2

BODY, REAR FENDER,REAR | MODEL L->63113-14D21-30HW/01177-0816809160-14032 This part replaces 63113-14D20-30H.

63113-14D23-30H

Unavailable

2

BODY, REAR FENDER,REAR | MODEL M This part replaces 63113-14D21-30H.

63113-14D23-30H

Unavailable

2

BODY, REAR FENDER,REAR | MODEL N/P This part replaces 63113-14D22-30H.

63113-14D23-30H

Unavailable

3

REINFORCEMENT, REAR FENDER | MODEL L This part replaces 63120-14D10.

63120-14D11

Unavailable

3

REINFORCEMENT, REAR FENDER | MODEL M/N/P

63120-14D11

Unavailable

4

EXTENSION, REAR FENDER

63311-03D20

Unavailable

5

REINFORCEMENT, EXTENSION | MODEL L/M This part replaces 63320-03D02.

63320-03D03

Unavailable

5

REINFORCEMENT, EXTENSION | MODEL N/P

63320-03D03

Unavailable

6

BOLT (8X12) This part replaces 09103-08291.

09103-08382

$3.33

7

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

8

WASHER This part replaces 09169-06051.

09169-06055

$2.27

9

BOLT, CENTER

09103-08292

Unavailable

10

SPACER This part replaces 09180-08030.

09180-08187

$2.65

11

FENDER SIDE CUS | MODEL L/M/N->09320-12011 This part replaces 63191-14D00.

09320-12090

$1.91

11

FENDER SIDE CUS | MODEL P This part replaces 09320-12011.

09320-12090

$1.91

12

BOLT, REAR FRONT

09106-08105

$3.78

13

BOLT, REAR

01550-06167

$2.30

14

WASHER

09169-06038

Unavailable

15

BOLT, REAR | MODEL L

09118-06102

Unavailable

15

BOLT, REAR | MODEL M/N/P

01580-08167

Unavailable

16

WASHER | MODEL L This part replaces 09160-12004.

09160-12088

$2.00

16

WASHER | MODEL M/N/P This part replaces 09160-14032.

09160-14059

$2.65

17

BOLT This part replaces 01580-06163.

01580-0616A

$2.42

18

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

19

CUSHION, MUD FLAP LH This part replaces 63192-14D00.

63191-44A00

Unavailable

20

LOCK SET,HELMET This part replaces 95700-03810.

95700-03811

$75.97

21

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

22

TOOL ASSY This part replaces 09800-20039.

09800-21084

$41.57

23

LABEL,GENERAL W This part replaces 68319-15D00.

68319-33E02

$7.25

24

LABEL, CAUTION STARTING

68393-14D10

Unavailable

25

LABEL, PIPING DIAGRAM | CALIFORNIA ONLY

68387-15D00

Unavailable

26

LABEL, TIRE AIR PRESSURE | DRAWING NOT SHOWN

68332-14D00

Unavailable

27

MANUAL, OWNER'S | MODEL L

99011-14D70-03A

Unavailable

27

MANUAL, OWNER'S | MODEL M

99011-14D71-03A

Unavailable

27

MANUAL, OWNER'S | MODEL N

99011-14D72-03A

Unavailable

27

MANUAL, OWNER'S | MODEL PDRAWING NOT SHOWN

99011-14D73-03A

Unavailable

28

REFER TO FIG.40A(G-13) FOR

SPECIAL NOTE

Unavailable
