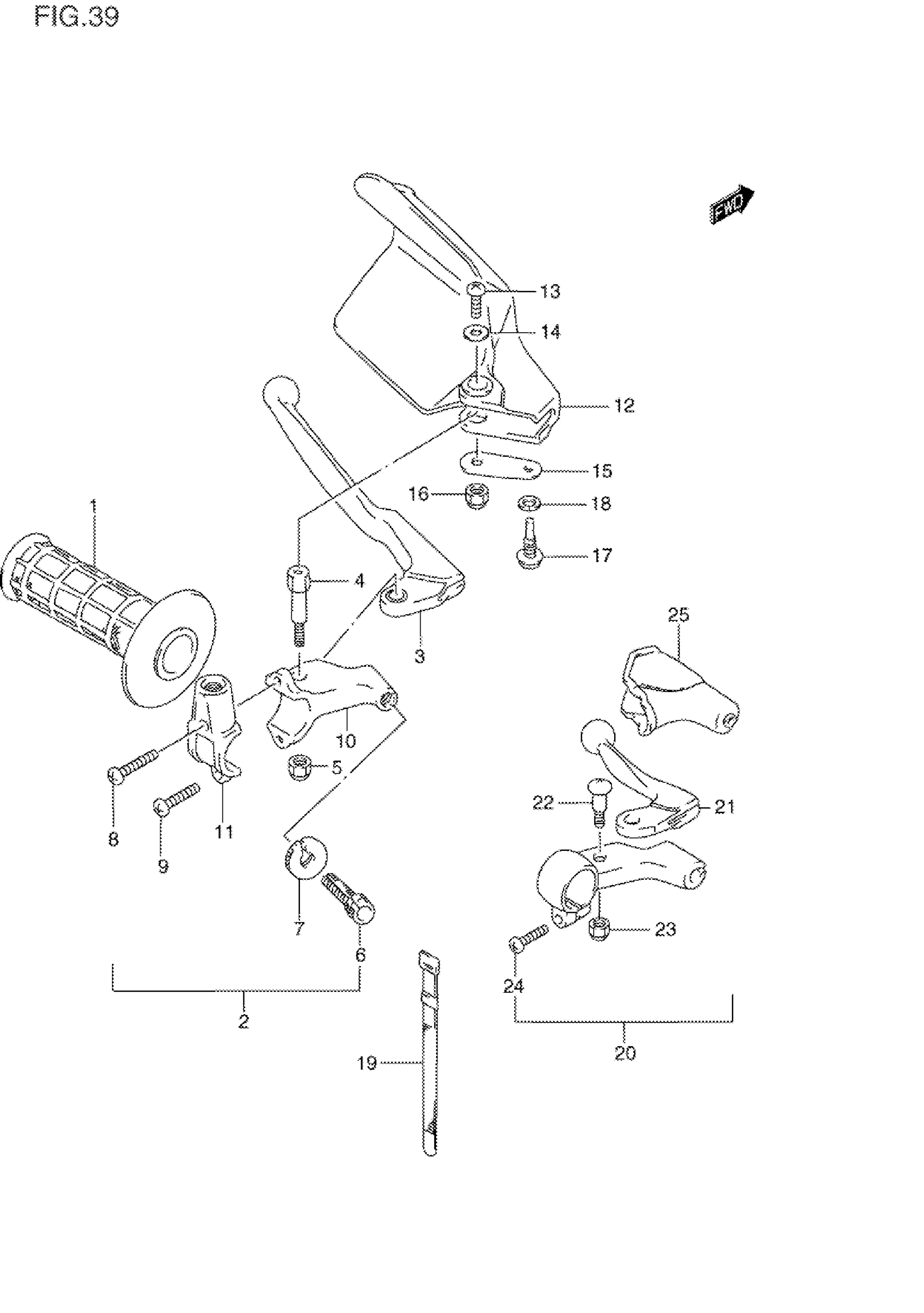

Suzuki DR350SET (1996) LEFT HANDLE LEVER (MODEL L/M/N/P) Diagram

#

Description
Price

1

GRIP LH

57211-27C00

$12.28

2

LEVER ASSY, CLUTCH | Includes Item(s) 3 - 11

57500-15D00

Unavailable

3

LEVER

57620-14300

$20.83

4

BOLT

57631-05D00

$7.12

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

ADJUSTER

57441-11010

$5.62

7

NUT

57442-05D00

$8.18

8

SCREW,5X22 This part replaces 09125-05105.

09125-05105-XC0

$4.10

9

SCREW

09125-05102

$1.61

10

HOLDER, LEVER

57511-14300

Unavailable

11

BRACKET, HOLDER

57512-03D00

Unavailable

12

COVER, KNUCKLE,LH (BLUE)

57541-05D01-0NF

$46.22

13

SCREW

09125-05042

$1.96

14

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

15

PLATE, COVER,LH

57542-05D00

$4.17

16

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

17

SCREW This part replaces 09139-06010.

09139-06086

$3.15

18

LOCK WASHER

08321-01067

$2.13

19

BAND

09407-12402

$3.04

20

LEVER ASSY,DECO | Includes Item(s) 21 - 24 This part replaces 58700-38200.

58700-38210

$152.93

21

LEVER

58731-38200

$49.42

22

BOLT

57431-01012

$5.24

23

NUT

57633-38200

Unavailable

24

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

25

COVER, DECOMP LEVER

57342-37101

$11.95

26

REFER TO FIG.39A(G-10) FOR

SPECIAL NOTE

Unavailable
