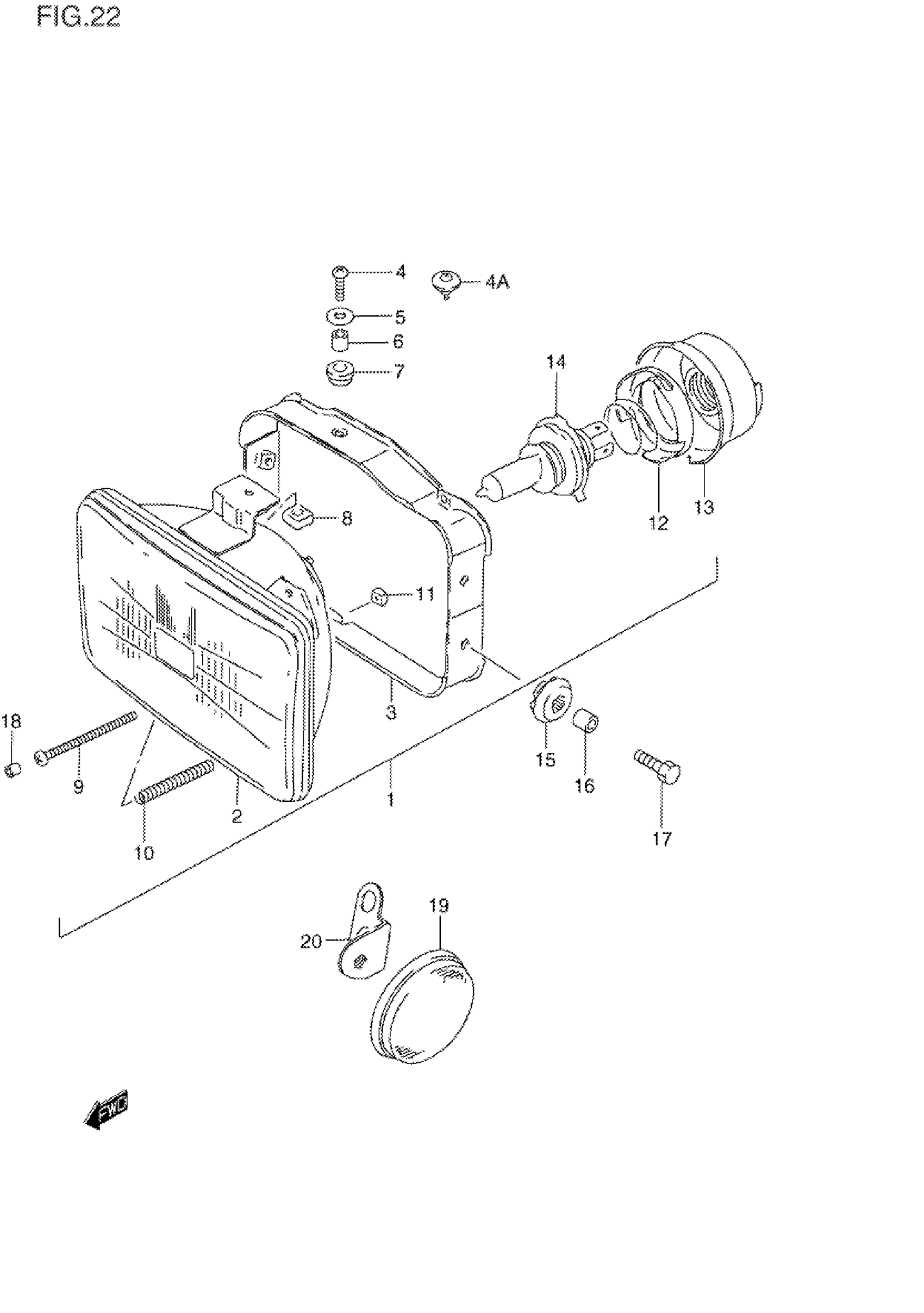

Suzuki DR350SET (1996) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | MODEL L/M/N/P/R This part replaces 35100-14A30-999.

35100-14A33-999

$211.22

1

HEADLAMP ASSY | MODEL S/T; Includes Item(s) 2 - 13 This part replaces 35100-14A31-999.

35100-14A33-999

$211.22

2

LAMP UNIT | MODEL L/M/N/P/R This part replaces 35121-14A30.

35121-14A31

Unavailable

2

LAMP UNIT | MODEL S/T

35121-14A31

Unavailable

3

RING, MOUNTING

35141-14A00

$37.53

4

SCREW | MODEL L/M/N/P/R

02112-05207

$1.97

4A

.SCREW MOUNTING | MODEL S/T

35136-38A00

$4.02

5

WASHER (5.5X18X1) | MODEL L/M/N/P/R This part replaces 35138-45230.

09160-05045

$1.93

6

SPACER | MDDEL L/M/N/P/R

35133-14A00

Unavailable

7

CUSHION

35139-45230

$1.98

8

NUT

35135-45900

$3.25

9

SCREW | MODEL L/M/N/P This part replaces 35151-49200.

35151-45900

$3.65

9

SCREW, ADJUSTING | MODEL R/S/T

35151-45900

$3.65

10

SPRING

35154-49200

$5.50

11

NUT

35135-45600

$3.65

12

HOLDER, BULB

35136-01A00

Unavailable

13

.COVER SOCKET

35173-01440

$17.37

14

BULB (12V,60/55W,H4)

09471-12060

$25.15

15

CUSHION

09320-09018

$2.44

16

SPACER

09180-06138

$2.38

17

BOLT (6X20) | MODEL L/M/N/P This part replaces 09116-06011.

09116-06115

$1.97

17

BOLT | MODEL R/S/T

09116-06167

$2.19

18

COVER | MODEL L/M/N/P

35158-43400

$1.92

19

REFLECTOR, FRONT SIDE

35950-14A00

$16.94

20

BRACKET, REFLECTOR RH | MODEL L/M/N/P/R This part replaces 35956-14D00.

35956-14D01

Unavailable

20

BRACKET, FRONT SIDE RH | MODEL S/T

35956-14D01

Unavailable

20

BRACKET, REFLECTOR LH | MODEL L/M/N/P/R This part replaces 35957-14D00.

35957-14D01

Unavailable

20

BRACKET, FRONT SIDE LH | MODEL S/T

35957-14D01

Unavailable
