Partiron

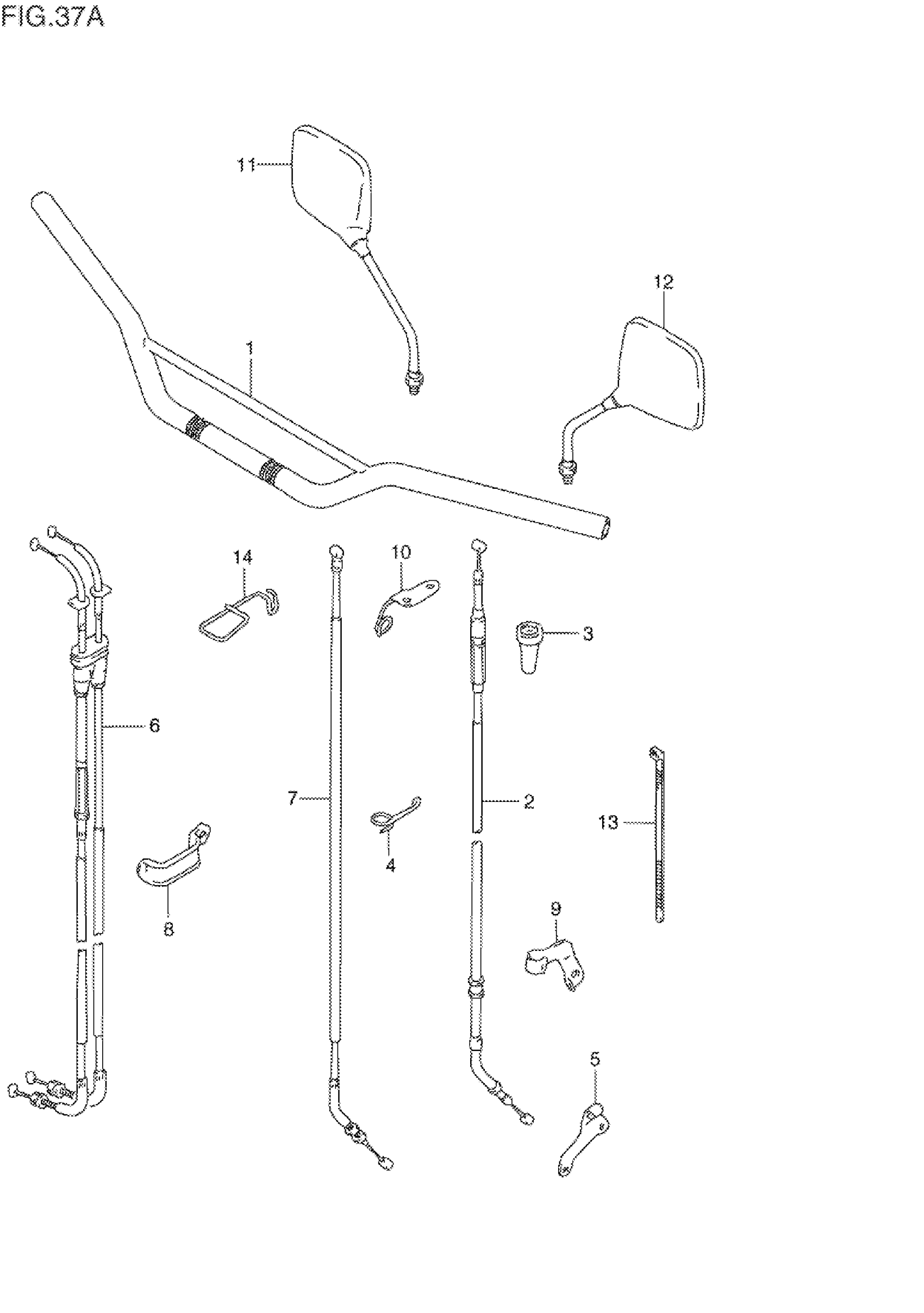

Suzuki DR350SET (1996) HANDLEBAR (MODEL N/P) Diagram

#

Description
Price

1

HANDLEBAR (BLACK) | MODEL N->56110-14D10-291 This part replaces 56110-14D30-291.

56110-14D11-291

Unavailable

1

HANDLEBAR (BLACK) | MODEL P This part replaces 56110-14D10-291.

56110-14D11-291

Unavailable

2

CABLE ASSY, CLU This part replaces 58200-14D00.

58200-14D01

$40.40

3

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

4

GUIDE, CLUTCH CABLE

58294-15D00

Unavailable

5

STOPPER, CLUTCH CABLE

58634-14D00

$13.05

6

CABLE ASSY, THROTTLE

58300-14D30

Unavailable

7

CABLE ASSY, DECOMP

58900-14D00

Unavailable

8

CLAMP This part replaces 09403-09307.

09403-09328

$1.77

9

CLAMP, CLUTCH CABLE This part replaces 58285-14D00.

58285-14D01

$4.01

10

GUIDE, CABLE

58620-15D10

Unavailable

11

MIRROR ASSY,REA This part replaces 56500-01A50.

56500-13A11

$180.15

12

MIRROR ASSY,REA This part replaces 56600-01A50.

56600-13A11

$180.15

13

CLAMP, CLUTCH CABLE

09407-10404

$2.90

14

GUIDE, THROTTLE CABLE

58294-15D10

Unavailable

15

REFER TO FIG.37B(G-6) FOR

SPECIAL NOTE

Unavailable
