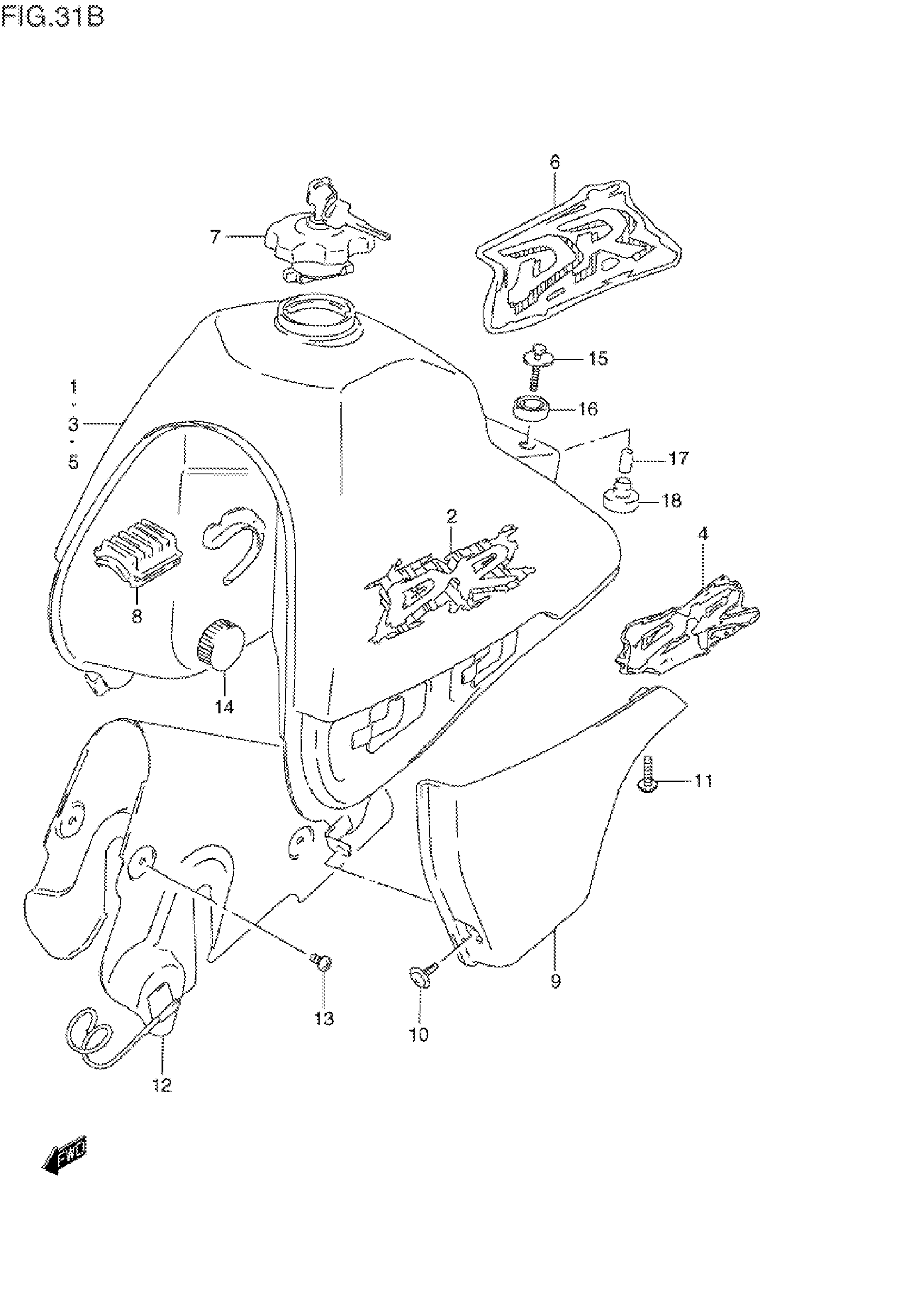

Suzuki DR350SET (1996) FUEL TANK (MODEL R/S/T) Diagram

#

Description
Price

1

TANK ASSY, FUEL (WHITE) | MODEL R

44100-14EE0-28X

Unavailable

1

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL R; Includes Item(s) 2

44100-14ED0-28X

Unavailable

2

EMBLEM SET, FUEL TANK | MODEL R

68120-12E00-1WN

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL S

44100-14EL0-28X

Unavailable

3

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL S; Includes Item(s) 4

44100-14EK0-28X

Unavailable

4

EMBLEM SET | MODEL S

68120-14E00-D1R

Unavailable

5

TANK ASSY, FUEL (WHITE) | MODEL T

44100-14ER0-30H

Unavailable

5

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL T; Includes Item(s) 6

44100-14ET0-30H

Unavailable

6

TANK SET, FUEL TANK | MODEL T

68110-14E20-Z65

Unavailable

7

CAP SET, FUEL TANK

44200-03811

Unavailable

7

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

$74.48

8

CUSHION, UPPER

44541-15D01

Unavailable

9

COVER, FUEL TANK RH (WHITE)

44171-15D00-30H

Unavailable

9

COVER, FUEL TANK LH (WHITE)

44181-15D00-30H

Unavailable

10

SCREW, FRONT

02142-06107

Unavailable

11

SCREW

09136-06002

$2.44

12

HEAT SHIELD, FUEL TANK

49131-14D20

Unavailable

12

HEAT SHIELD, FUEL TANK | CALIFORNIA ONLY

49130-15D30

Unavailable

13

BOLT

01560-05103

Unavailable

14

CUSHION, FRONT

09329-10016

$3.10

15

BOLT (6X30) | MODEL R This part replaces 09116-06153.

09116-06172

$2.50

15

BOLT, REAR | MODEL S/T

09116-06172

$2.50

16

CUSHION, UPPER

09320-14013

$2.11

17

SPACER This part replaces 09180-06072.

09180-06271

$2.35

18

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60
