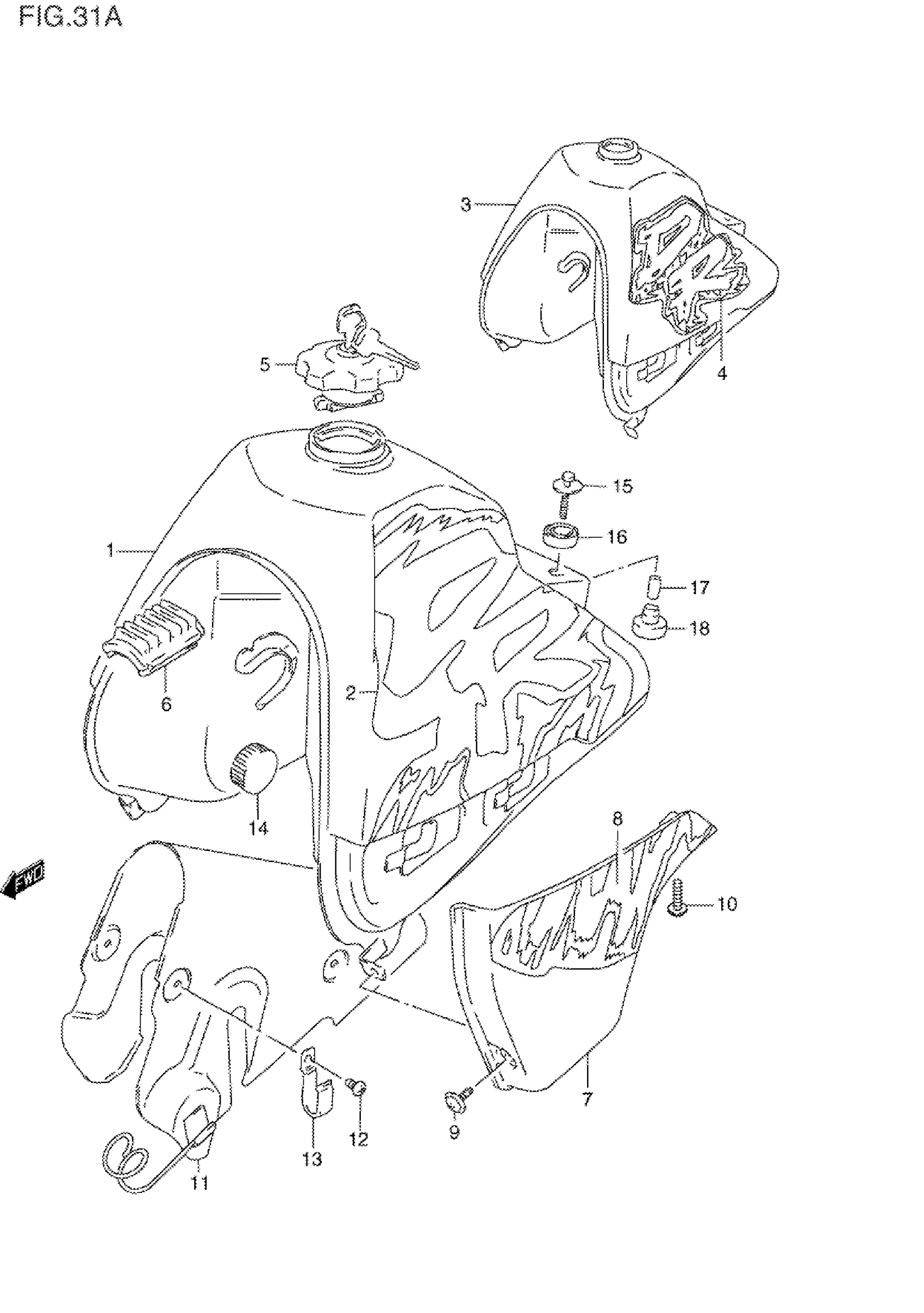

Suzuki DR350SET (1996) FUEL TANK (MODEL N/P) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 44100-14E10-28X.

44100-14E11-28X

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY,MODEL N; Includes Item(s) 2 This part replaces 44100-14E00-28X.

44100-14E01-28X

Unavailable

2

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 68110-15D70-M79.

68110-15D71-M79

Unavailable

3

TANK ASSY, FUEL (WHITE) | MODEL P

44100-14E70-28X

Unavailable

3

TANK ASSY, FUEL (WHITE) | CALIFORNIA ONLY,MODEL P; Includes Item(s) 4

44100-14E60-28X

Unavailable

4

TAPE SET, FUEL TANK | MODEL P

68110-15E20-A4F

Unavailable

5

CAP SET, FUEL TANK

44200-03811

Unavailable

5

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-05820.

44200-05822

$74.48

6

CUSHION, FRONT UPPER | MODEL N This part replaces 44541-15D00.

44541-15D01

Unavailable

6

CUSHION, UPPER | MODEL P

44541-15D01

Unavailable

7

COVER, FUEL TANK RH (WHITE)

44171-15D00-30H

Unavailable

7

COVER, FUEL TANK LH (WHITE)

44181-15D00-30H

Unavailable

8

TAPE, TANK COVER RH | MODEL N

68115-15D00-N11

Unavailable

8

TAPE, TANK COVER LH | MODEL N

68116-15D00-N11

Unavailable

9

SCREW, FRONT

02142-06107

Unavailable

10

SCREW

09136-06002

$2.44

11

HEAT SHIELD, FUEL TANK

49131-14D20

Unavailable

11

HEAT SHIELD, FUEL TANK | CALIFORNIA ONLY

49130-15D30

Unavailable

12

SCREW This part replaces 02142-05084.

02142-0508A

$1.49

13

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

14

CUSHION, FRONT

09329-10016

$3.10

15

BOLT (6X30) This part replaces 09116-06153.

09116-06172

$2.50

16

CUSHION, UPPER

09320-14013

$2.11

17

SPACER This part replaces 09180-06072.

09180-06271

$2.35

18

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

19

REFER TO FIG.31B(F-10) FOR

SPECIAL NOTE

Unavailable
