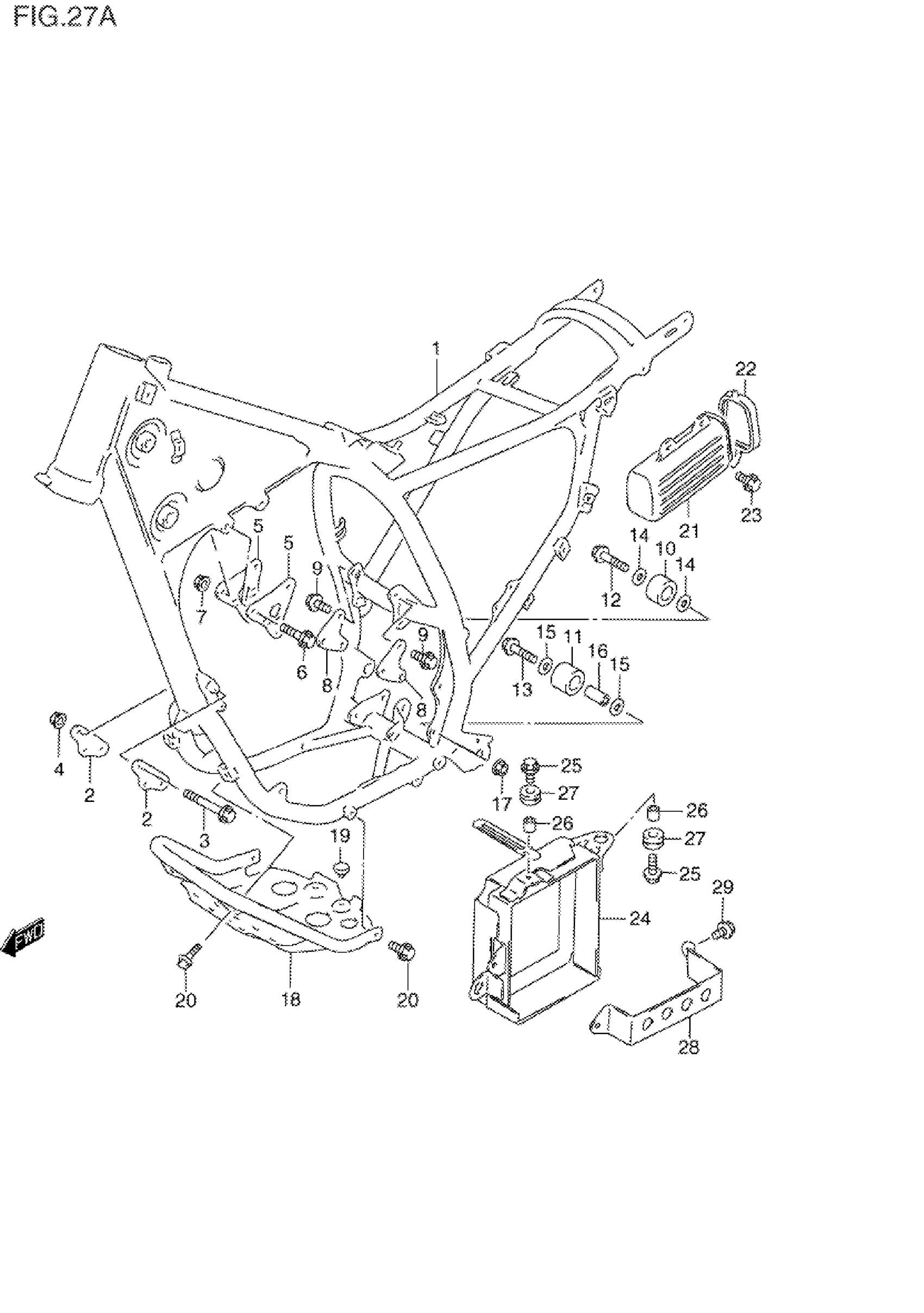

Suzuki DR350SET (1996) FRAME (MODEL R/S/T) Diagram

#

Description
Price

1

FRAME (BLUE) | MODEL R/S

41100-15D22-0NF

Unavailable

1

FRAME (PURPLE) | MODEL T

41100-15D22-Z16

Unavailable

2

PLATE, FRONT

41911-14D01

Unavailable

3

BOLT

09103-08294

Unavailable

4

NUT

09159-08034

$1.62

5

PLATE, UPPER

41991-14D01

Unavailable

6

BOLT (8X70) This part replaces 09103-08293.

09103-08569

$4.88

7

NUT

09159-08034

$1.62

8

PLATE, LOWER

41971-14D01

Unavailable

9

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

10

ROLLER, CHAIN LOWER

43910-27C11

$64.67

11

ROLLER, CHAIN UPPER

43911-01B10

$16.63

12

BOLT, UPPER

09103-08178

$4.69

13

BOLT, INNER This part replaces 09103-08068.

09103-08043

$3.18

14

WASHER, UPPER

08211-08221

$2.45

15

WASHER | MODEL R/S This part replaces 09160-08021.

09160-08130

$2.03

15

WASHER, LOWER | MODEL T

08211-08121

$1.99

16

SPACER (8.5X14X28) This part replaces 09180-08136.

09180-08206

$5.75

17

NUT This part replaces 08313-20083.

08313-2008B

$2.88

18

PROTECTOR, ENGINE (SILVER)

42510-14D10-13L

Unavailable

19

CUSHION

09321-10026

Unavailable

20

BOLT (8X12) This part replaces 01550-08123.

01550-0812A

$2.32

21

HOLDER, TOOL

47431-14D00

$47.07

22

CAP,TOOL HOLDER This part replaces 47432-14D00.

47432-14D01

$12.83

23

BOLT, CENTER This part replaces 09116-06144.

09116-06165

$3.03

24

HOLDER, BATTERY

41540-15D00

Unavailable

25

BOLT (6X20)

09116-06010

$2.19

26

SPACER, LOWER LH This part replaces 09180-06210.

09180-06285

$2.74

27

CUSHION This part replaces 09320-10043.

09320-10501

$6.23

28

BAND, BATTERY HOLDER

41542-15D00

Unavailable

29

BOLT (6x10)

09128-06058

$1.98
