1996 Suzuki DR350SET Frame Diagram

← All diagrams

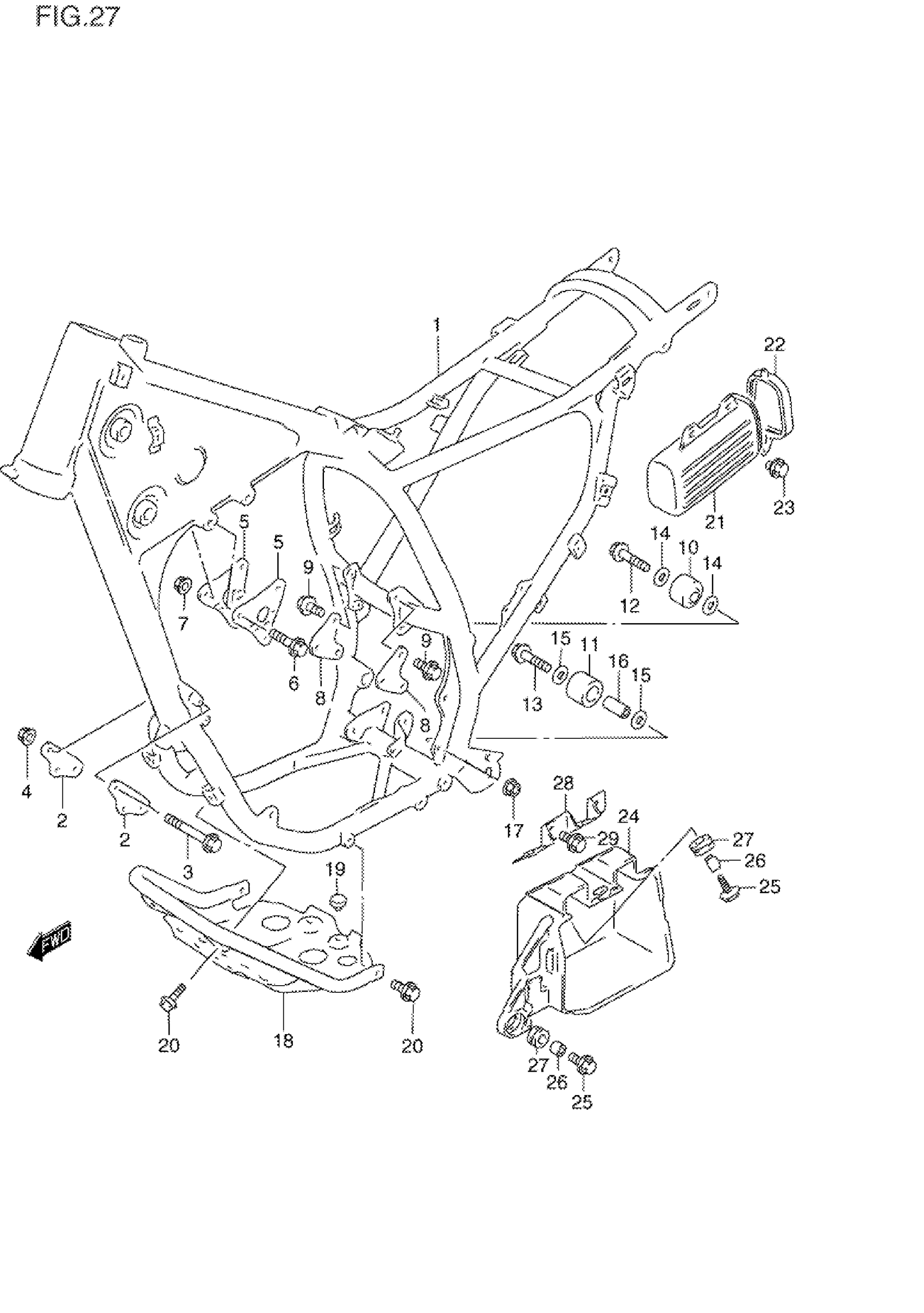

Find the part on the Frame diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Suzuki DR350SET Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 41100-14D20-0NF.

41100-14D72-0NF

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-14D30-0NF.

41100-14D72-0NF

1
Out of stock

1

NO DESCRIPTION AVAILABLE | MODEL N/P This part replaces 41100-14D31-0NF.

41100-14D72-0NF

1
Out of stock

2

PLATE, FRONT

41911-14D01

2
Out of stock

3

BOLT

09103-08294

2
Out of stock

4

NUT | MODEL L

08319-31087

2
Out of stock

4

NUT | MODEL M/N/P

09159-08034

2

$1.73

In stock

5

PLATE, UPPER

41991-14D01

2
Out of stock

6

BOLT (8X70) This part replaces 09103-08293.

09103-08569

2
Out of stock

7

NUT | MODEL L

08319-31087

2
Out of stock

7

NUT | MODEL M/N/P

09159-08034

2

$1.73

In stock

8

PLATE, LOWER

41971-14D01

2
Out of stock

9

BOLT (8X16) This part replaces 09103-08283.

09103-08570

2
Out of stock

10

ROLLER, CHAIN CONTROL | MODEL LMODEL M This part replaces 43910-27C10.

43910-27C11

1
Out of stock

10

ROLLER, CHAIN | MODEL N/P

43910-27C11

2
Out of stock

11

ROLLER, CHAIN LOWER | MODEL L

43911-01B10

1
Out of stock

12

BOLT, UPPER

09103-08178

1
Out of stock

13

BOLT, LOWER | MODEL L

01550-08457

1
Out of stock

13

BOLT, INNER | MODEL M/N/P This part replaces 09103-08068.

09103-08043

1
Out of stock

14

WASHER, UPPER | MODEL L/M

09160-08074

2
Out of stock

14

WASHER, UPPER | MODEL N/P

08211-08121

2
Out of stock

15

WASHER | MODEL L This part replaces 09160-08021.

09160-08130

2
Out of stock

15

WASHER, LOWER | MODEL M

09160-08074

2
Out of stock

15

WASHER, LOWER | MODEL N/P

08211-08121

2
Out of stock

16

SPACER (8.5X14X28) | MODEL L This part replaces 09180-08136.

09180-08206

1
Out of stock

17

NUT, LOWER

08313-20087

1
Out of stock

18

PROTECTOR, ENGINE (SILVER) | MODEL L This part replaces 42510-14D01-13L.

42510-14D10-13L

1
Out of stock

18

PROTECTOR, ENGINE (SILVER) | MODEL M/N/P

42510-14D10-13L

1
Out of stock

19

CUSHION

09321-10026

1
Out of stock

20

BOLT

01550-08127

4
Out of stock

21

HOLDER, TOOL

47431-14D00

1
Out of stock

22

CAP,TOOL HOLDER This part replaces 47432-14D00.

47432-14D01

1
Out of stock

23

2

$3.30

In stock

24

HOLDER, BATTERY

41541-03D00

1
Out of stock

25

BOLT (6X20)

09116-06010

3
Out of stock

26

SPACER This part replaces 09180-06152.

09180-06262

3
Out of stock

27

CUSHION

09320-09016

3
Out of stock

28

PLATE, BATTERY HOLDER

41560-14D00

1
Out of stock

29

BOLT This part replaces 01517-06105.

01550-0610A

2
Out of stock

30

REFER TO FIG.27A(F-4) FOR

SPECIAL NOTE

—
Out of stock
