1996 Suzuki DR350SET Frame Cover Diagram

← All diagrams

Find the part on the Frame Cover diagram for your 1996 Suzuki DR350SET, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

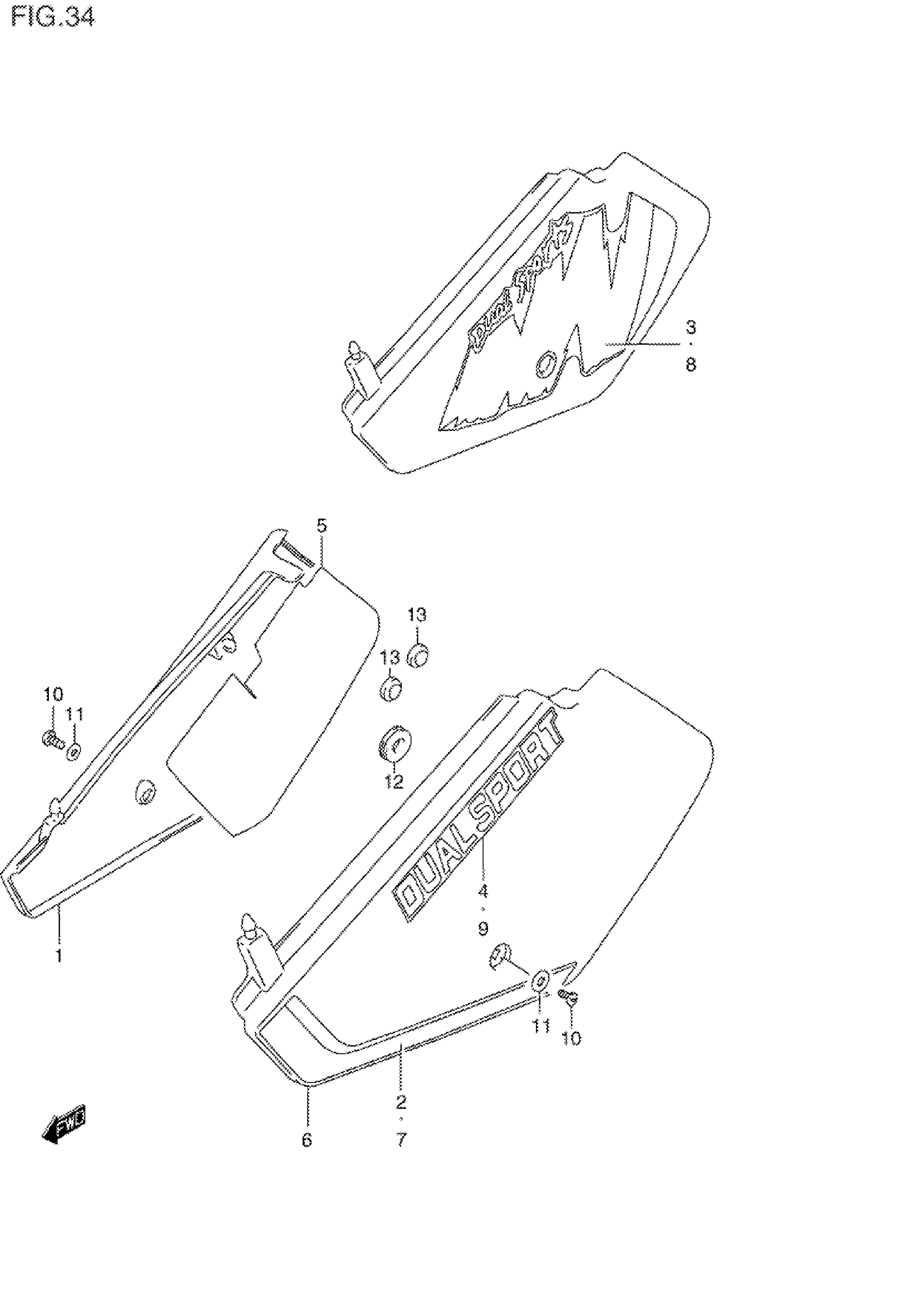

1996 Suzuki DR350SET Frame Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

1
Out of stock

2

TAPE, FRAME COVER RH | MODEL L

68135-14D01-B26

1
Out of stock

3

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68135-14D20-0WE.

68135-14D21-0WE

1
Out of stock

4

EMBLEM | MODEL L

68131-14D00-8YM

1
Out of stock

5

SHIELD, FRAME COVER RH

47166-14D00

1
Out of stock

6

COVER, FRAME LH (WHITE)

47211-15D00-30H

1
Out of stock

7

TAPE, FRAME COVER LH | MODEL L

68145-14D10-B26

1
Out of stock

8

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 68145-14D30-0WE.

68145-14D31-0WE

1
Out of stock

9

EMBLEM | MODEL L

68131-14D00-8YM

1
Out of stock

10

SCREW, SIDE This part replaces 09139-06059.

09139-06050

2
Out of stock

11

2

$2.35

In stock

12

CUSHION, REAR

09320-08029

2
Out of stock

13

CUSHION, MUFFLER

09321-10018

2
Out of stock

14

REFER TO FIG.34A(F-14) FOR

SPECIAL NOTE

—
Out of stock
