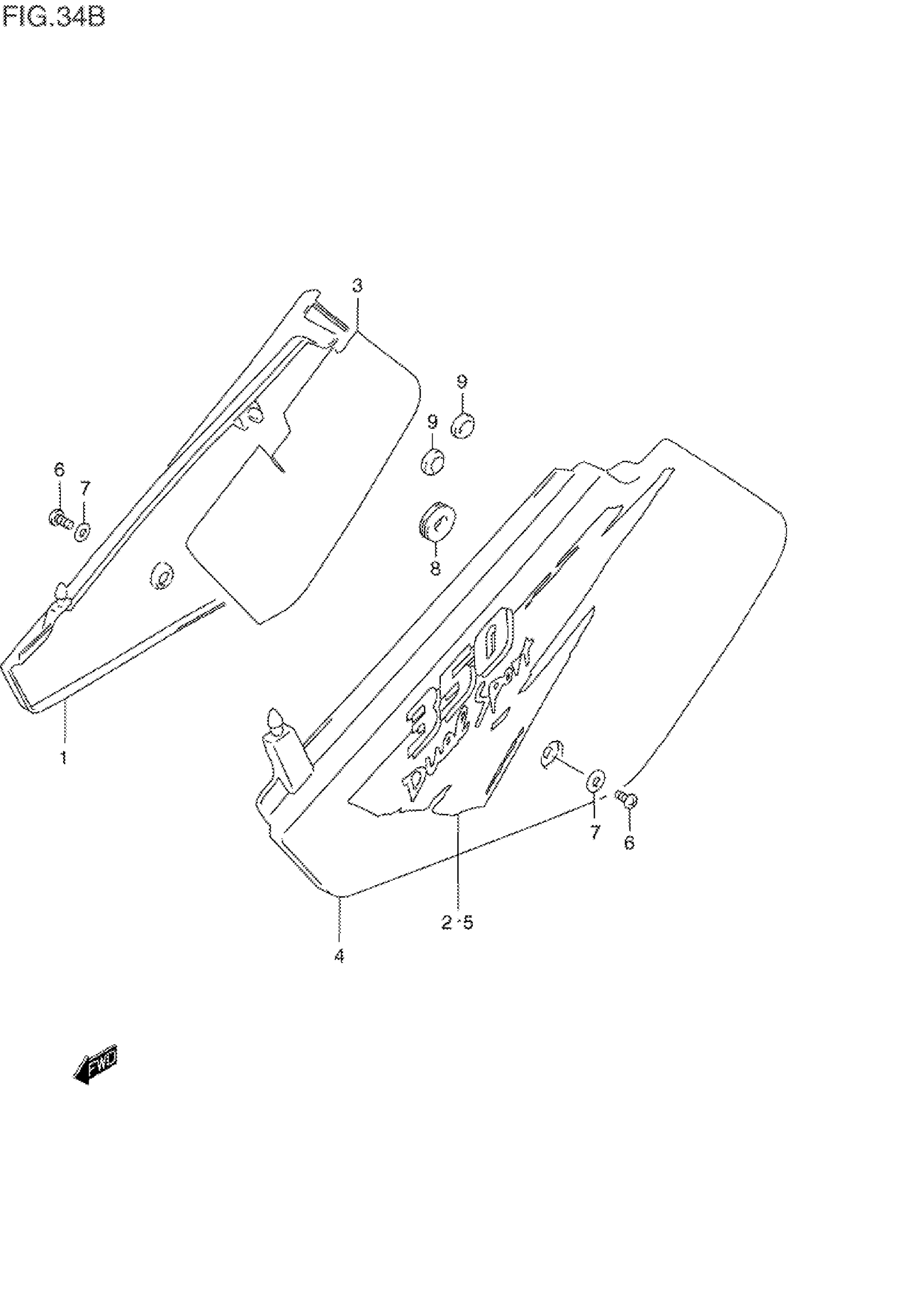

Suzuki DR350SET (1996) FRAME COVER (MODEL T) Diagram

#

Description

Price

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

Unavailable

2

EMBLEM, RH

68135-14E30-Z65

Unavailable

3

SHIELD, FRAME COVER RH

47166-14D00

Unavailable

4

COVER, FRAME LH (WHITE)

47211-15D00-30H

Unavailable

5

EMBLEM, LH

68145-14E30-Z65

Unavailable

6

SCREW

02142-06167

$1.49

7

WASHER This part replaces 09169-06028.

09169-06041

$2.20

8

CUSHION, REAR

09320-08029

$2.41

9

CUSHION, MUFFLER

09321-10018

$5.45
