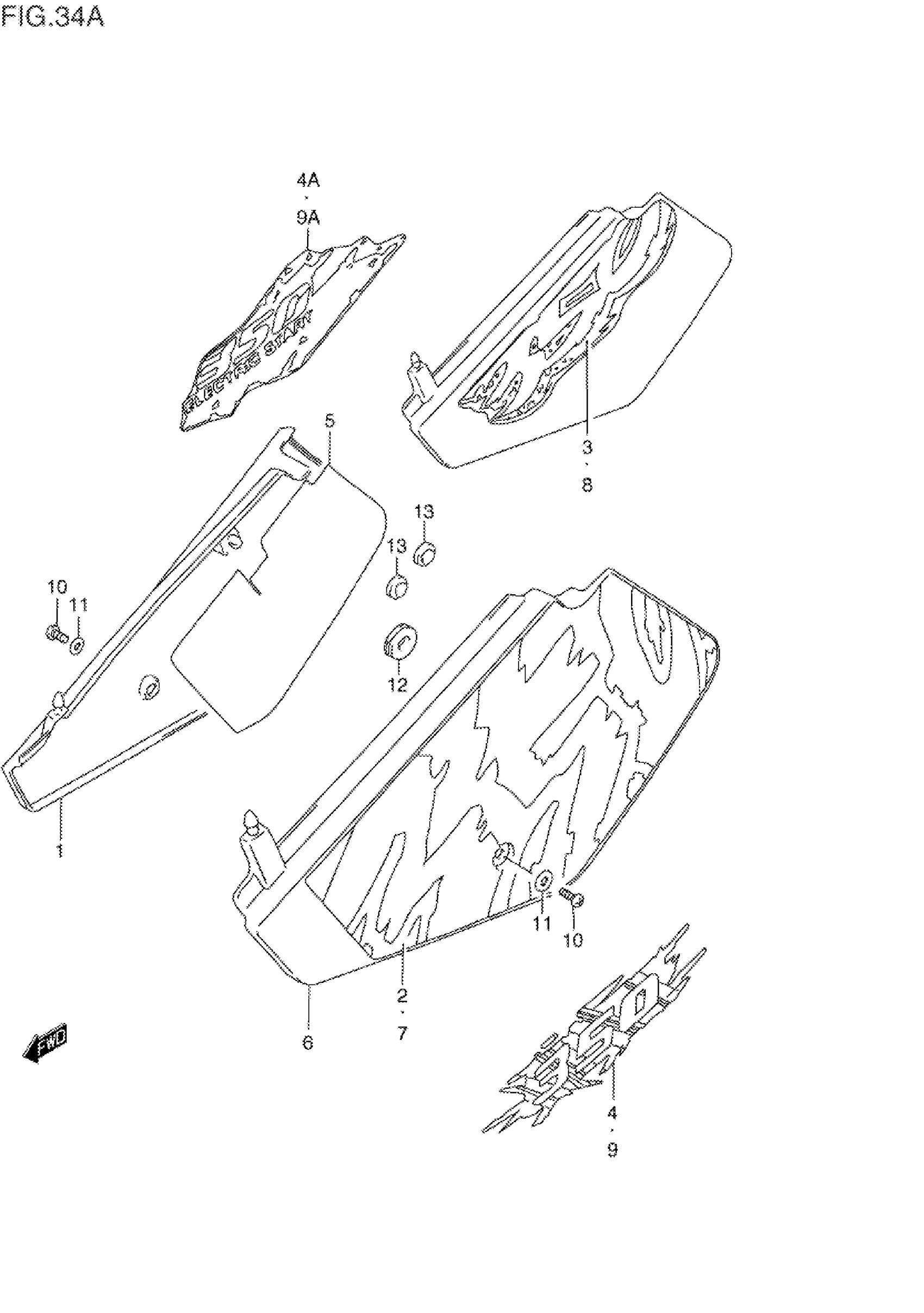

Suzuki DR350SET (1996) FRAME COVER (MODEL N/P/R/S) Diagram

#

Description
Price

1

COVER, FRAME RH (WHITE)

47111-14D00-30H

Unavailable

2

TAPE, FRAME COVER RH | MODEL N

68135-14D70-M82

Unavailable

3

EMBLEM, RH | MODEL P

68131-14E00-A4F

Unavailable

4

EMBLEM, RH | MODEL R

68131-14E10-1YD

Unavailable

4A

EMBLEM, RH | MODEL S

68135-14E00-D1T

Unavailable

5

SHIELD, FRAME COVER RH

47166-14D00

Unavailable

6

COVER, FRAME LH (WHITE)

47211-15D00-30H

Unavailable

7

TAPE, FRAME COVER LH | MODEL N

68145-14D80-M82

Unavailable

8

EMBLEM, LH | MODEL P

68141-14E10-A4F

Unavailable

9

EMBLEM, LH | MODEL R

68131-14E10-1YD

Unavailable

9A

EMBLEM, LH | MODEL S

68145-14E00-D1T

Unavailable

10

SCREW, SIDE | MODEL N/P This part replaces 09139-06073.

09139-06050

$4.73

10

SCREW | MODEL R/S

02142-06167

$1.49

11

WASHER This part replaces 09169-06028.

09169-06041

$2.20

12

CUSHION, REAR

09320-08029

$2.41

13

CUSHION, MUFFLER

09321-10018

$5.45

14

REFER TO FIG.34B(F-15) FOR

SPECIAL NOTE

Unavailable
