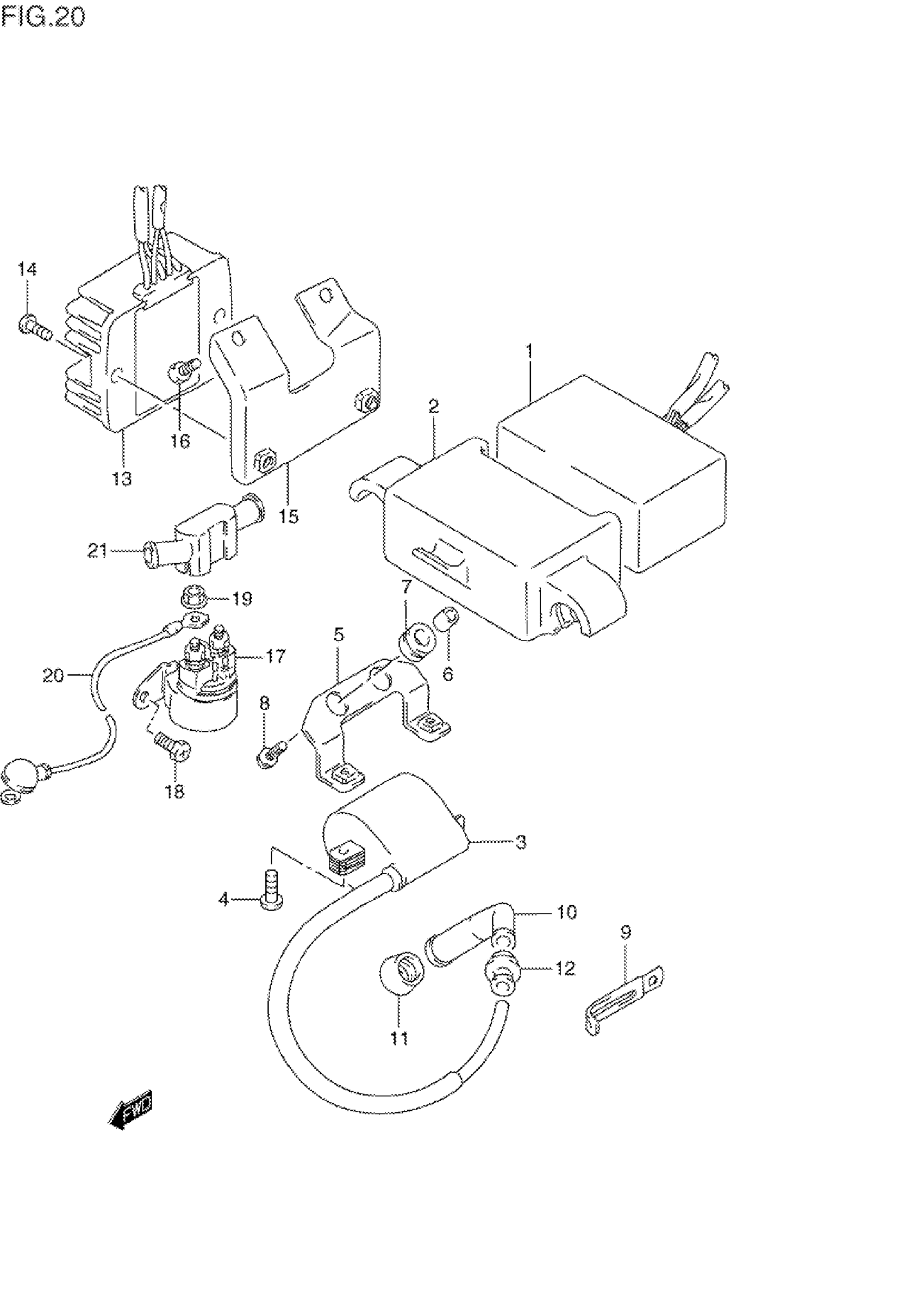

Suzuki DR350SET (1996) ELECTRICAL Diagram

#

Description
Price

1

CDI UNIT | MODEL L/M/N

32900-14D10

Unavailable

1

CDI UNIT | MODEL P

32900-14D40

Unavailable

1

CDI UNIT | MODEL R/S/T

32900-14D50

Unavailable

2

CUSHION

32980-14D00

Unavailable

3

COIL ASSY,IGNIT This part replaces 33410-14D00.

33410-14D01

$116.75

4

SCREW | MODEL L/M/N/P This part replaces 02112-06206.

02112-0620A

$1.49

4

SCREW | MODEL R/S/T This part replaces 02112-06203.

02112-0620A

$1.49

5

BRACKET, IGNITION COIL

33416-14D00

Unavailable

6

SPACER This part replaces 09180-06027.

09180-06258

$1.81

7

CUSHION

09320-09036

$4.32

8

BOLT | MODEL L/M/N/P

01114-06166

Unavailable

8

BOLT | MODEL R/S/T This part replaces 01560-06163.

01560-0616A

Unavailable

9

CLAMP (L:60) | MODEL L/M/N/P/R/S This part replaces 09404-06422.

09404-06429

$1.83

9

CLAMP (L:60) | MODEL T

09404-06429

$1.83

10

CAP, SPARK PLUG

33510-43010

$24.99

11

SEAL, SPARK PLUG | MODEL L/M/N/P This part replaces 33541-24510.

33541-47D00

$7.83

11

SEAL, SPARK PLUG | MODEL R/S/T

33541-47D00

$7.83

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

RECTIFIER | MODEL L/M/N/P/R/S This part replaces 32800-14D10.

32800-14D11

$297.98

13

RECTIFIER | MODEL T

32800-14D11

$297.98

14

SCREW | MODEL L/M/N/P This part replaces 02112-06164.

02112-0616A

$1.49

14

SCREW | MODEL R/S/T This part replaces 02112-06163.

02112-0616A

$1.49

15

BRACKET, RECTIFIER | MODEL L/M This part replaces 32831-14D01.

32831-14D03

Unavailable

15

BRACKET, RECTIFIER | MDOEL N/P/R/S/T

32831-14D03

Unavailable

16

BOLT | MODEL L/M/N/P This part replaces 01107-06165.

01500-0616A

$1.78

16

BOLT | MODEL R/S/T This part replaces 01550-06163.

01550-0616A

$1.97

17

RELAY ASSY, STARTING MOTOR | MODEL R/S/T

31800-49100

$97.31

18

BOLT (6X10) | MODEL R/S/T

09128-06044

$1.49

19

NUT | MODEL R/S/T This part replaces 08361-35068.

08361-3506A

$1.80

20

WIRE, STARTING LEAD | MODEL R/S This part replaces 33810-15D01.

33850-00A01

Unavailable

20

WIRE, STARTING LEAD | MODEL T

33850-00A01

Unavailable

21

CAP, STARTER RELAY TERMINAL | MODEL R/S/T

31861-24500

Unavailable
