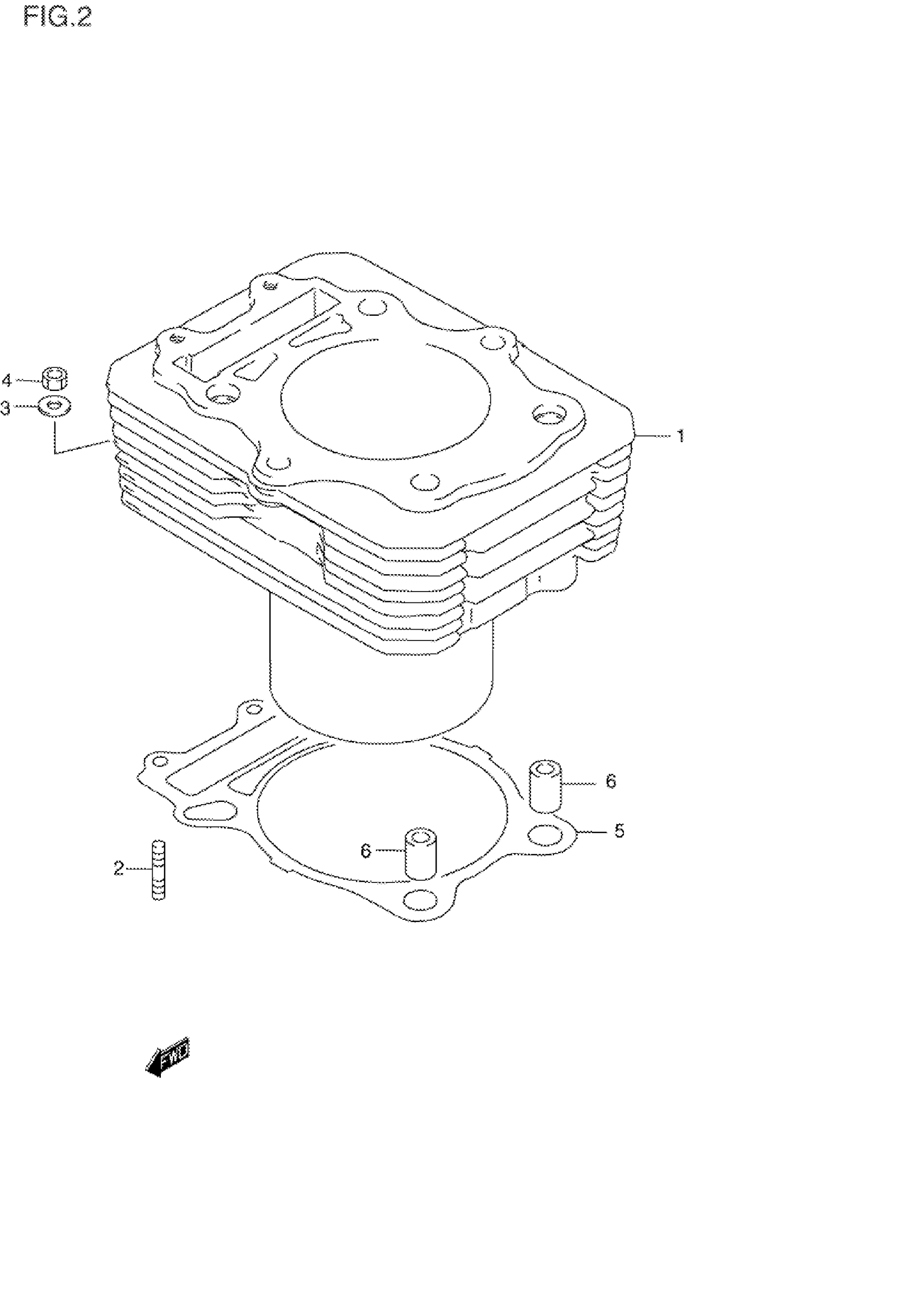

Suzuki DR350SET (1996) CYLINDER Diagram

#

Description
Price

1

CYLINDER | MODEL L This part replaces 11210-14D00-0F0.

11210-47D00-0F0

Unavailable

1

CYLINDER | MODEL M/N This part replaces 11210-14D10-0F0.

11210-47D00-0F0

Unavailable

1

CYLINDER | MODEL P This part replaces 11210-14D11-0F0.

11210-47D00-0F0

Unavailable

1

CYLINDER | MODEL R/S/T

11210-47D00-0F0

Unavailable

2

STUD BOLT This part replaces 01421-06208.

01421-0620A

$1.91

3

.WASHER | MODEL L/M/N/P This part replaces 08322-11068.

08322-0106B

$2.26

3

.WASHER | MODEL R/S/T This part replaces 08322-01063.

08322-0106B

$2.26

4

NUT | MODEL L/M/N/P This part replaces 09140-06022.

09140-06502

$2.72

4

NUT | MODEL R/S/T

09140-06502

$2.72

5

GASKET, CYLINDER

11241-14D01

$13.30

6

PIN | MODEL L/M/N/P This part replaces 09206-13001.

04211-13189

$2.19

6

PIN | MODEL R/S/T

04211-13189

$2.19
