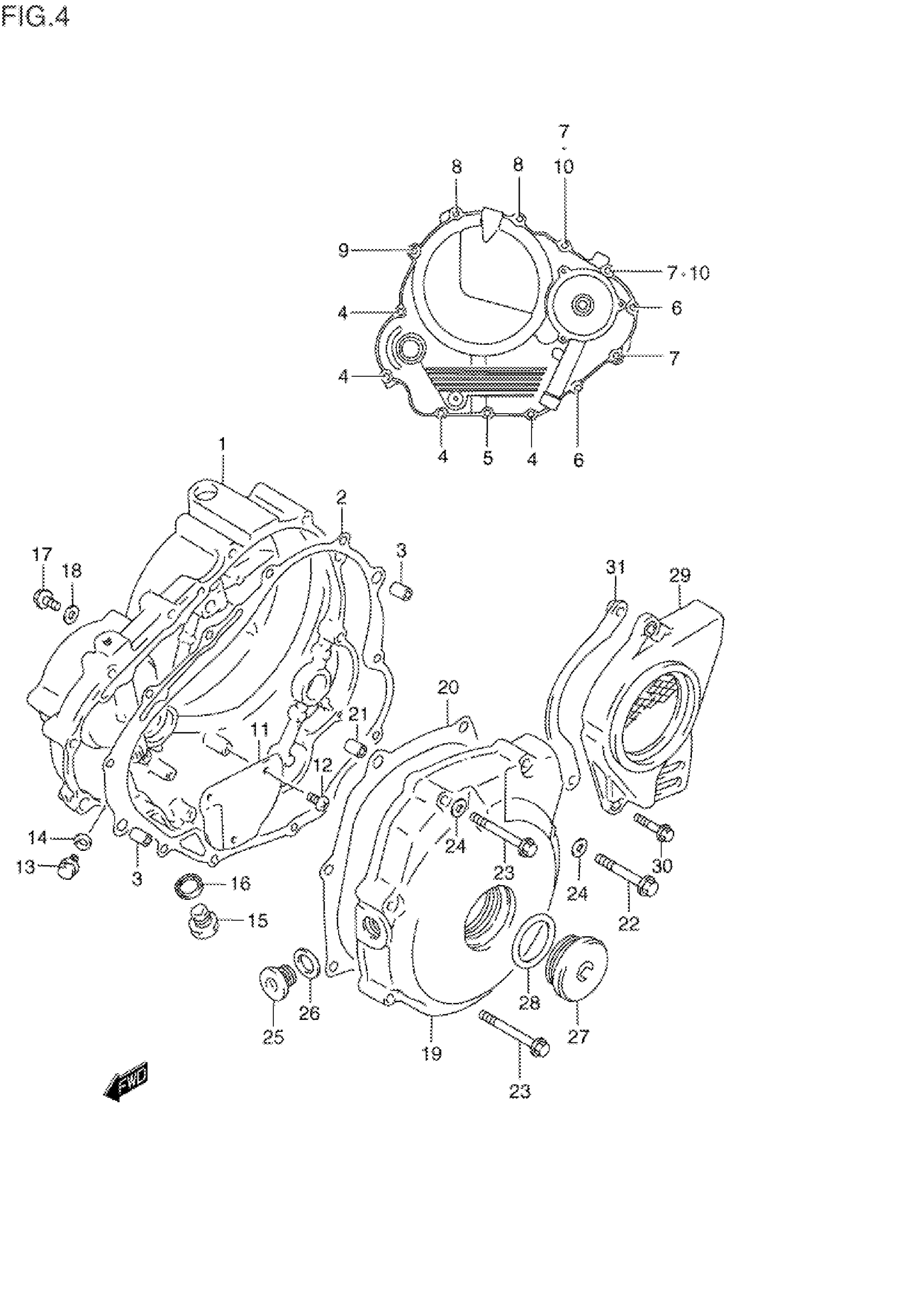

Suzuki DR350SET (1996) CRANKCASE COVER (MODEL L/M/N/P) Diagram

#

Description
Price

1

COVER SET,CLUTC | MODEL L This part replaces 11341-14D01.

11340-47811

$289.37

1

COVER SET,CLUTC | MODEL M/N This part replaces 11341-14D02.

11340-47811

$289.37

1

COVER SET,CLUTC | MODEL P This part replaces 11341-14D05.

11340-47811

$289.37

2

GASKET, CLUTCH COVER | MODEL L/M/N This part replaces 11482-14D01.

11482-14D03

$19.41

2

GASKET, CLUTCH COVER | MODEL P This part replaces 11482-14D02.

11482-14D03

$19.41

3

PIN

04211-09149

$1.65

4

BOLT

01547-06257

$2.03

5

BOLT

01547-06307

$2.03

6

BOLT

01547-06357

$2.03

7

BOLT

01547-06407

$2.32

8

BOLT

01547-06607

$3.18

9

BOLT

01547-06657

$2.75

10

GASKET

09168-06023

$2.35

11

SEPARATOR, OIL RETURN

11349-14D00

Unavailable

12

SCREW (5X10)

09125-05042

$1.96

13

PLUG, OIL GALLERY

09103-06078

$1.78

14

GASKET

09168-06004

$1.49

15

PLUG, SHAFT | MODEL L/M/N This part replaces 09248-14005.

09248-14011

$2.98

15

PLUG, OIL GALLERY | MODEL P

09248-10007

$6.50

16

GASKET | MODEL L/M/N

09168-14004

$1.83

16

GASKET | MODEL P

09168-10002

$2.13

17

BOLT (6X10) This part replaces 09128-06043.

09128-06058

$1.98

18

GASKET

09168-06023

$2.35

19

COVER, MAGNETO | MODEL L/M/N

11351-14D02

Unavailable

19

COVER, MAGNETO | MODEL P

11351-14D10

Unavailable

20

GASKET, MAGNETO COVER | MODEL L/M/N This part replaces 11483-14D01.

11483-14D03

$18.29

20

GASKET, MAGNETO COVER | MODEL P

11483-14D03

$18.29

21

PIN

04211-09149

$1.65

22

BOLT | MODEL L/M/NMODEL P

01547-06357

$2.03

23

BOLT | MODEL L/M/NMODEL P

01547-06457

$2.32

24

GASKET

09168-06023

$2.35

25

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

26

GASKET

09168-14004

$1.83

27

PLUG, CRANK HOLE

09259-36016-20H

$13.80

28

.O-RING (D:3.1,ID:32.7)

09280-33004

$2.23

29

COVER, ENGINE SPROCKET

11360-14D01

$89.43

30

BOLT

01547-06257

$2.03

31

PLATE, FRONT CHAIN GUIDE

27640-14D01

Unavailable

32

REFER TO FIG.4A(B-9) FOR

SPECIAL NOTE

Unavailable
