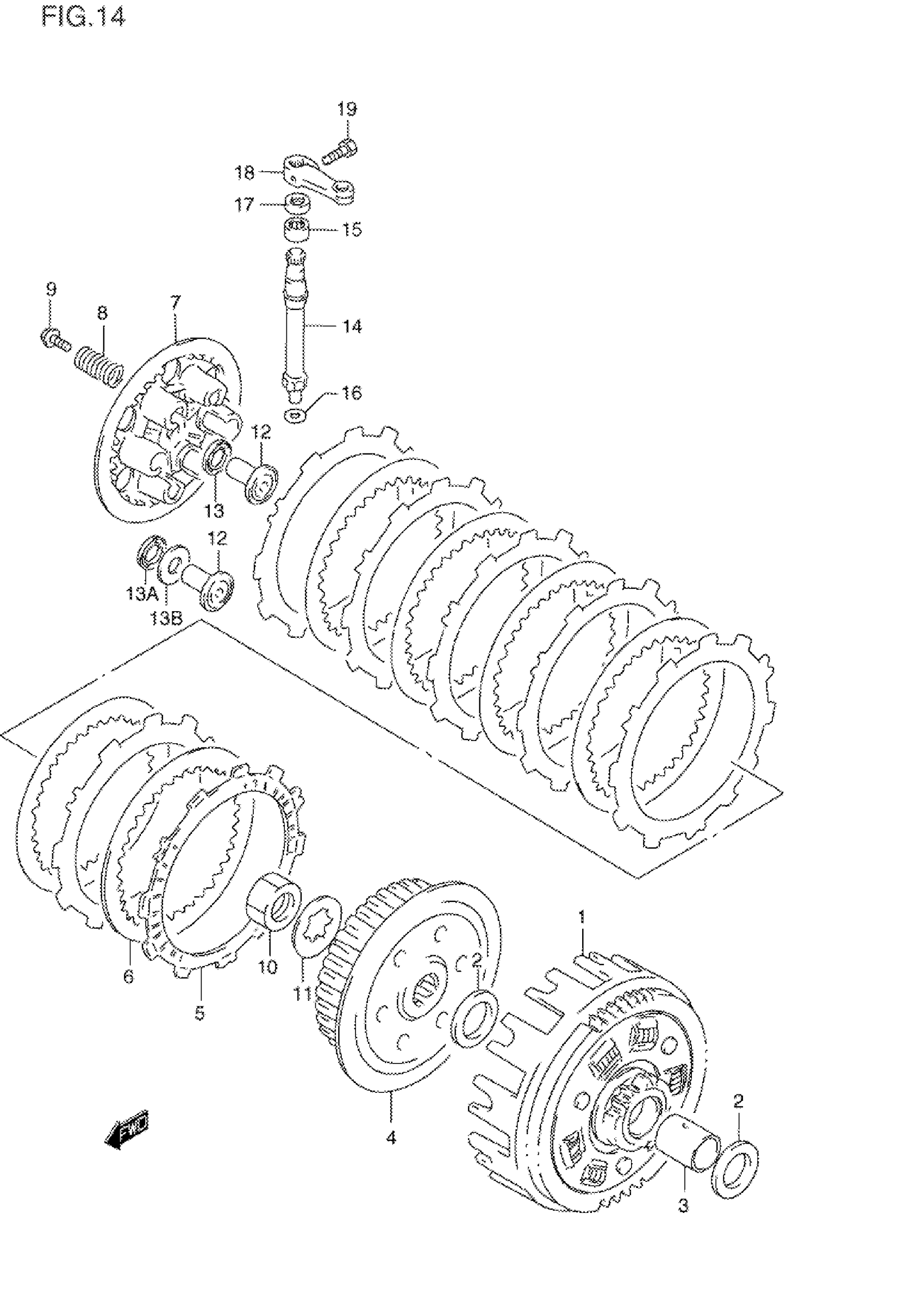

Suzuki DR350SET (1996) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:62/15,MODEL L/M/N This part replaces 21200-14D10.

21200-14D11

$328.45

1

GEAR ASSY, PRIMARY DRIVEN | NT:62/15,MODEL P

21200-14D11

$328.45

1

GEAR ASSY, PRIMARY DRIVEN | NT:64/15,MODEL R/S/T

21200-15D21

Unavailable

2

WASHER

08211-20363

$3.18

3

SPACER (20x25x29)

09180-20109

$14.74

4

HUB, SLEEVE

21410-14D00

$131.98

5

PLATE, DRIVE NO.1 | MODEL L/M/N This part replaces 21441-12D00.

21441-12D01

$20.64

5

PLATE, DRIVE (T:2.8) | MODEL P/R/S/T

21441-12D01

$20.64

6

PLATE,CLUTCH DRIVEN (T:1.6) | MODEL L/M/N This part replaces 21451-14D00.

21451-28C31

$11.81

6

PLATE,CLUTCH DRIVEN (T:1.6) | MODEL P/R/S/T This part replaces 21451-28C30.

21451-28C31

$11.81

7

DISC, PRESSURE

21462-00B02

$57.67

8

SPRING

09440-15014

$3.37

9

BOLT (5X16) This part replaces 09116-05003.

09116-05020

$2.03

10

NUT This part replaces 09140-20002.

09140-20001

$3.37

11

LOCK WASHER

09167-20009

$2.03

12

RACK,CLUTCH RELEASE | MODEL L/M/N/P/R This part replaces 23165-00B00.

23165-44B01

$24.92

12

RACK,CLUTCH RELEASE | MODEL S/T

23165-44B01

$24.92

13

THRUST BEARING (10.1X22X2.8) | ~F.NO.JS1SK42A S2101971

09263-10002

$10.19

13A

THRUST BEARING (10X24X2.0) | F.NO.JS1SK42A S2101972~

09263-10016

$10.20

13B

WASHER, BRG THR | F.NO.JS1SK42A S2101972~

08211-10241

$2.38

14

PINION (NT:12)

23261-14D02

$59.07

15

BEARING (12X16X10)

09263-12024

$12.67

16

WASHER (8X14X1.0) This part replaces 08211-08141.

09181-08139

$1.91

17

OIL SEAL

09285-10004

$3.37

18

ARM, CLUTCH RELEASE | MODEL L/M/N This part replaces 23271-20900.

23271-20902

$29.60

18

ARM, CLUTCH RELEASE | MODEL P/R/S/T This part replaces 23271-20901.

23271-20902

$29.60

19

BOLT, CANISTER | MODEL L/M/N/P This part replaces 01107-06167.

01500-06167

$1.97

19

BOLT | MODEL R/S/T This part replaces 01500-06163.

01500-0616A

$1.78
