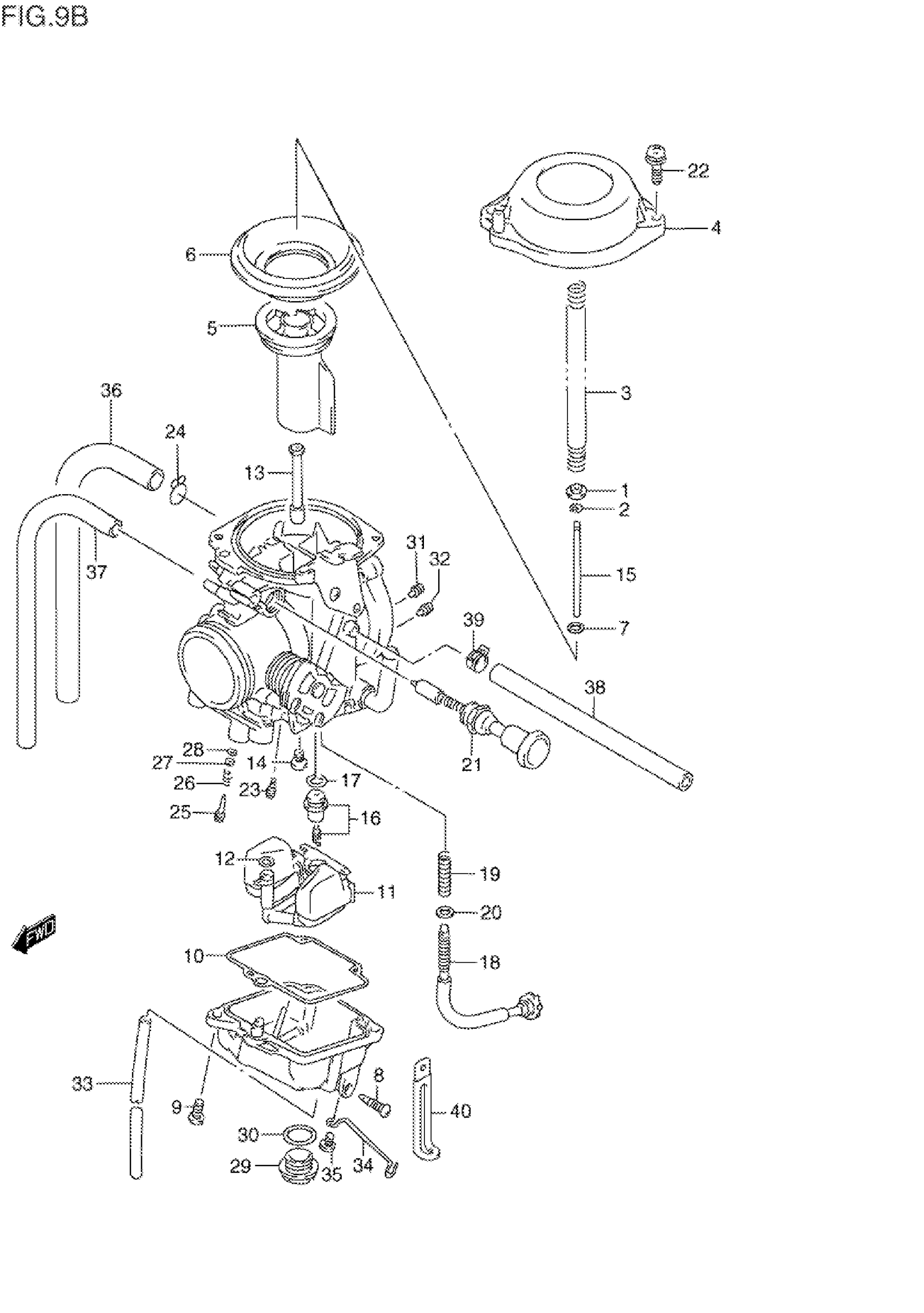

Suzuki DR350SET (1996) CARBURETOR (MODEL R/S/T) Diagram

#

Description
Price

CARBURETOR ASSY This part replaces 13200-14EP0.

13200-14EP1

Unavailable

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 1 - 39 This part replaces 13200-14ES0.

13200-14ES1

Unavailable

1

RING

13382-42A00

$4.48

2

E RING

13394-01D00

$4.64

3

SPRING

13417-44B00

$8.67

4

COVER, DIAPHRAGM

13502-01D00

$34.27

5

VALVE, PISTON

13551-44B10

$91.95

6

DIAPHRAGM This part replaces 13507-44B00.

13507-44B01

$24.15

7

RING

13387-47010

$7.22

8

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

9

SCREW | MODEL R This part replaces 13602-05128.

02112-05127

$1.97

9

SCREW | MODEL S/T

02112-05127

$1.97

10

GASKET, FLOAT CHAMBER

13258-44B00

$9.78

11

FLOAT ASSY

13240-17E10

$67.73

12

.O RING

13374-46710

$4.48

13

JET, NEEDLE (0-6M) This part replaces 09494-00691.

09494-00883

Unavailable

14

JET, MAIN (127.5)

09491-25011

$11.38

15

NEEDLE, JET (5CD16-1)

13383-14D20

Unavailable

16

VALVE ASSY,NEED This part replaces 13370-44B00.

13370-02D01

$55.60

17

O RING This part replaces 13374-44080.

13374-35C00

$5.99

18

ADJUSTER

13267-15E00

$63.48

19

SPRING

13268-31210

$5.33

20

WASHER

13615-43010

$3.25

21

PLUNGER ASSY | MODEL R/S This part replaces 13441-14E00.

13411-14E10

$52.10

21

PLUNGER ASSY | MODEL T This part replaces 13411-14E00.

13411-14E10

$52.10

22

SCREW | MODEL R/S This part replaces 13602-34390.

02112-7516A

$2.41

22

SCREW | MODEL T This part replaces 02112-75163.

02112-7516A

$2.41

23

JET, PILOT (37.5)

09492-35010

$9.32

24

CLIP This part replaces 09401-10410.

09401-10401

$1.49

25

SCREW, PILOT (1 3/4)

13279-47070

$13.36

26

.SPRING (NT:45)

13268-47070

$4.34

27

WASHER

13291-29900

$1.98

28

O-RING This part replaces 13295-29900.

13295-29901

$4.34

29

CAP, DRAIN

13247-32210

$15.23

30

O RING

13249-41310

$4.40

31

JET, AIR (1.3)

09493-26004

$17.02

32

JET, AIR (0.6)

09493-60004

$16.87

33

.HOSE (3X5X600) | L:600->150 This part replaces 09352-30503-600.

09352-30504-600

$4.91

34

CLAMP

13671-15D60

$18.48

35

SCREW

02112-05087

$1.49

36

HOSE(7X11X600) | L:600->200 This part replaces 09352-70113-600.

09352-70119-600

$10.40

37

HOSE(4.5X8.5X60 | L:600->250 This part replaces 09354-45853-600.

09355-45001-600

$9.48

38

VALVE ASSY, CHECK | MODEL R/S This part replaces 13683-35B00.

13520-02C01

$50.10

38

HOSE,5X10X600 | MODEL T L:600->250 This part replaces 09352-50823-600.

44421-13ER0

$10.06

39

CLIP

13671-14E00

$5.82

40

CLAMP | MODEL R/S This part replaces 09404-06402.

09404-06039

$1.74

40

CLAMP | MODEL T

09404-06429

$1.83
