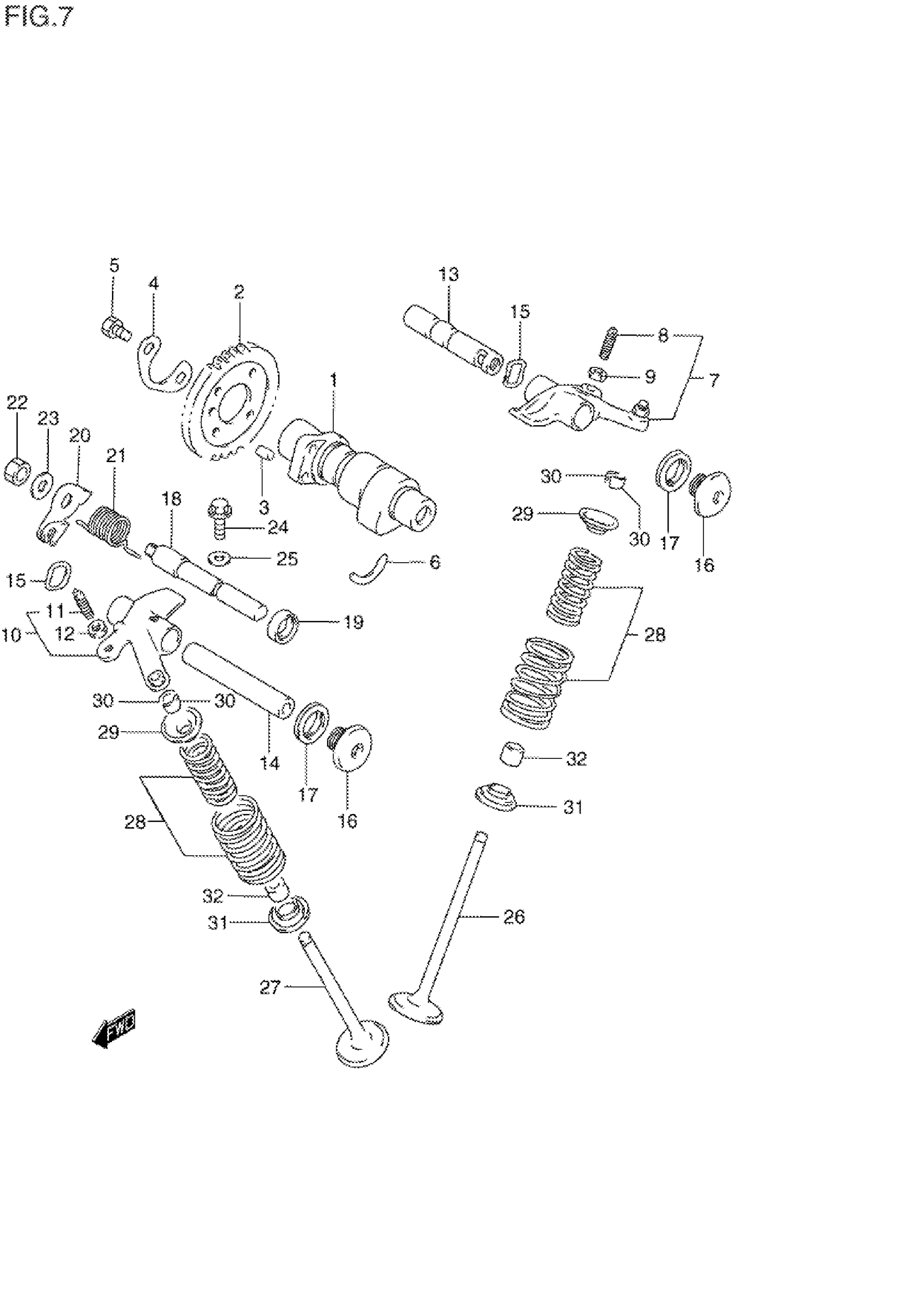

Suzuki DR350SET (1996) CAM SHAFT - VALVE (MODEL L/M/N/P) Diagram

#

Description
Price

1

CAM SHAFT

12711-14D01

Unavailable

2

SPROCKET (NT:34)

12741-26B00

$53.73

3

PIN

09261-05005

$1.49

4

WASHER | MODEL L/M/N This part replaces 12747-26B00.

12747-26B01

$4.35

4

WASHER | MODEL P

12747-26B01

$4.35

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9

12840-14D00

Unavailable

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12

12850-14D00

Unavailable

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

13

SHAFT, ROCKER ARM IN | L:67

12861-14D00

Unavailable

14

SHAFT, ROCKER ARM EX | L:67

12871-14D00

Unavailable

15

WASHER

09164-12018

$1.49

16

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

17

GASKET

09168-14004

$1.83

18

SHAFT, DECOMPRESSION

12941-14D02

Unavailable

19

OIL SEAL

09282-10014

$6.70

20

LEVER,DECOMP SH This part replaces 12942-14D00.

12942-14D0V

$5.47

21

NO DESCRIPTION AVAILABLE This part replaces 09448-18028.

09448-18028-XC0

Unavailable

22

NUT, ADJUSTER This part replaces 08310-22085.

09140-08021

$2.63

23

WASHER This part replaces 08322-11084.

08322-0108A

$1.92

24

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

25

GASKET

09168-06026

$3.10

26

VALVE,INTAKE This part replaces 12911-14D01.

12911-14D10

$38.13

27

VALVE,EXHAUST

12912-14D01

$60.40

28

SPRING SET, VALVE

12920-06B00

$13.81

29

RETAINER, SPRING

12931-27A01

$8.42

30

COTTER, VALVE

12932-27A00

$2.26

31

SEAT,VALVE SPRING | OD:22 This part replaces 12933-27A00.

12933-81400

$5.17

31

SEAT,VALVE SPRING | OD:23

12933-81400

$5.17

32

OIL SEAL

09289-05011

$6.32

33

REFER TO FIG.7A(B-14) FOR

SPECIAL NOTE

Unavailable
