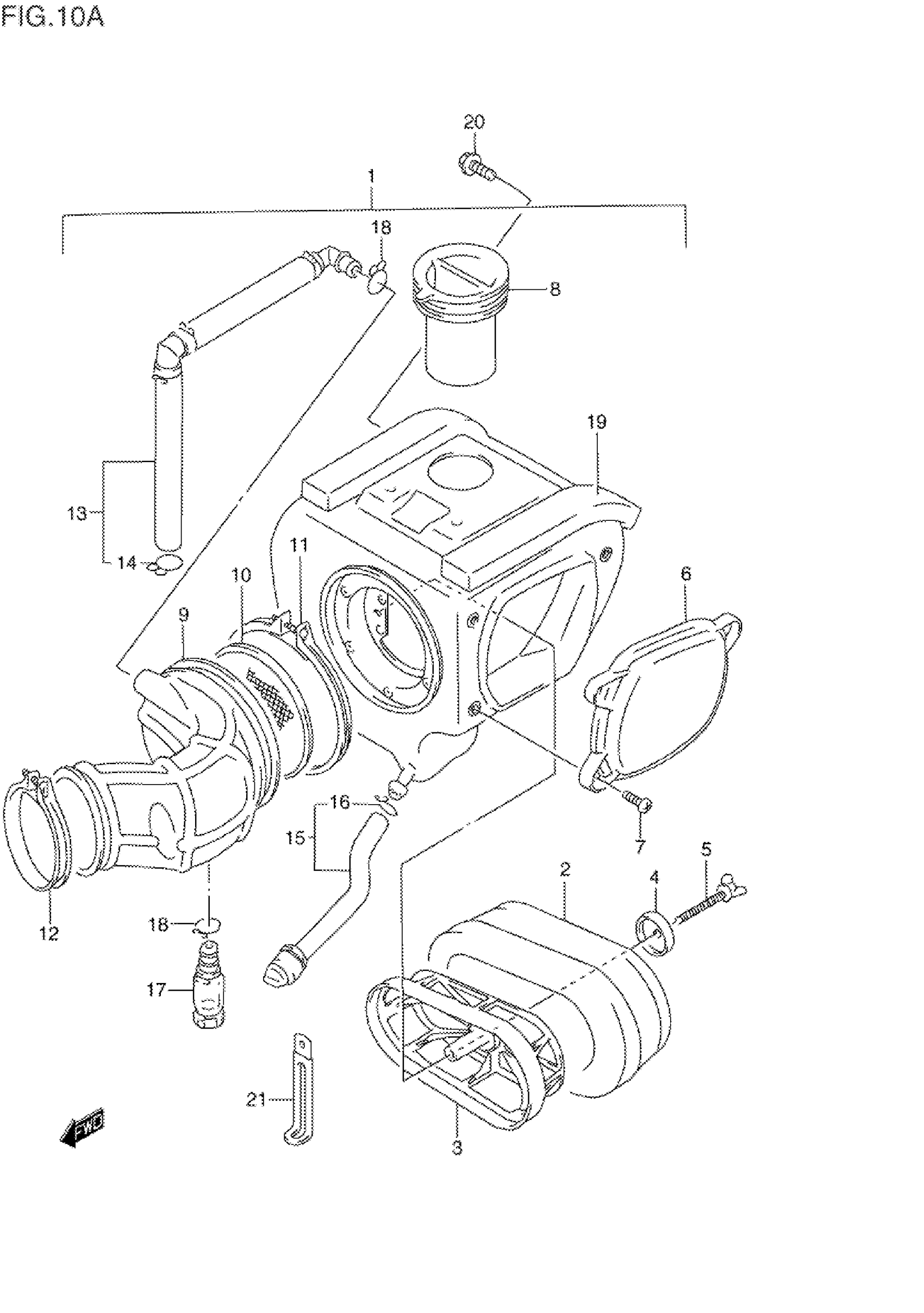

Suzuki DR350SET (1996) AIR CLEANER (MODEL R/S/T) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19

13700-14D40

Unavailable

2

FILTER

13780-14D02

$45.60

3

HOLDER, FILTER

13791-14D00

$21.09

4

WASHER

13792-13A01

$4.34

5

BOLT, WING

13831-02B00

$5.80

6

CAP, AIR CLEANER

13740-14D00

$24.75

7

SCREW

02142-05207

$1.49

8

TUBE,INLET This part replaces 13891-14D10.

13891-14D11

$20.78

9

TUBE,OUTLET This part replaces 13881-14D30.

13881-14D31

$76.02

10

TRAP, FRAME

13810-14D02

$11.63

11

.CLAMP, OUTLET TUBE

13826-14D01

$9.32

12

CLAMP

09402-66208

$5.57

13

TUBE, BREATHER

13850-14D41

Unavailable

14

CLIP

09401-14301

$2.35

15

TUBE, DRAIN, A

13870-14D20

Unavailable

16

CLIP

09401-14301

$2.35

17

TUBE, DRAIN, B | MODEL R

13872-14D00

$19.15

17

TUBE,DRAIN | MODEL S/T This part replaces 13870-11458.

13870-11459

$15.51

18

CLIP

09401-14301

$2.35

19

CUSHION

13736-14D20

Unavailable

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

CLAMP | MODEL R This part replaces 09404-08405.

09404-08420

$3.16

21

CLAMP | MODEL S This part replaces 09404-08404.

09404-08420

$3.16

21

CLAMP (L:80) | MODEL T This part replaces 09404-08419.

09404-08422

$2.65
