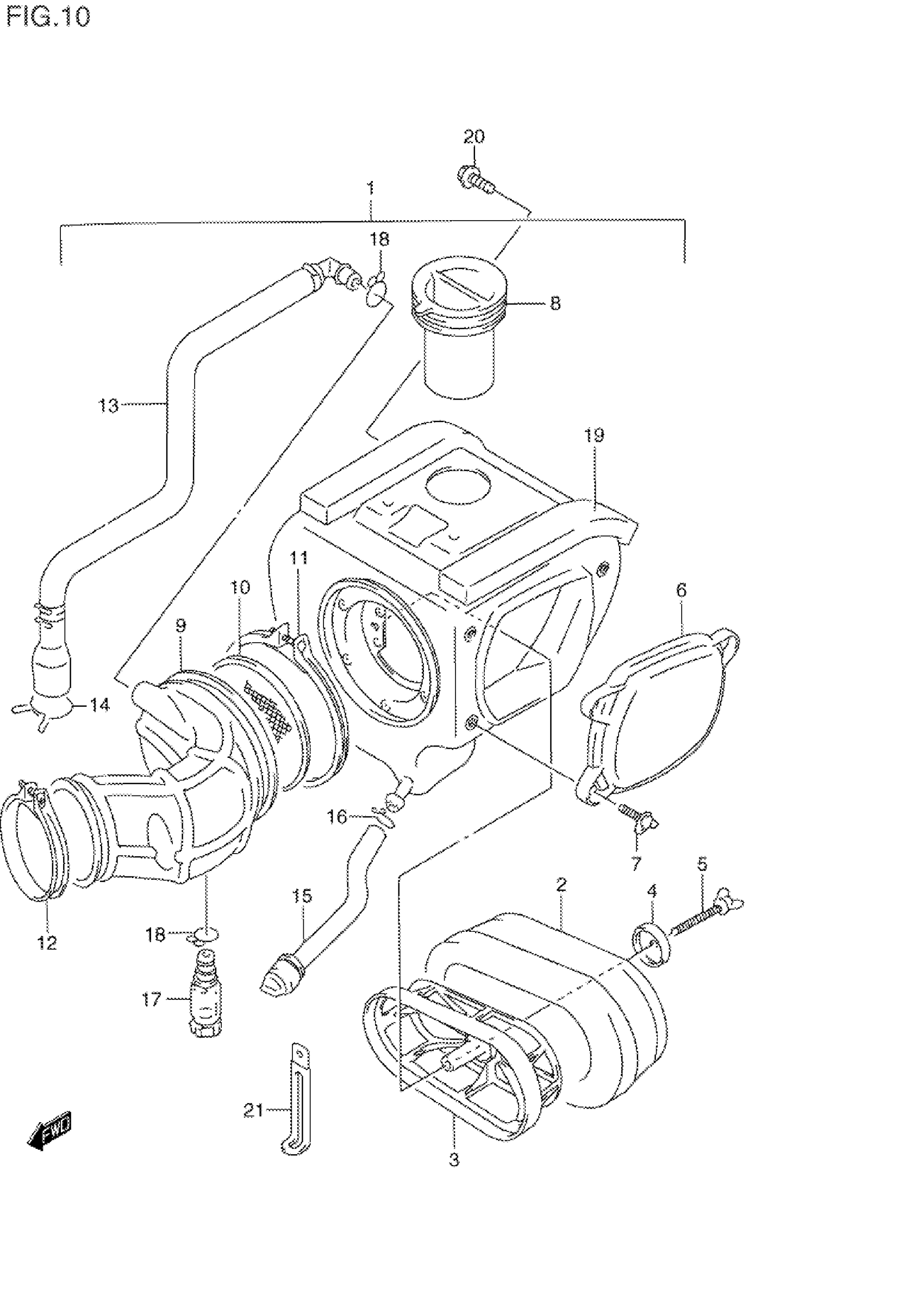

Suzuki DR350SET (1996) AIR CLEANER (MODEL L/M/N/P) Diagram

#

Description
Price

1

CLEANER ASSY, AIR | MODEL L This part replaces 13700-14D10.

13700-14D13

Unavailable

1

CLEANER ASSY, AIR | MODEL M This part replaces 13700-14D12.

13700-14D13

Unavailable

1

CLEANER ASSY, AIR | MODEL N

13700-14D13

Unavailable

1

CLEANER ASSY, AIR | MODEL P; Includes Item(s) 2 - 19

13700-14D14

Unavailable

2

FILTER

13780-14D02

$45.60

3

HOLDER, FILTER

13791-14D00

$21.09

4

WASHER

13792-13A01

$4.34

5

BOLT, WING

13831-02B00

$5.80

6

CAP, AIR CLEANER

13740-14D00

$24.75

7

BOLT, WING | MODEL L This part replaces 13837-14D00.

13837-14D01

Unavailable

7

BOLT, WING | MODEL M/N/P

13837-14D01

Unavailable

8

TUBE,INLET This part replaces 13891-14D10.

13891-14D11

$20.78

9

TUBE, OUTLET | MODEL L This part replaces 13881-14D10.

13881-14D12

Unavailable

9

TUBE, OUTLET | MODEL M/N/P

13881-14D12

Unavailable

10

TRAP, FRAME

13810-14D02

$11.63

11

.CLAMP, OUTLET TUBE | MODEL L This part replaces 13826-14D00.

13826-14D01

$9.32

11

.CLAMP, OUTLET TUBE | MODEL M/N/P

13826-14D01

$9.32

12

CLAMP

09402-66208

$5.57

13

TUBE, BREATHER | MODEL L This part replaces 13850-14D10.

13850-14D22

Unavailable

13

TUBE, BREATHER | MODEL M/N This part replaces 13850-14D11.

13850-14D22

Unavailable

13

TUBE, BREATHER | MODEL P

13850-14D13

Unavailable

14

CLIP

13824-14D00

Unavailable

15

TUBE, DRAIN, A | MODEL L This part replaces 13870-14D00.

13870-14D20

Unavailable

15

TUBE, DRAIN, A | MODEL M/N/P

13870-14D20

Unavailable

16

CLIP

09401-14301

$2.35

17

TUBE, DRAIN, B

13872-14D00

$19.15

18

CLIP

09401-14301

$2.35

19

CUSHION

13736-14D00

Unavailable

20

BOLT This part replaces 01517-06128.

01550-06127

$2.30

21

CLAMP This part replaces 09404-08404.

09404-08420

$3.16

22

REFER TO FIG.10A(C-9) FOR

SPECIAL NOTE

Unavailable
