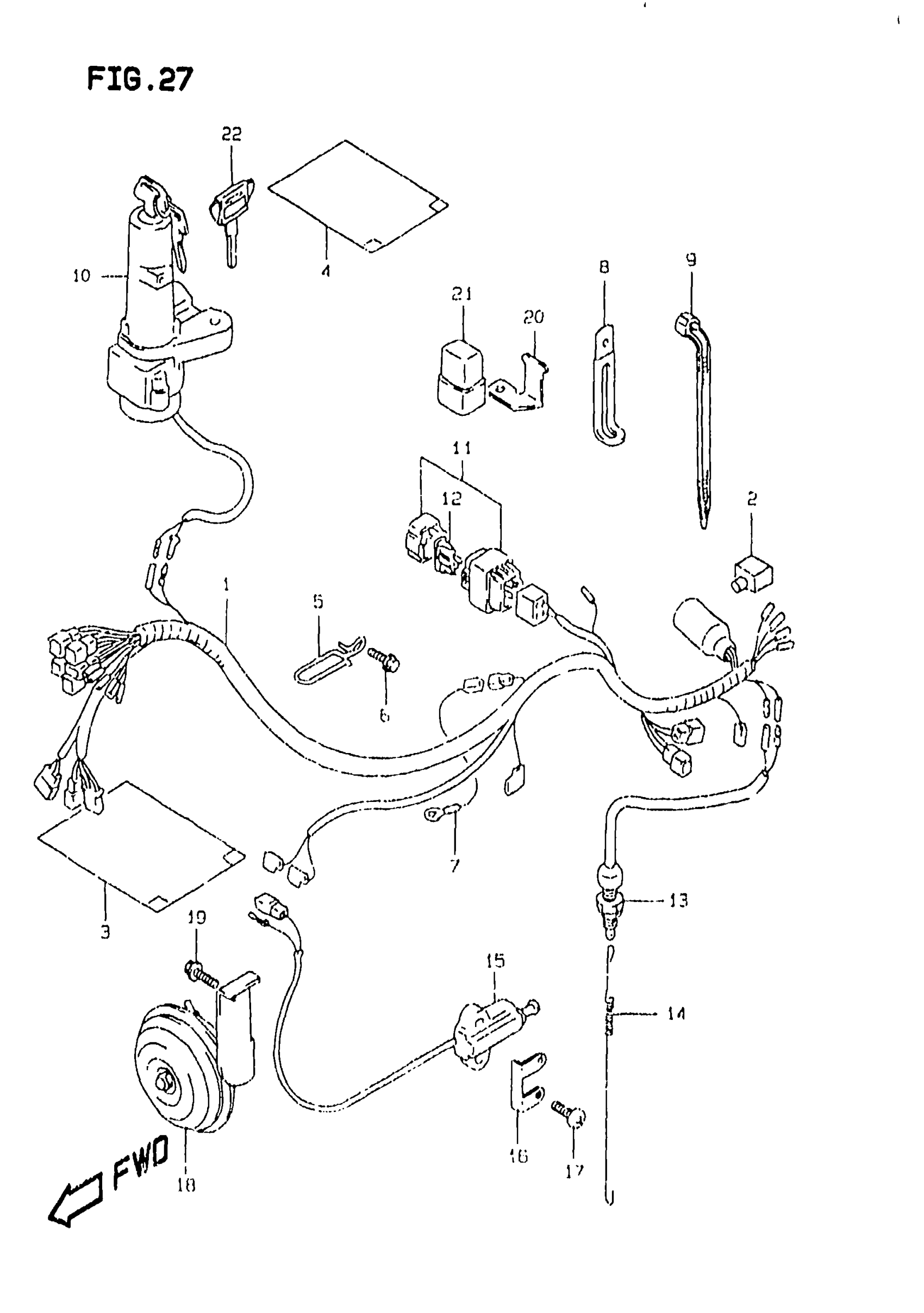

Suzuki DR350SE (1999) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-15D80

Unavailable

2

CAP, BATTERY PLUS

33624-15D00

Unavailable

3

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

4

COVER WIRING HARNESS This part replaces 36618-15D20.

36618-15D21

$18.87

5

GUIDE, WIRE HARNESS

36619-15D11

Unavailable

6

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

7

LEAD WIRE, IGNITION

36851-05D00

$5.82

8

CLAMP (L:60)

09404-06429

$1.83

8

CLAMP This part replaces 09404-06431.

09404-06039

$1.74

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

8

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

9

CLAMP (L:33)

09407-03401

$3.07

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:165)

09407-18402

$2.19

9

CLAMP (L:235)

09407-25401

$4.66

10

LOCK ASSY, STEERING | MODEL V/W

37110-03D01

Unavailable

10

LOCK ASSY, STEERING | MODEL X

37110-03D10

$92.70

11

FUSE ASSY | Includes Item(s) 12

36740-24B01

$28.18

12

FUSE (20A)

09481-20101

$2.12

13

SWITCH ASSY, STOP LAMP

37740-31D00

$28.23

14

SPRING

09443-06080

$4.73

15

SWITCH ASSY,SID This part replaces 37840-12X50.

37840-12X52

$69.30

16

PROTECTOR

37841-14D00

Unavailable

17

SCREW This part replaces 02142-06203.

02142-0620A

$1.49

18

NO DESCRIPTION AVAILABLE | MODEL V/W This part replaces 38500-14D01.

38500-14D02

Unavailable

18

HORN ASSY | MODEL X

38500-15D10

Unavailable

19

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

20

BRACKET, RELAY

36744-14D01

Unavailable

21

RELAY, SIDE STAND

38740-24X50

$45.20

22

KEY, BLANK TYPE C | OPT

37146-03A00

$9.89

22

KEY, BLANK TYPE D | OPT

37146-03A10

$11.63

22

KEY, BLANK TYPE E | OPT

37146-03A20

$12.10

22

KEY, BLANK TYPE F | OPT

37146-03A30

$10.28
