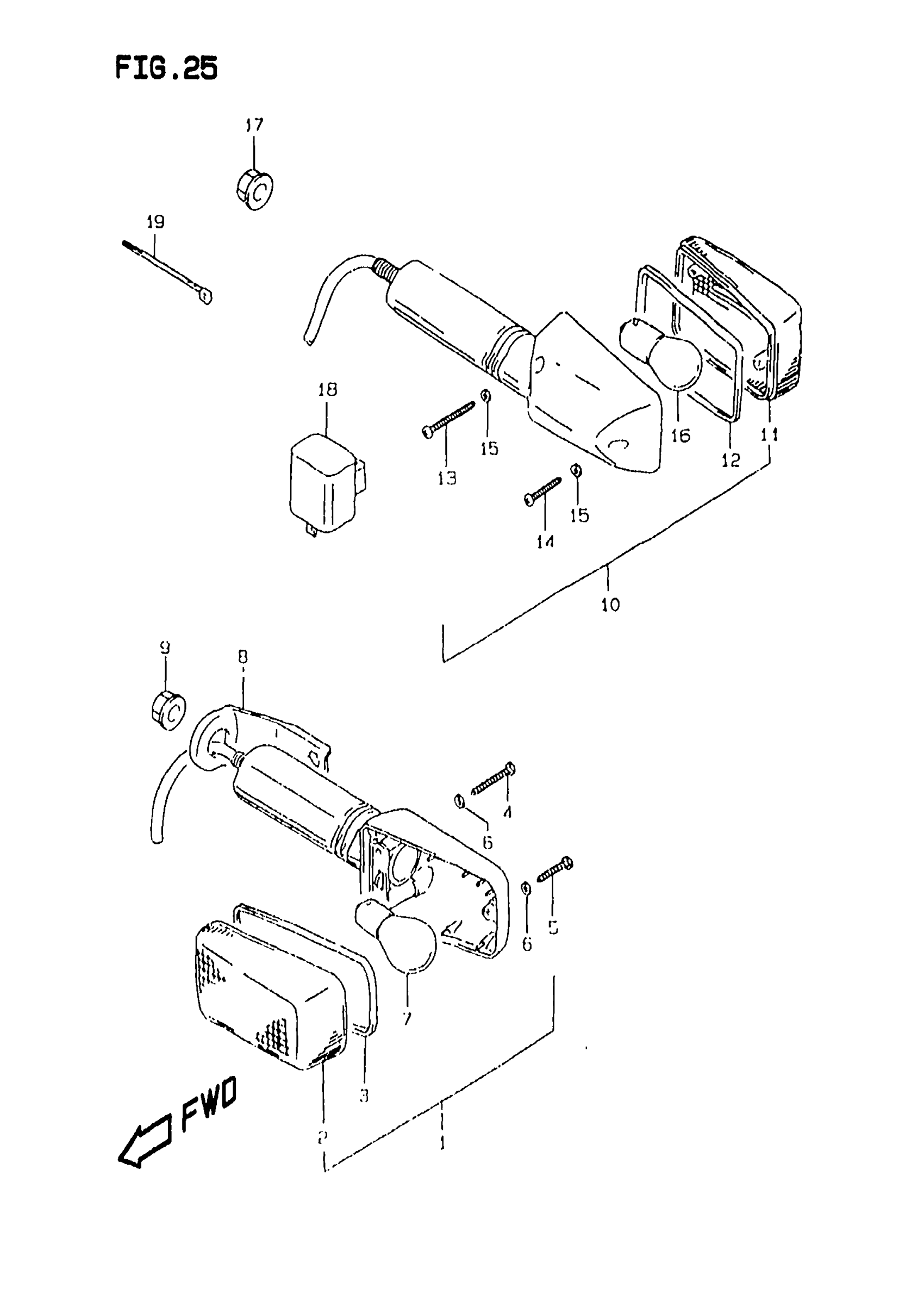

Suzuki DR350SE (1999) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT TURNSIGNAL | Includes Item(s) 2 - 7

35601-29EC0

$110.10

2

LENS

35612-17C20

$10.69

3

GASKET

35613-27A00

$4.52

4

TAPPING SCREW

35623-27A00

$1.65

5

TAPPING SCREW

35725-40511

$1.91

6

GASKET

35627-27A02

$1.58

7

BULB (12V, 21W)

09471-12045

$3.27

8

BRACKET, FRONT RH

35670-14D12

$13.05

8

BRACKET, FRONT LH

35680-14D12

$13.05

9

NUT This part replaces 08316-10103.

08316-1010B

$2.66

10

LAMP ASSY,REAR TURNSIGNAL | Includes Item(s) 11 - 16

35603-29E90

$88.10

11

LENS

35652-17C20

$10.28

12

GASKET

35613-27A00

$4.52

13

TAPPING SCREW

35623-27A00

$1.65

14

TAPPING SCREW

35725-40511

$1.91

15

GASKET

35627-27A02

$1.58

16

BULB (12V,21W)

09471-12045

$3.27

17

NUT This part replaces 08316-10103.

08316-1010B

$2.66

18

RELAY ASSY, TURNSIGNAL

38610-31X50

$80.15

19

CLAMP (L:33)

09407-03401

$3.07
