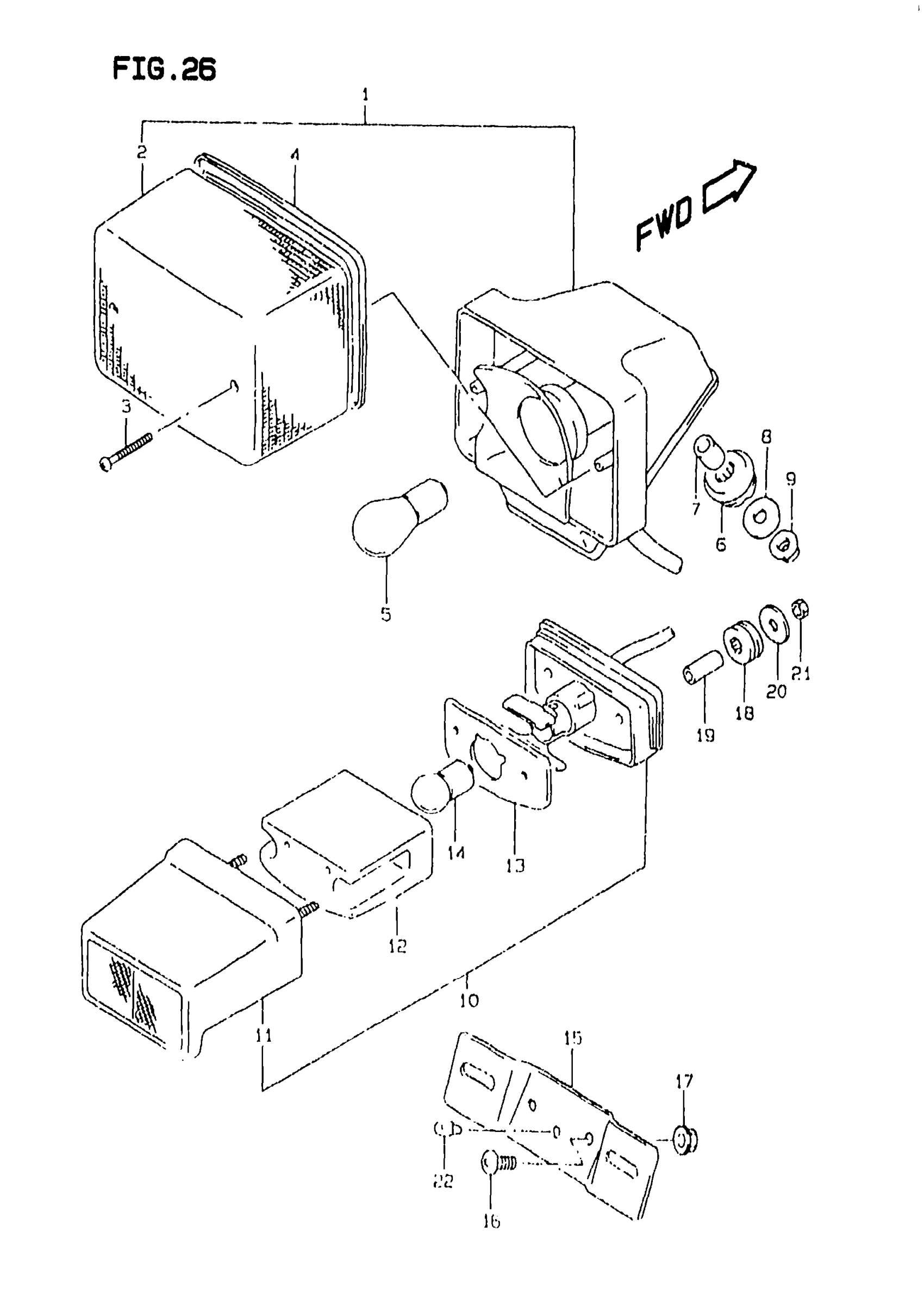

Suzuki DR350SE (1999) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 5

35710-14D30

$143.95

2

LENS

35712-14D30

$62.32

3

SCREW

09125-04501

$3.16

4

.GASKET LENS

35713-14D30

$7.88

5

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

6

CUSHION

09320-09028

Unavailable

7

SPACER (6.5X9X9)

09180-06263

$2.03

8

.WASHER (6.5X20X1.6)

09160-06088

$1.65

9

NUT This part replaces 08310-00063.

08310-0006A

$1.84

10

LAMP ASSY, LICENSE | Includes Item(s) 11 - 14

35910-14D00

Unavailable

11

REFLECTOR & COVER

35917-14D00

Unavailable

12

LENS

35912-38A30

$20.45

13

GASKET

35913-38A30

$3.37

14

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

15

BRACKET, LICENSE PLATE

35927-14D30

$15.42

16

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

17

NUT This part replaces 08316-10063.

08316-1006B

$2.50

18

CUSHION

09320-09009

$4.64

19

SPACER (5.5x9.5x28.5)

09180-05061

Unavailable

20

WASHER (5.5X20X1.2)

09160-05501

$1.84

21

NUT This part replaces 08310-00053.

08310-0005A

$1.84

22

CUSHION, PLATE This part replaces 09321-06029.

09321-06030

$3.93
