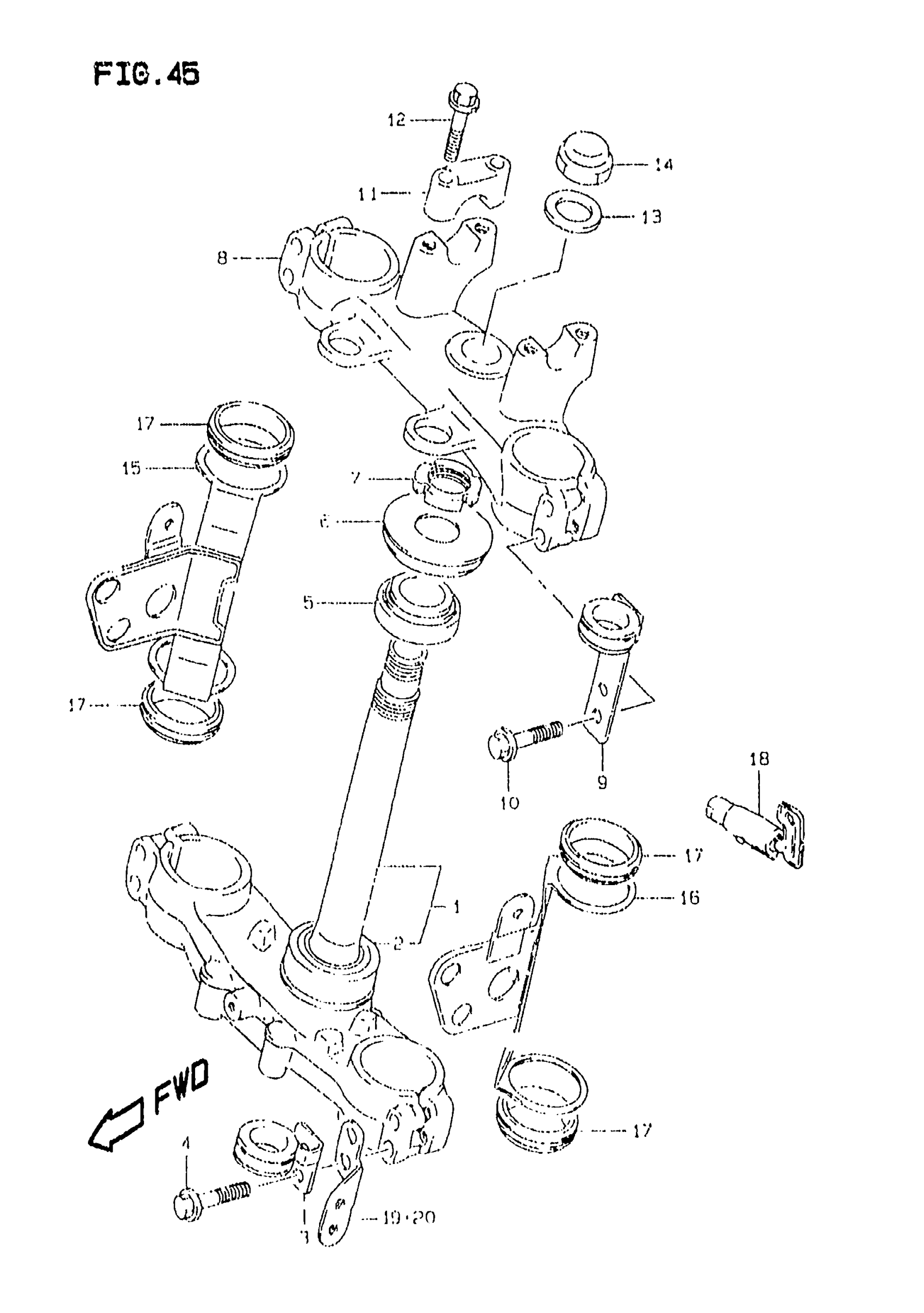

Suzuki DR350SE (1999) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | MODEL V This part replaces 51410-14EA0.

51410-14ED0

Unavailable

1

STEM, STEERING | MODEL W/X; Includes Item(s) 2

51410-14ED0

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

GUIDE, CABLE LH LOWER

51453-03D10

Unavailable

4

BOLT

01550-08407

$3.42

5

BEARING (25X47X15)

09265-25019

$56.53

6

DUST SEAL

51643-40200

$7.96

7

NUT, STEM

51631-40200

Unavailable

8

HEAD, STEERING STEM

51311-14D10

Unavailable

9

GUIDE, CABLE LH UPPER

51288-14D10

Unavailable

10

BOLT This part replaces 01550-08403.

01550-0840A

$3.05

11

HOLDER, HANDLE

56211-27200-291

$17.90

12

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

13

WASHER

51354-14D00

$12.08

14

NUT

51353-24B00

$30.67

15

BRACKET, HOUSING RH

51530-15D00

Unavailable

16

BRACKET, HOUSING LH

51540-15D00

Unavailable

17

DAMPER,HEAD LAMP HSG BRKT This part replaces 51553-15D00.

51553-15D01

$5.00

18

LOCK ASSY,STEER | SPARE KEYS FOR THIS LOCK CAN BE ORDERED THROUGH YOUR PARTS COORDINATOR. YOU MUST HAVE THE KEY NUMBER WHICH IS ONLY FOUND ON THE ORIGINAL PLASTIC DOG TAG SUPPLIED WITH THE VEHICLE WHEN NEW. This part replaces 51900-30901.

51900-309V0

$87.06

19

BRACKET, REFLECTOR RH

35956-14D01

Unavailable

20

BRACKET, REFLECTOR LH

35957-14D01

Unavailable
