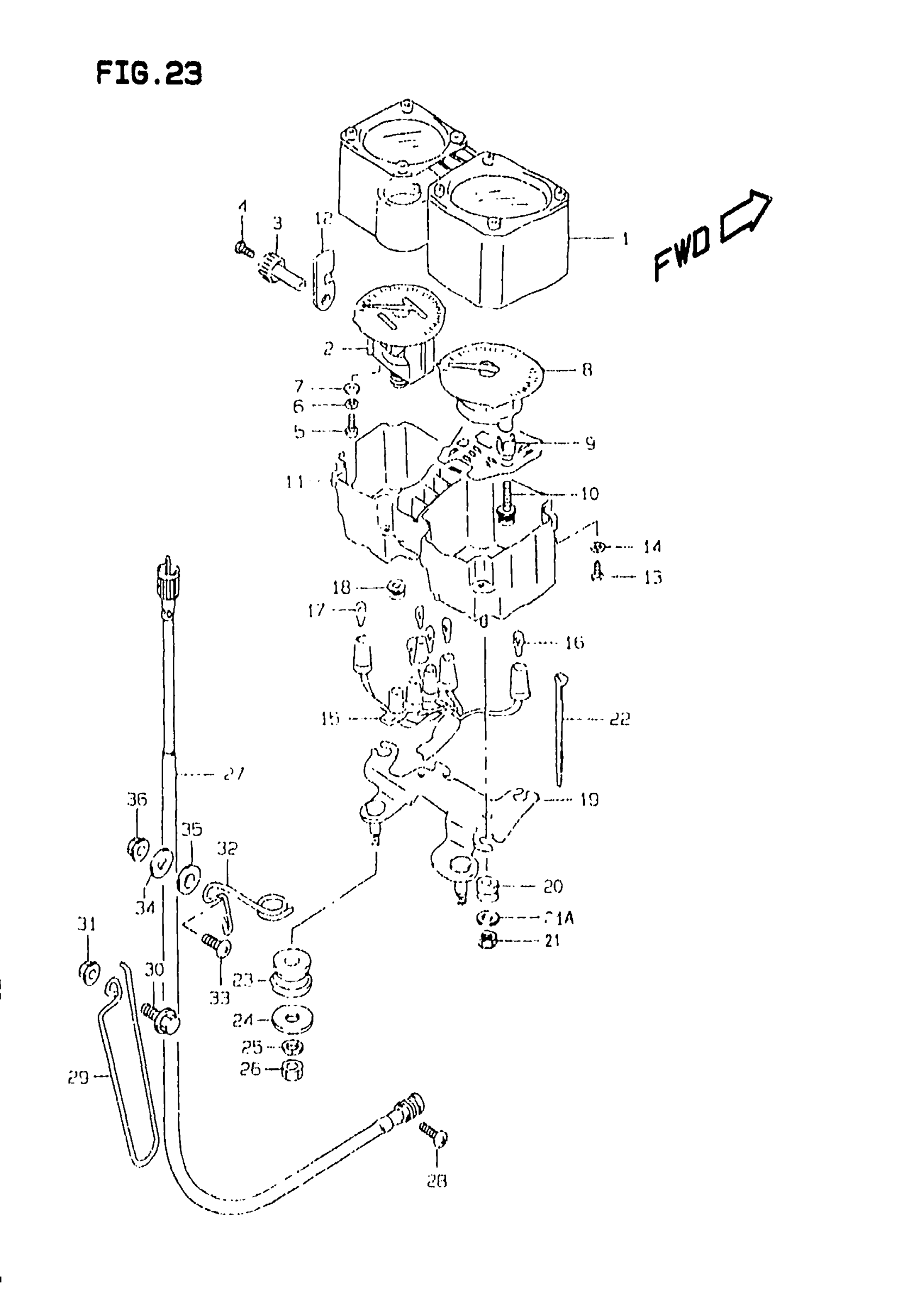

Suzuki DR350SE (1999) SPEEDOMETER Diagram

#

Description
Price

1

HOOD, METER | MODEL V/W This part replaces 34150-44B40.

34150-14D20

Unavailable

1

HOOD,METER | MODEL V/W E28 This part replaces 34150-44B30.

34150-14C10

Unavailable

1

HOOD, METER | MODEL X

34150-14D20

Unavailable

2

SPEEDOMETER (MILE/KILO)

34110-14D00

Unavailable

2

SPEEDOMETER (KILO) | E28

34110-14D10

Unavailable

3

KNOB, TRIP

34124-44B30

$10.80

4

SCREW

34184-12D00

$2.93

5

SCREW This part replaces 02112-03103.

02112-0310B

$2.72

6

LOCK WASHER This part replaces 08321-21033.

08321-2103B

$1.49

7

WASHER This part replaces 08322-01033.

08322-0103B

$2.45

8

TACHOMETER

34210-14D00

Unavailable

9

SPACER

34187-14A00

Unavailable

10

SCREW

02112-74253

Unavailable

11

CASE, METER

34111-44B10

Unavailable

12

GROMMET

34196-14A00

Unavailable

13

SCREW This part replaces 03112-05123.

03111-0512A

$1.49

14

LOCK WASHER This part replaces 08321-01057.

08321-0105A

$1.84

15

SOCKET, METER | MODE V/W This part replaces 34170-14D00.

34170-44B11

Unavailable

15

SOCKET, METER | MODEL X

34170-44B11

Unavailable

16

PULB (12V, 3W)

09471-12085

$5.01

17

BULB (12V,1.7W)

09471-12100

$4.13

18

CAP

34194-14A00

Unavailable

19

BRACKET, METER

34950-14D00

Unavailable

20

.CUSHION

34996-43410

$4.35

21

NUT This part replaces 08310-00053.

08310-0005A

$1.84

21A

WASHER (5.5X16X1.20)

09160-05037

$1.49

22

CLAMP

09404-10417

$2.72

23

CUSHION

34956-31001

$4.37

24

WASHER, EXHAUST SUPPORT | MODEL V This part replaces 09160-08057.

09160-08135

$2.35

24

WASHER (8.5x28x1.60) | MODEL W/X

09160-08135

$2.35

25

LOCK WASHER

09162-08008

$2.06

26

NUT This part replaces 08310-00083.

08310-0008A

$1.84

27

CABLE ASSY,SPEE This part replaces 34910-14D13.

34910-12E01

$48.67

28

.SCREW This part replaces 02112-05163.

02112-0516A

$1.49

29

GUIDE METER CABLE NO.2

34938-14D30

$10.63

30

BOLT (6X20)

09116-06167

$2.19

31

NUT This part replaces 08316-10063.

08316-1006B

$2.50

32

GUIDE, CABLE NO.1

34938-14D21

$8.65

33

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

34

WASHER (6.5X18X1.6)

09160-06109

$1.49

35

WASHER (6.3X16X1) This part replaces 09169-06054.

09169-06053

$1.49

36

NUT This part replaces 08310-00063.

08310-0006A

$1.84
