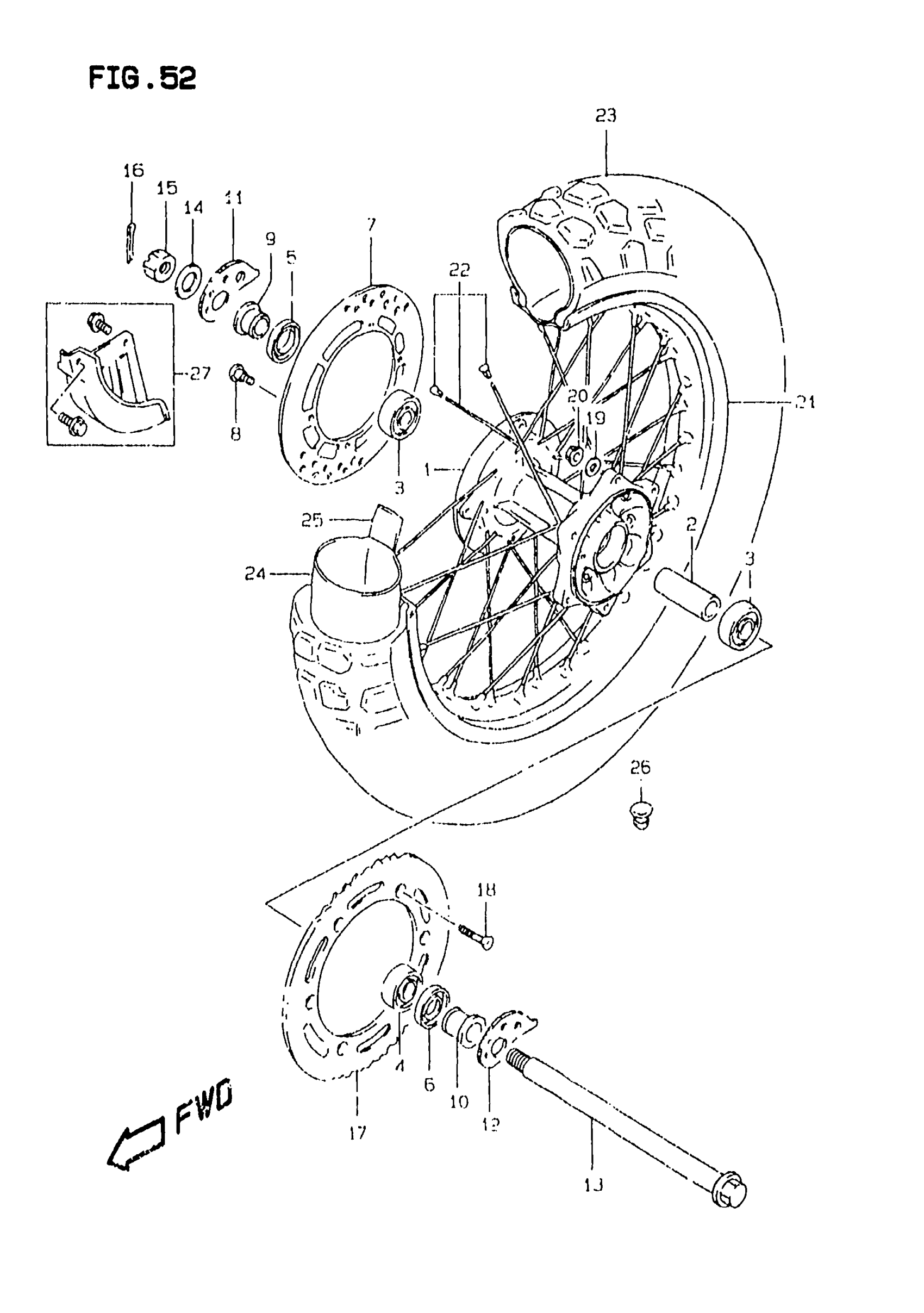

Suzuki DR350SE (1999) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR WHEEL

64111-14D10

Unavailable

2

SPACER, BEARING

64731-14D00

Unavailable

3

BEARING, RH This part replaces 08123-60047.

08133-60047

$25.82

4

BEARING This part replaces 08123-62047.

08123-6204B

$17.41

5

SEAL, OIL, RH (26x42x8)

09282-26001

$15.42

6

OIL SEAL (26X47X5)

09283-26019

$11.61

7

DISC, REAR BRAKE

69211-03D10

Unavailable

8

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

9

SPACER, AXLE RH

64741-14D00

$24.20

10

SPACER, AXLE LH

64751-14D00

Unavailable

11

ADJUSTER, CHAIN RH (T:4.0)

61410-14D10

Unavailable

12

ADJUSTER, CHAIN LH (T:4.0)

61421-14D10

Unavailable

13

AXLE, REAR (L:283.5)

64711-15D50

Unavailable

14

WASHER

09160-19022

$4.90

15

NUT This part replaces 08314-40183.

08314-4018A

$4.64

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

17

SPROCKET, REAR (NT:41)

64511-14E00

$72.18

18

SCREW (8x33.5)

09120-08004

$2.40

19

WASHER This part replaces 08322-01083.

08322-0108A

$1.92

20

NUT

08319-31087

$2.32

21

RIM, REAR WHEEL (2.15x18)

65311-08D00

Unavailable

22

SPOKE ASSY, REAR WHEEL

65320-03D10

Unavailable

23

TIRE, REAR (110/90-18) DUNLOP

65110-15D50

Unavailable

24

TUBE ASSY, WHEEL INNER This part replaces 65200-42AA0.

65200-42AA1

$65.62

25

PROTECTOR, INNER TUBE

65261-15D00

Unavailable

26

CAP, BEAD STPPER

09250-08013

$2.68

27

COVER SET, REAR DISC | OPT, OFF ROAD USE ONLY

69200-28C00

$28.44
