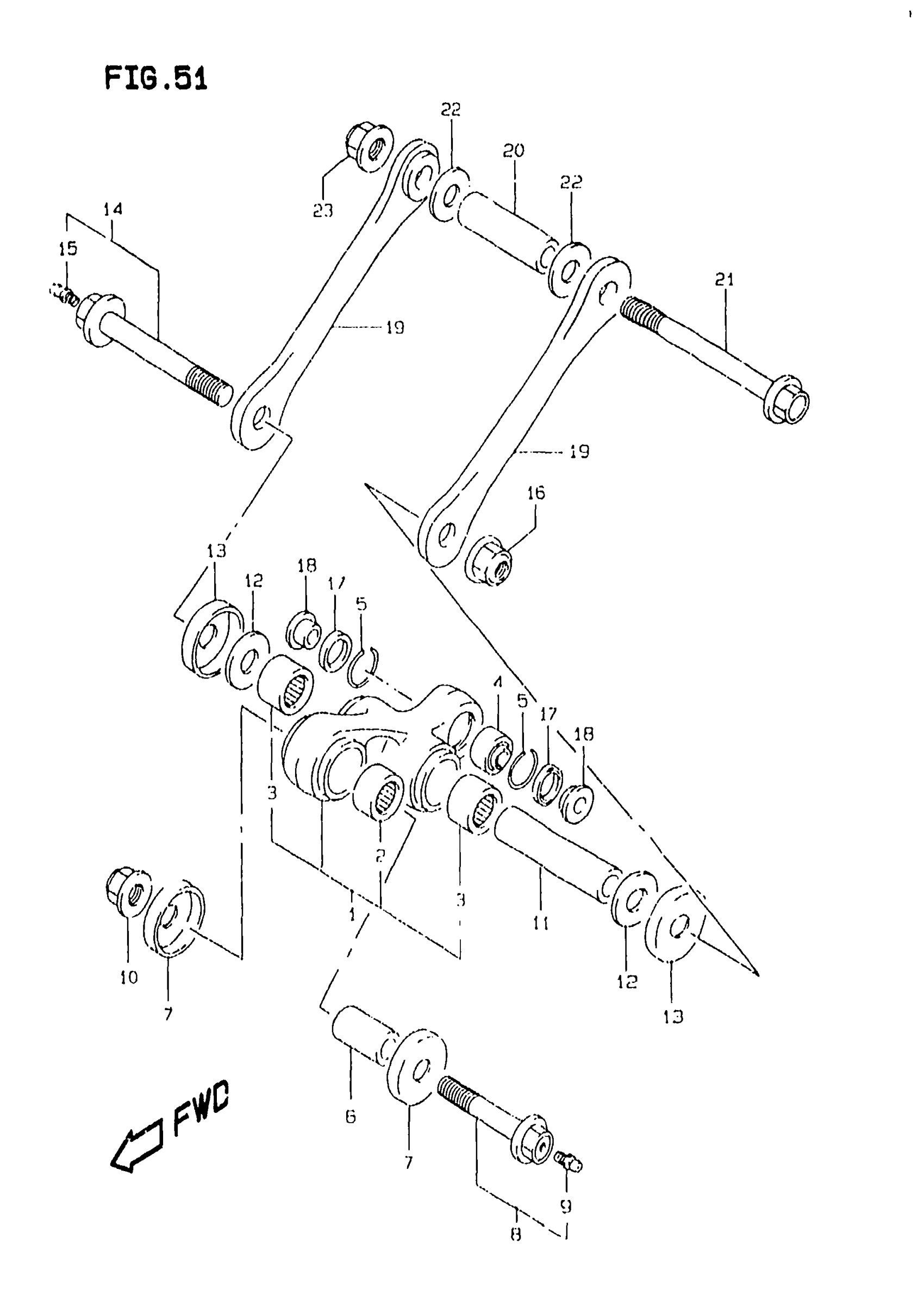

Suzuki DR350SE (1999) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2 - 5

62602-14850

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

BEARING (20X27X23.5)

09263-20071

$25.92

4

BEARING, REAR (10X24X14.5)

62175-00B00

$61.15

5

RING, STOPPER

62657-34A01

$1.99

6

SPACER, FRONT

62317-05D00

$23.07

7

SEAL, DUST This part replaces 62162-28E00.

62162-28E01

$10.69

8

BOLT, FRONT | Includes Item(s) 9

62650-14D00

Unavailable

9

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

10

NUT This part replaces 08319-31128.

08319-3112A

$3.76

11

SPACER, CENTER

62626-14D00

$30.72

12

WASHER

08211-14321

$3.85

13

SEAL This part replaces 62683-27C00.

62683-27C01

Unavailable

14

BOLT, CENTER | Includes Item(s) 15

62620-14D00

Unavailable

15

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

16

NUT This part replaces 08319-31148.

08319-3114A

$9.66

17

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

$3.76

18

SPACER, REAR

62684-27C10

Unavailable

19

ROD, REAR CUSHION

62640-14D00

Unavailable

20

SPACER, ROD

62646-14D00

Unavailable

21

BOLT, ROD

62622-14D10

Unavailable

22

WASHER

08211-14323

$3.85

23

NUT This part replaces 08319-31148.

08319-3114A

$9.66
