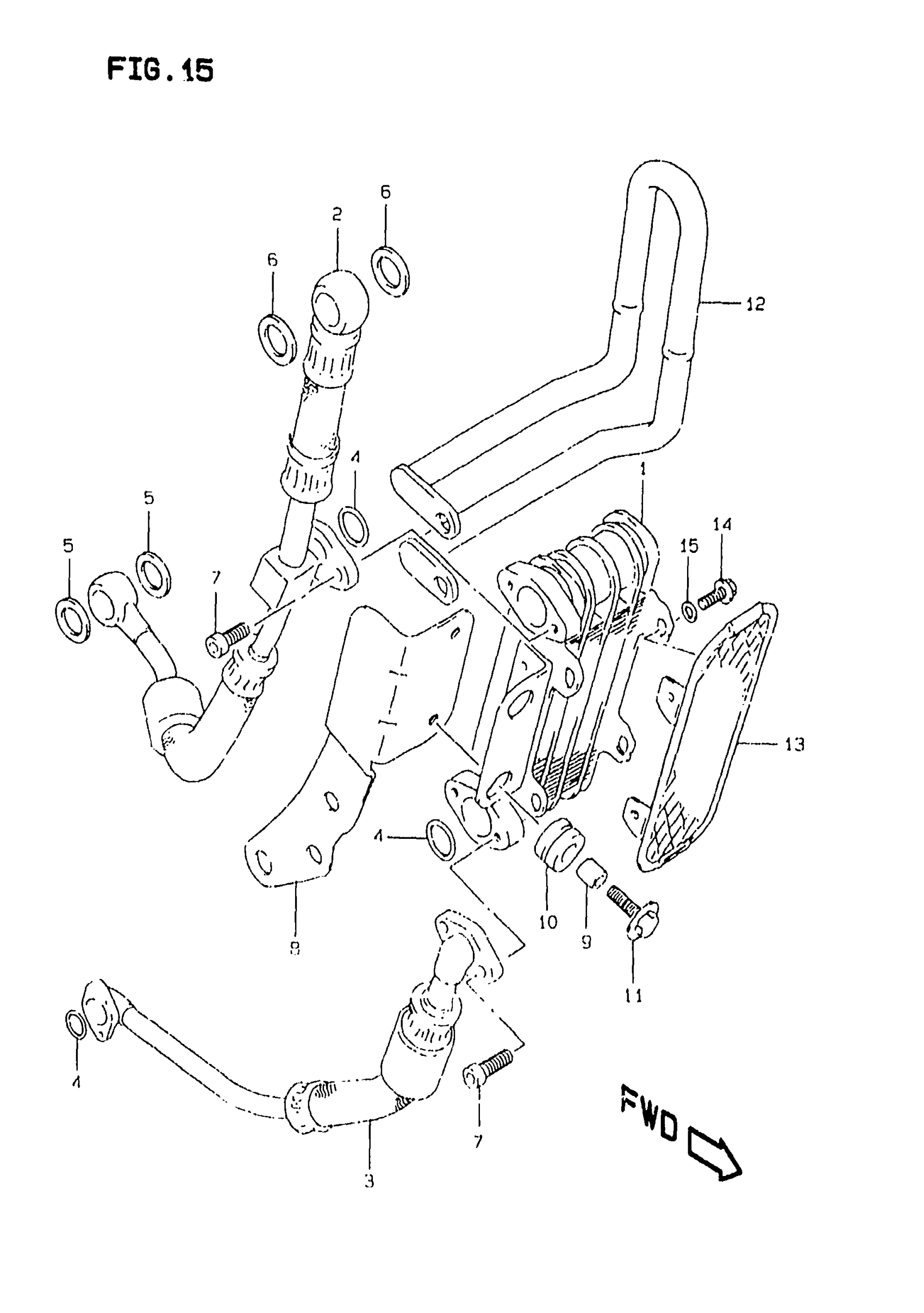

Suzuki DR350SE (1999) OIL COOLER (OPTIONAL Diagram

#

Description
Price

0

COOLER SET, OIL | Includes Item(s) 1 - 15

16000-14820

Unavailable

1

OIL COOLER

16600-14D00

Unavailable

2

HOSE, OIL COOLER, UPPER

16450-14D00

Unavailable

3

HOSE, OIL COOLER, LOWER

16490-14D00

Unavailable

4

O RING (ID:12.3,D:2.4)

09280-12008

$2.76

5

GASKET (12x17.0x1.0)

09168-12017

$1.95

6

GASKET (16x22x2) | MODEL V/W

09168-16003

$1.91

6

GASKET (10x22x2) | MODEL X

09168-16002

$1.91

7

BOLT This part replaces 07130-06163.

07130-0616B

$2.39

8

BRACKET

16620-14D00

Unavailable

9

SPACER

09180-06310

$1.91

10

CUSHION

09320-10015

$2.54

11

BOLT (6X20) This part replaces 09116-06143.

09116-06115

$1.97

12

GUARD, OIL COOLER

16640-14D00

Unavailable

13

BUMPER, OIL COOLER

16650-14D00

Unavailable

14

BOLT This part replaces 01547-05103.

01547-0510B

$2.97

15

LOCK WASHER This part replaces 08321-01053.

08321-0105A

$1.84
