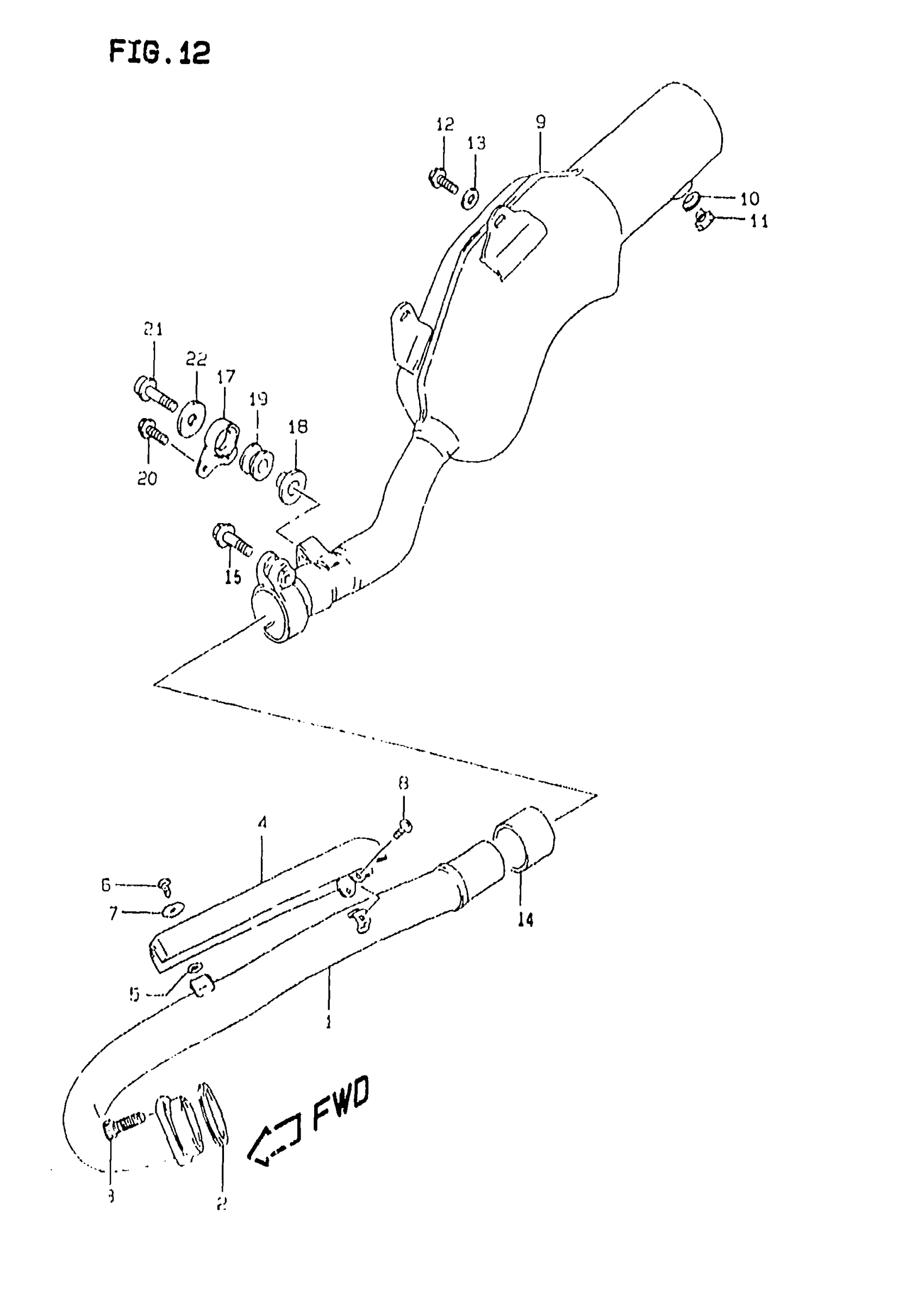

Suzuki DR350SE (1999) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST

14150-14E00

Unavailable

2

GASKET

14181-40C00

$7.22

3

BOLT This part replaces 07130-08253.

07130-0825B

$3.37

4

COVER, EXHAUST PIPE

14180-14D10

$43.27

5

GASKET

09168-06120

$2.92

6

SCREW (6X10)

09139-06076

$2.42

7

WASHER (6.5X18X1)

09160-06056

$1.72

8

SCREW This part replaces 02142-05083.

02142-0508A

$1.49

9

MUFFLER ASSY

14310-14D73-H01

Unavailable

10

GASKET

09168-12002

$1.59

11

PLUG, DRAIN

09247-12103

$2.84

12

BOLT (8X20)

09103-08286

$3.78

13

WASHER (8.5X19X2.3) This part replaces 09160-08053.

09160-08039

$2.03

14

CONNECTOR, MUF This part replaces 14771-13E00.

14771-13E10

$15.57

15

BOLT (8X35) This part replaces 01550-08353.

01550-0835A

$3.04

16

DAMPER, JOINT

14770-14D01

$25.33

17

SPACER

09180-08151

$5.18

18

CUSHION

09320-12043

$7.98

19

BOLT (6X12) This part replaces 09103-06083.

09103-06285

$1.97

20

BOLT (8X30)

09103-08197

$1.70

21

WASHER, EXHAUST SUPPORT | MODEL V This part replaces 09160-08057.

09160-08135

$2.35

21

WASHER (8.5x28x1.6) | MODEL W/X

09160-08135

$2.35
