1999 Suzuki DR350SE Fuel Tank Diagram

← All diagrams

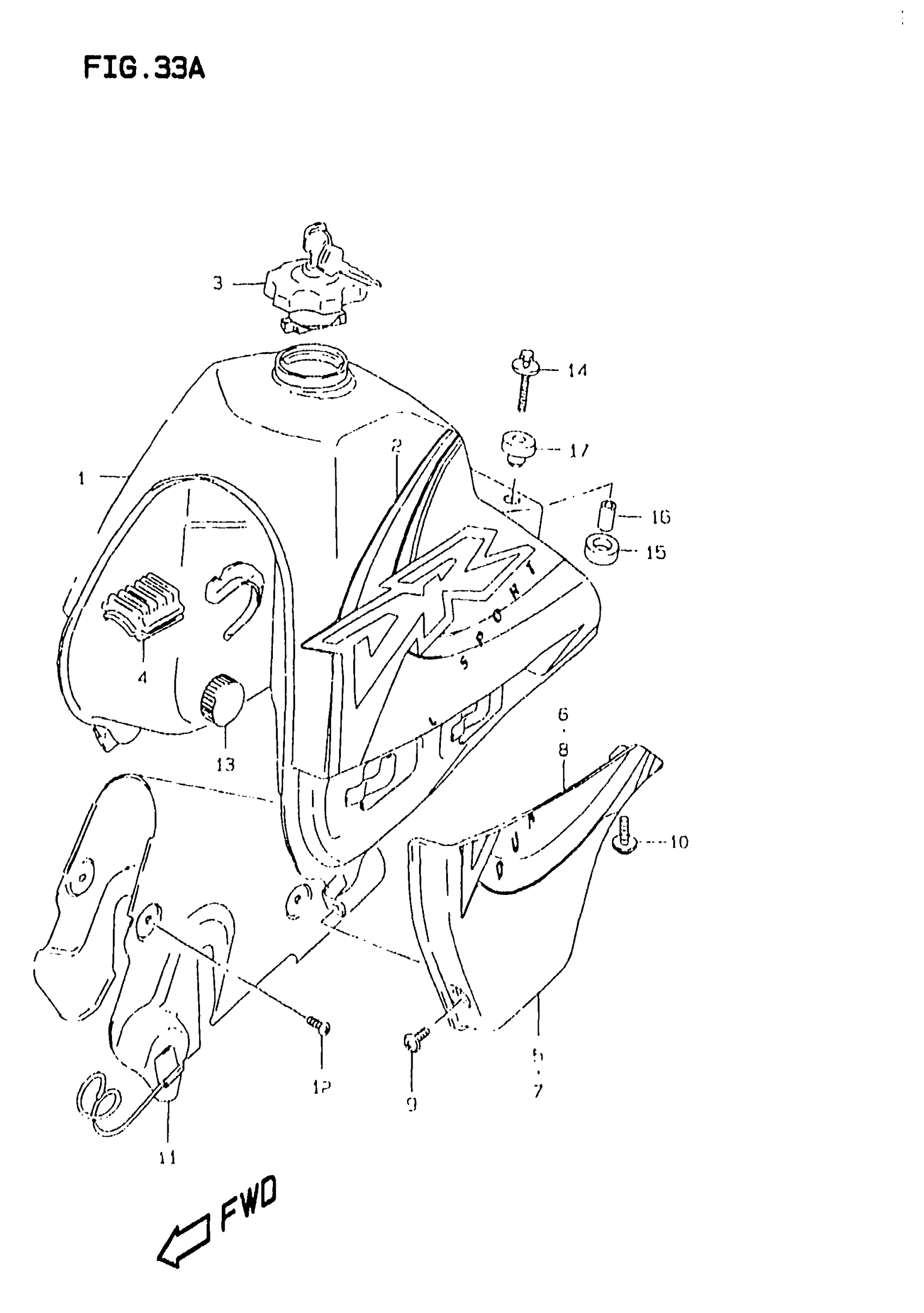

Find the part on the Fuel Tank diagram for your 1999 Suzuki DR350SE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1999 Suzuki DR350SE Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK ASSY, FUEL (WHITE)

49100-14EB0-30H

1
Out of stock

1

TANK ASSY, FUEL (WHITE) | E33; Includes Item(s) 2

49100-14ED0-30H

1
Out of stock

2

TANK SET, FUEL TANK

68110-14E80-Y8P

1
Out of stock

3

CAP SET, FUEL TANK

44200-03811

1
Out of stock

3

CAP SET,FUEL TA | E33 This part replaces 44200-05820.

44200-05822

1
Out of stock

4

CUSHION, UPPER

44541-15D01

1
Out of stock

5

COVER, FUEL TANK RH (WHITE)

44171-15D00-30H

1
Out of stock

6

TAPE, RH

68115-14E00-Y9S

1
Out of stock

7

COVER, FUEL TANK LH (WHITE)

44181-15D00-30H

1
Out of stock

8

TAPE, LH

68125-14E00-Y9S

1
Out of stock

9

SCREW, FRONT

02142-06107

—
Out of stock

10

SCREW

09136-06002

2
Out of stock

11

HEAT SHIELD, FUEL TANK

49131-14D20

1
Out of stock

11

HEAT SHIELD, FUEL TANK | E33

49130-15D30

1
Out of stock

12

BOLT

01560-05103

4
Out of stock

13

CUSHION, FRONT

09329-10016

2
Out of stock

14

BOLT, REAR

09116-06172

2
Out of stock

15

CUSHION, LOWER

09320-14013

2
Out of stock

16

SPACER

09180-06271

2
Out of stock

17

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock
