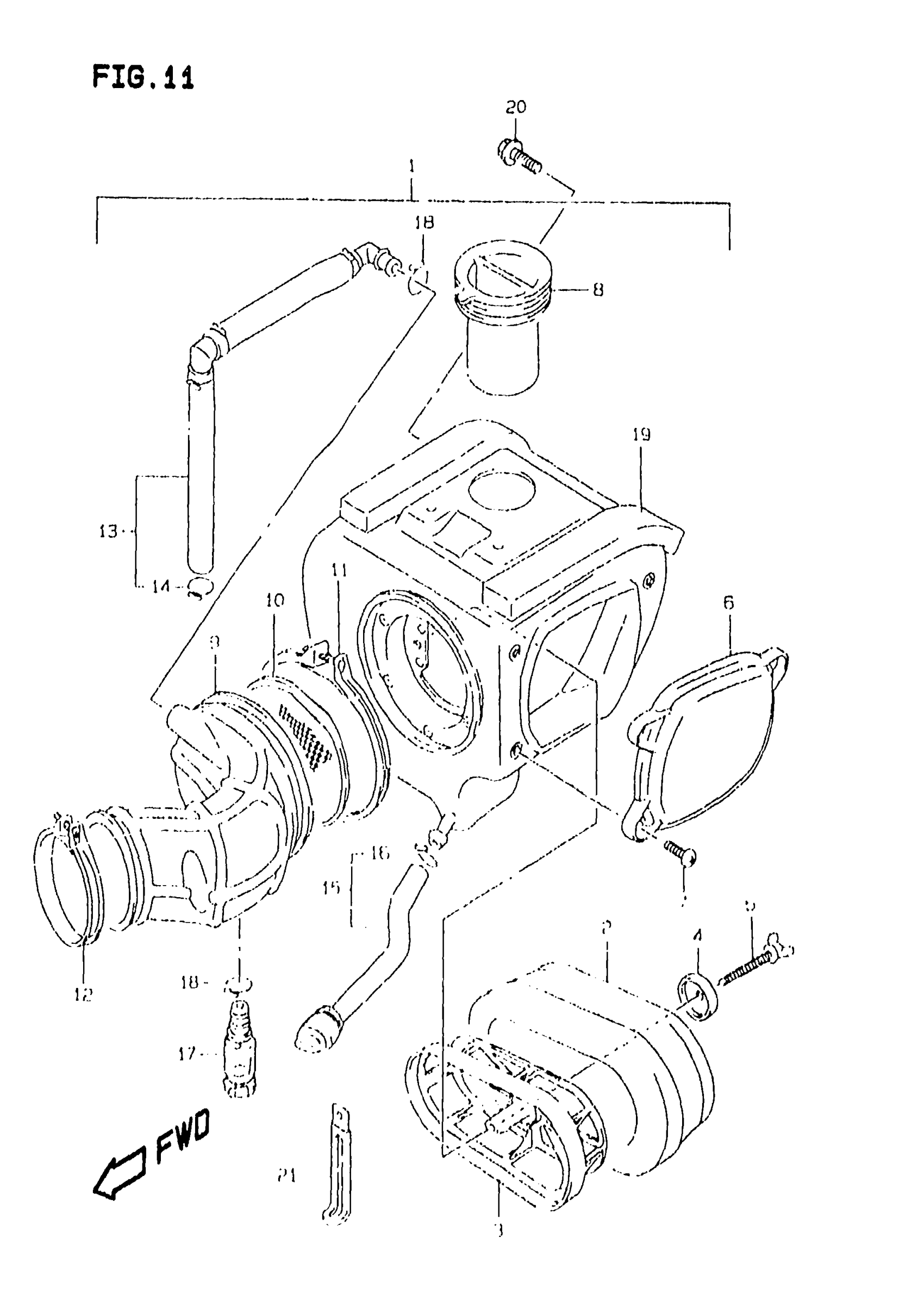

Suzuki DR350SE (1999) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 19

13700-14D40

Unavailable

2

FILTER

13780-14D02

$40.55

3

HOLDER, FILTER

13791-14D00

$19.86

4

WASHER

13792-13A01

$3.97

5

BOLT, WING

13831-02B00

$5.46

6

CAP, AIR CLEANER

13740-14D00

$23.30

7

SCREW

02142-05207

$1.43

8

TUBE,INLET This part replaces 13891-14D10.

13891-14D11

$23.47

9

TUBE,OUTLET This part replaces 13881-14D30.

13881-14D31

$83.00

10

TRAP, FRAME

13810-14D02

$10.64

11

.CLAMP, OUTLET TUBE

13826-14D01

$8.54

12

CLAMP

09402-66208

$5.03

13

TUBE, BREATHER

13850-14D41

Unavailable

14

CLIP

09401-14301

$2.17

15

TUBE, DRAIN, A

13870-14D20

Unavailable

16

CLIP

09401-14301

$2.17

17

TUBE,DRAIN This part replaces 13870-11458.

13870-11459

$14.60

18

CLIP

09401-14301

$2.17

19

CUSHION

13736-14D20

Unavailable

20

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

21

CLAMP (L:80) | MODEL V This part replaces 09404-08419.

09404-08422

$2.88

21

CLAMP | MODEL W/X This part replaces 09404-08207.

09404-08212

$1.63
