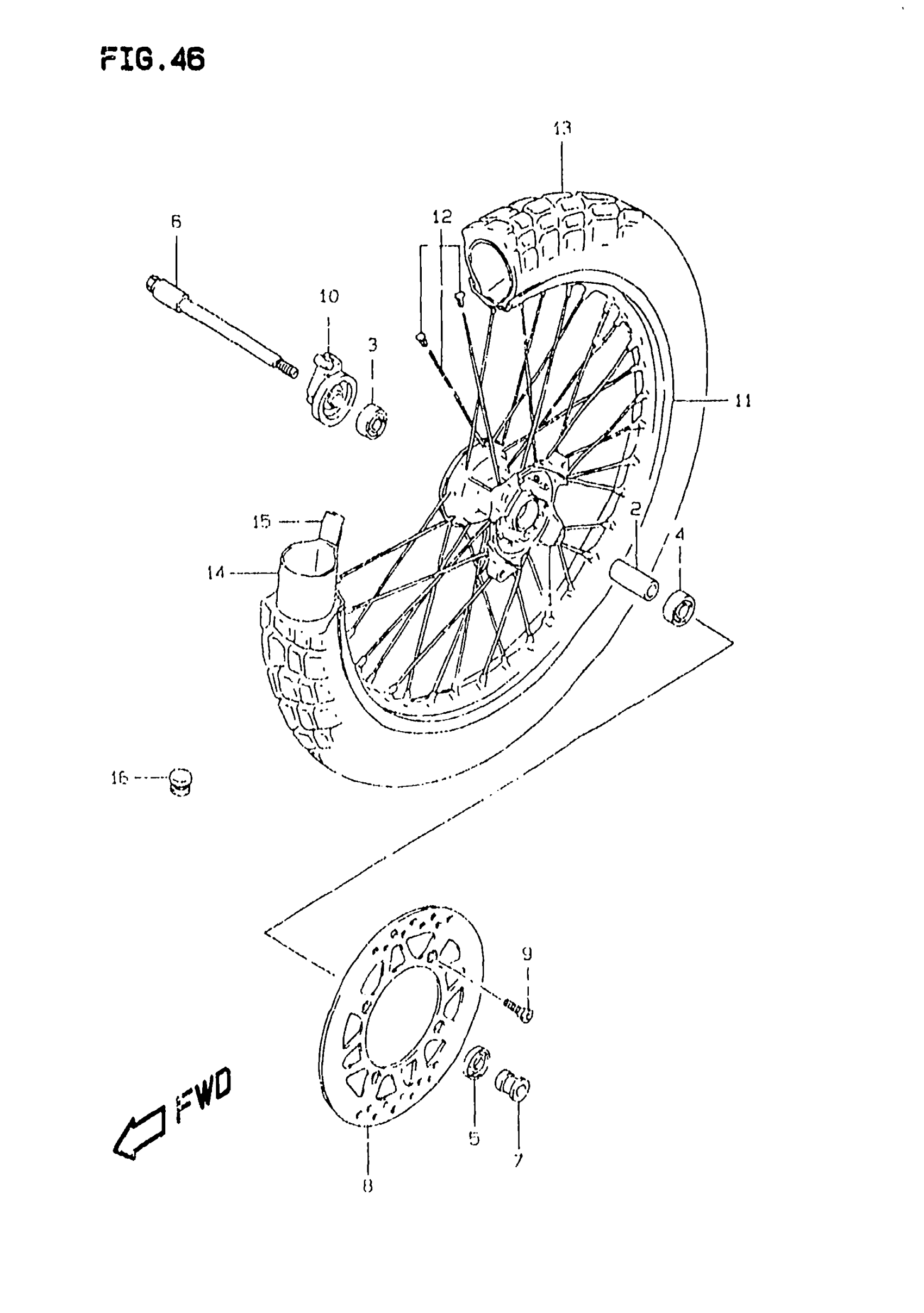

Suzuki DR350SE (1999) FRONT WHEEL (MODEL V) Diagram

#

Description
Price

1

HUB, FRONT WHEEL

54111-15D00

Unavailable

2

SPACER, HUB BEARING

54731-44B00

Unavailable

3

BEARING, RH

08113-62027

$14.40

4

BEARING, LH

08123-62027

$18.57

5

SEAL, HUB LH (22x35x5)

09284-22004

$9.73

6

AXLE, FRONT

54711-14D00

Unavailable

7

SPACER, AXLE LH

54751-14D00

Unavailable

8

DISC, FRONT BRAKE

59221-14D00

Unavailable

9

BOLT This part replaces 59421-03A10.

09106-08155

$3.76

10

BOX ASSY, SPEEDOMETER GEAR

54600-14D00

Unavailable

11

RIM, FRONT WHEEL (1.60x21)

55311-08D01

Unavailable

12

SPOKE ASSY, FRONT WHEEL

55320-44B00

Unavailable

13

TIRE, FRONT (80/100-21)

55110-15D50

Unavailable

14

TIRE, FRONT This part replaces 55200-16510.

55200-16511

$36.73

15

PROTECTOR, INNER TUBE

55261-14540

$3.83

16

CAP, BEAD STOPPER

09250-08013

$2.68
