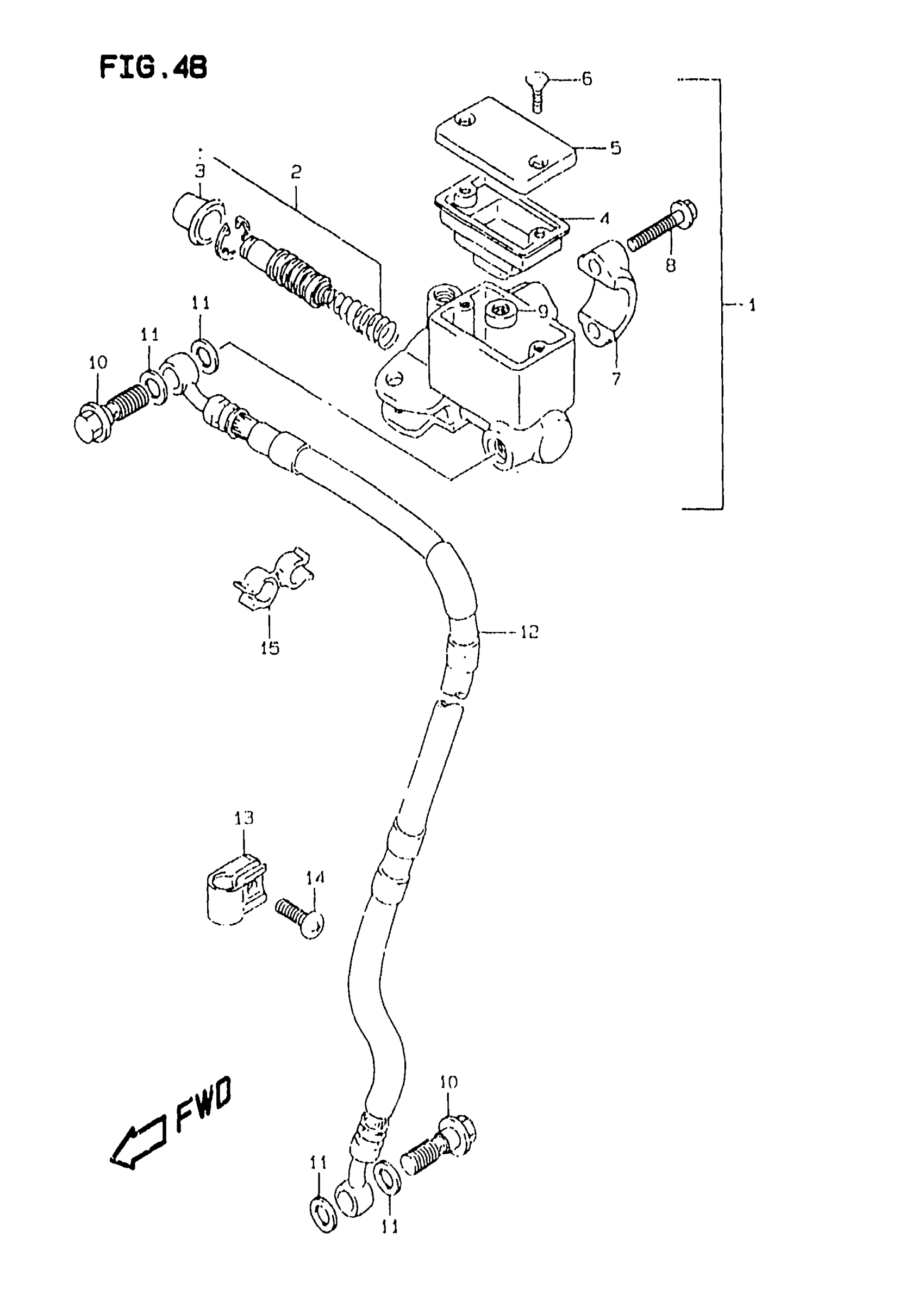

Suzuki DR350SE (1999) FRONT MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER | Includes Item(s) 2 - 9 This part replaces 59600-03D00.

59600-03D01

$295.20

2

PISTON & CUP SET

69600-38810

$51.24

3

BOOT

59666-44300

$5.80

4

DIAPHRAGM

59667-44B00

$9.78

5

CAP

59669-03D00

$32.30

6

.SCREW This part replaces 02122-04123.

02122-0412A

$1.93

7

HOLDER

59671-03D00

$26.23

8

BOLT

59675-27C00

$3.54

9

SEPARATOR

59748-14500

$11.87

10

UNION | MODEL VMODEL W/X This part replaces 09360-10039.

09360-10061

$6.43

10

UNION | MODEL W/X This part replaces 09360-10040.

09360-10062

$6.43

11

WASHER (10X15X1.5)

09161-10009

$1.84

12

HOSE, FRONT BRAKE | MODEL V

59480-15D01

Unavailable

12

HOSE, FRONT BRAKE | MODEL W/X

59480-14D40

Unavailable

13

CLAMP BRAKE HOSE This part replaces 58621-07A10.

58621-07A20

$4.07

14

SCREW This part replaces 02142-06163.

02142-0616A

$1.49

15

CLIP

09408-00145

Unavailable
