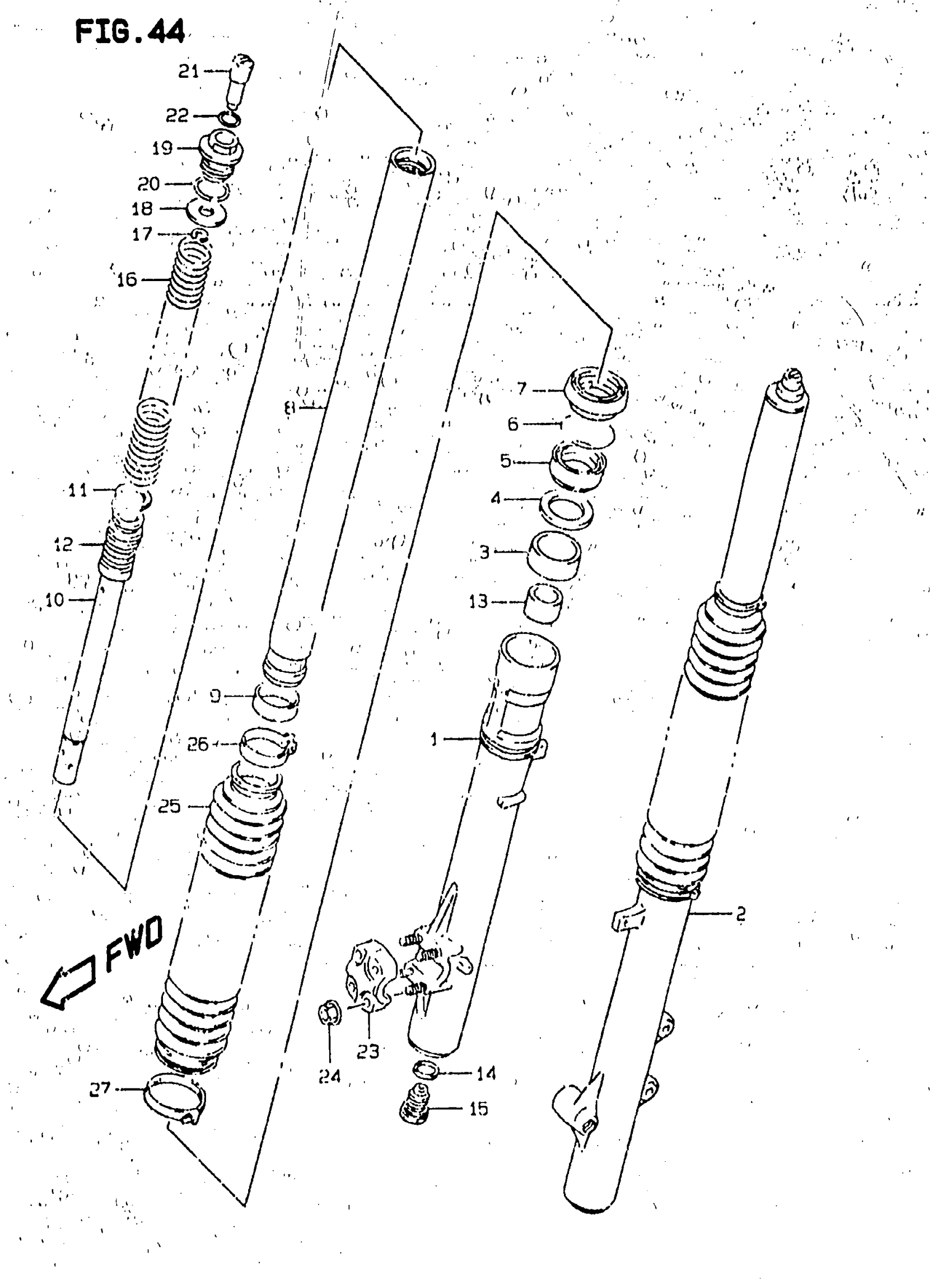

Suzuki DR350SE (1999) FRONT DAMPER (MODEL V) Diagram

#

Description
Price

0

DAMPER ASSY, FRONT FORK RH

51103-14EA0

Unavailable

0

DAMPER ASSY, FRONT FORK LH | Includes Item(s) 1 - 22

51104-14EA0

Unavailable

1

TUBE, OUTER RH

51130-14EA0

Unavailable

2

TUBE, OUTER LH

51140-14EA0

Unavailable

3

BUSH, GUIDE

51152-07D00

Unavailable

4

.SPACER, SEAL

51168-17C00

$6.28

5

SEAL,OIL

51153-14D00

$22.96

6

RING, STOPPER

51556-38B00

$7.22

7

SEAL, DUST

51173-14D00

$30.53

8

TUBE, INNER

51110-14D40

Unavailable

9

BUSH, SLIDE

51121-14D00

Unavailable

10

ROD, FRONT DAMPER

51190-14D40

Unavailable

11

RING, PISTON

51196-14D00

Unavailable

12

SPRING, REBOUND

51177-14D00

$13.07

13

PIECE, OIL LOCK

51195-14D00

Unavailable

14

GASKET

51148-14D00

Unavailable

15

BOLT, PIECE

51170-14D40

Unavailable

16

SPRING, FRONT

51171-14D40

Unavailable

17

SPRING

51788-11420

Unavailable

18

SEAT, SPRING

51186-12C00

$7.53

19

BOLT, FORK

51189-14D00

Unavailable

20

O PING

51117-17C00

$5.95

21

ADJUSTER, SPRING

51185-14D00

Unavailable

22

O RING (D:2.5,ID:13.8) This part replaces 51187-14D00.

09280-14011

$4.77

23

HOLDER, AXLE RH

51132-15D40

Unavailable

24

NUT, AXLE HOLDER

51168-14D00

Unavailable

25

BOOT This part replaces 51571-14D00-163.

51571-14D01-163

$58.21

26

BAND, BOOT UPPER

51575-14D00

$12.57

27

BAND, BOOT LOWER

51576-42AA0

$13.28
