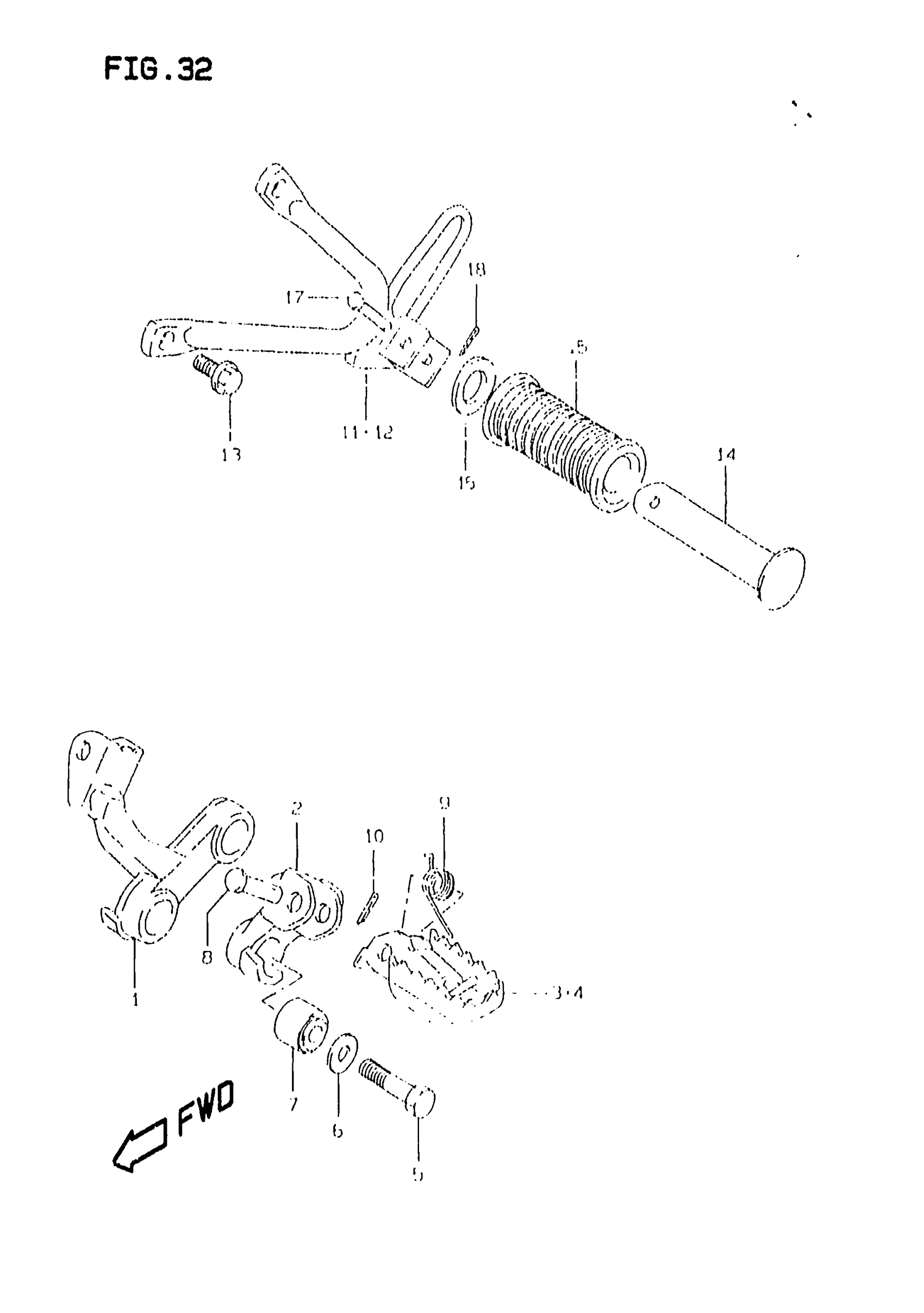

Suzuki DR350SE (1999) FOOTREST Diagram

#

Description
Price

1

BRACKET, FOOTREST RH (BLACK)

43510-15D00-019

Unavailable

2

BRACKET, FOOTREST LH (BLACK)

43520-15D00-019

Unavailable

3

FOOTREST,FRONT, | MODEL VMODEL W/X This part replaces 43550-14D10-019.

43550-14D10

Unavailable

4

FOOTREST, FRONT LH | MODEL V This part replaces 43560-14D10-019.

43560-14D10

Unavailable

4

FOOTREST, FRONT LH | MODEL W/X

43560-14D10

Unavailable

5

BOLT, FOOTREST FRONT

09100-10283

Unavailable

6

WASHER,10.5X22X This part replaces 09160-10119.

09160-10143

$2.34

7

BUSH

09319-10033

$6.83

8

PIN

09200-10013

$2.66

9

SPRING

09448-15004

$2.34

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

BRACKET, PILLION RH (BLACK)

43650-14D00-019

Unavailable

12

BRACKET, PILLION LH (BLACK)

43750-14D00-019

Unavailable

13

BOLT This part replaces 01550-08203.

01550-0820A

$2.23

14

BAR, PILLION

43610-03001

$6.52

15

RUBBER, PILLION FOOTREST This part replaces 43612-33200.

43612-33210

$5.83

16

WASHER | MODEL V This part replaces 09160-19006.

09160-19024

$2.65

16

WASHER | MODEL W/X

09160-19024

$2.65

17

PIN

09200-06033

$2.63

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
