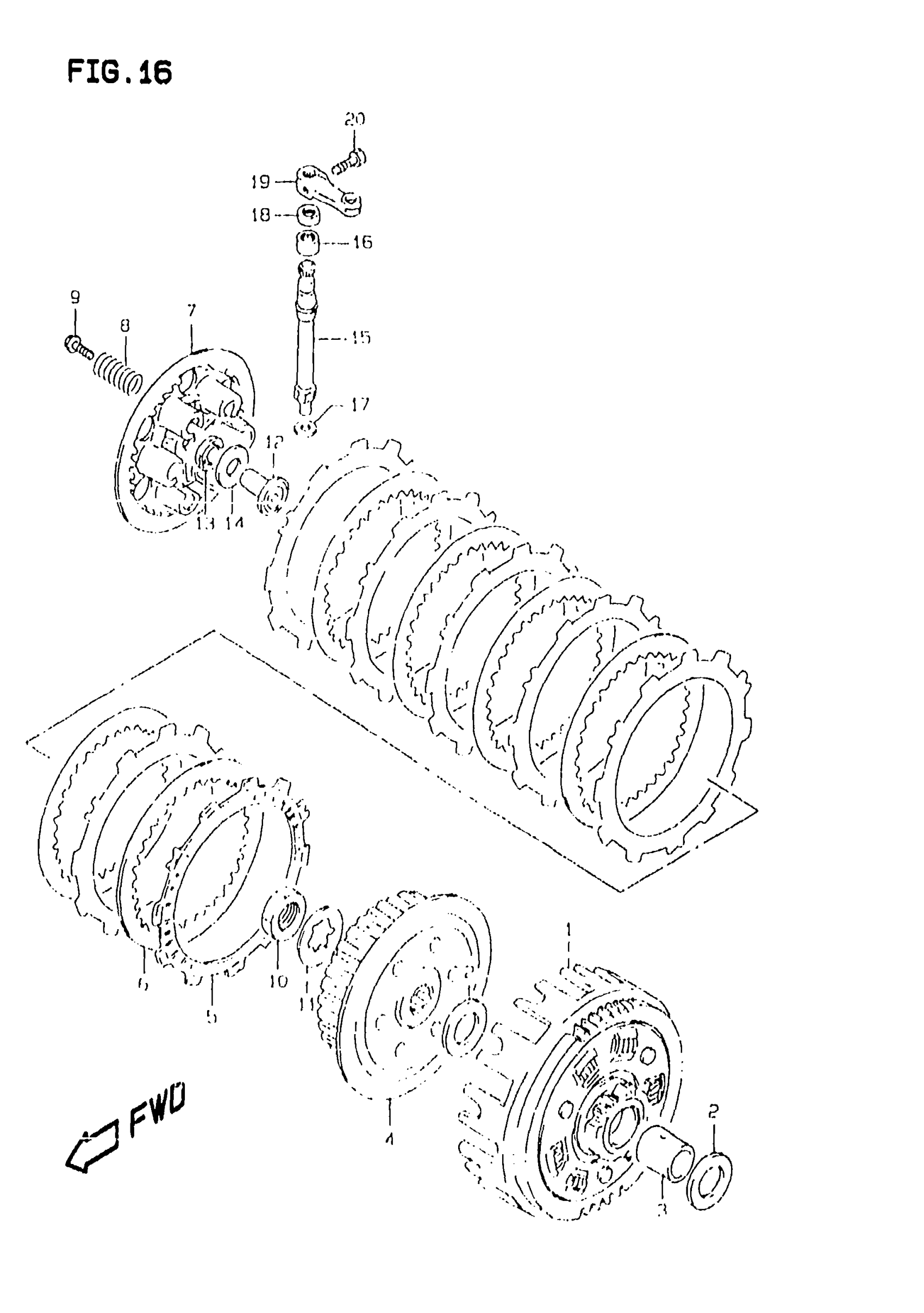

Suzuki DR350SE (1999) CLUTCH Diagram

#

Description
Price

1

GEAR ASSY, PRIMARY DRIVEN | NT:64/15

21200-15D21

Unavailable

2

WASHER

08211-20363

$3.18

3

SPACER (20x25x29)

09180-20109

$14.74

4

HUB, SLEEVE

21410-14D00

$131.98

5

PLATE, DRIVE (T:2.8)

21441-12D01

$20.64

6

PLATE,CLUTCH DRIVEN (T:1.6)

21451-28C31

$11.81

7

DISC, PRESSURE

21462-00B02

$57.67

8

SPRING

09440-15014

$3.37

9

BOLT (5X16) | MODEL V/W This part replaces 09116-05003.

09116-05020

$2.03

9

BOLT (5x16) | MODEL X

09116-05020

$2.03

10

NUT

09140-20001

$3.37

11

LOCK WASHER This part replaces 09167-20006.

09167-20009

$2.03

12

RACK,CLUTCH RELEASE | .23165-00B01

23165-44B01

$24.92

13

THRUST BEARING (10X24X2.0)

09263-10016

$10.20

14

WASHER, BRG THR

08211-10241

$2.38

15

PINION (NT:12)

23261-14D02

$59.07

16

BEARING (12X16X10)

09263-12024

$12.67

17

WASHER (8X14X1.0)

09181-08139

$1.91

18

OIL SEAL

09285-10004

$3.37

19

ARM, CLUTCH RELEASE This part replaces 23271-20901.

23271-20902

$29.60

20

BOLT This part replaces 01500-06163.

01500-0616A

$1.78
